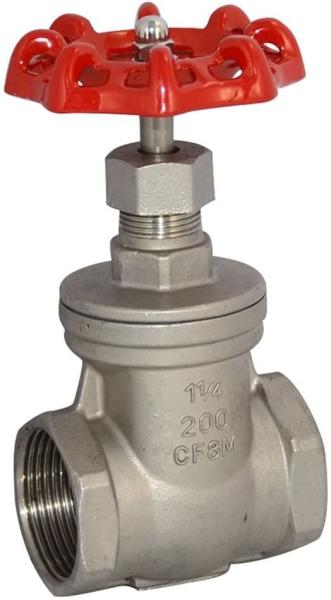

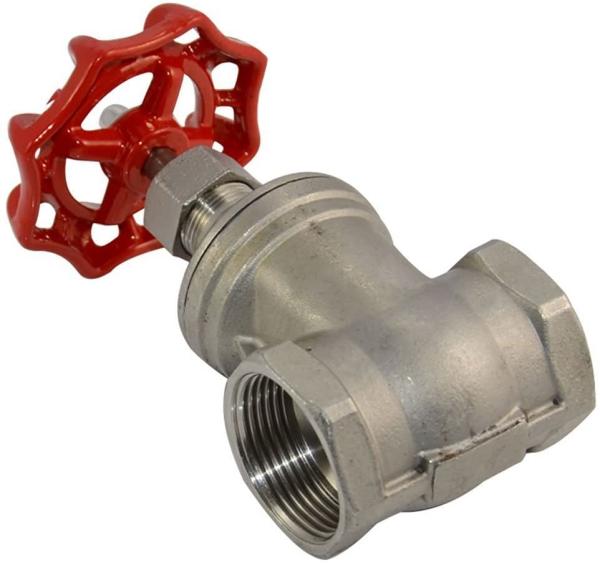

1-1/4 200PSI WOG Heavy Duty Gate Valve NPT Female SS316 CF8M
1-1/4 200PSI WOG Heavy Duty Gate Valve NPT Female SS316 CF8M
1-1/4 200PSI WOG Heavy Duty Gate Valve NPT Female SS316 CF8M
1-1/4 200PSI WOG Heavy Duty Gate Valve NPT Female SS316 CF8M
Specifications
Brand Name :
TOBO
Model Number :
Gate Valve
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pc
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000pcs/month
Delivery Time :
3-5 days
Packaging Details :
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Name :
Gate Valve
Material :
Stainless Steel
Body :
CF8M
End Connection :
FNPT
Applications :
Air, Fuel gas, Feedwater, Steam
Pressure :
200PSI
Temperature :
High Pressure Temperature
Size :
1-1/4"
Description

1-1/4" 200PSI Heavy Duty Gate Valve NPT Female SS316 CF8M

Quick Details

Material Alloy Steel
Brand Megairon
Exterior Finish Stainless Steel
Inlet Connection Type National Pipe Tapered
Outlet Connection Type FNPT

About this item

  • Top-mounted hand wheel for lowering and lifting the gate

  • 350 Degrees 1-1/4 Inch NPT,The Item includes PTFE internal packing to help prevent leaking,200 PSI Stainless Steel 316

  • Stainless Steel gate valve has female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes

  • Integral Seat Solid Wedge Disc,Inside Screw and Screwed Bonnet. Non- Rising Stem Screwed Cap,Non-rising stem stays fixed in place when gate is raised or lowered for low clearance use

  • It has a solid wedge gate and screwed bonnet, and its Stainless Steel construction provides corrosion resistance, ductility at high temperatures, and low magnetic permeability

Valve Type

CS / SS GATE VALVE - FL / BW

Design Std

BS EN ISO 10434 [BS 1414] / API 600 / API 602 / API 603/ASME B16.34

Size Range

40 DN to 400 DN [1 1/2” to 16”]

Body

[CS - ASTM A 216 Gr. WCB] [SS - ASTM A 351 Gr.CF8 / CF8M]

Trim

AISI 410 / 304 / 316

Seat / Wedge

13% Cr. Steel / AISI 410 / 304 / 316

Design Features

Bolted Bonnet, OS & YT, HW & Gear operated

Prorating

ASME - Class 150 / 300 / 600

Face to Face

ASME B 16.10 / EN 558 -1 / API 6D

End Connection

Flanged

ASME B16.5, CLASS 150 / 300 / 600

Butt weld

ASME B16.25

Testing Std.

BS EN 12266 - 1 [BS 6755-1] / API 598

Optional

Lantern Ring / indicator & Locking Device/ Renewable Seat / Stellite Hard facing / Jacketed Provision / RTJ Flanges / By Pass Arrangement / Higher Sizes / Special MOC: Austenitic and Duplex Stainless Steels

Types of Gate Valves

There are three ways to classify the gate valve.

  1. Types of Disk

    1. Solid taper wedge

    2. Flexible wedge

    3. Split wedge or Parallel disks Valve

  2. Types of Body Bonnet Joint

    1. Screwed Bonnet

    2. Bolted-Bonnet

    3. Welded-Bonnet

    4. Pressure-Seal Bonnet

  3. Types of Stem movement

    1. Rising Stem or OS & Y Type (Outside Stem and Screw Type)

    2. Non-rising Stem type

Gate Valve Applications

  • Gate valves are used in almost all fluid services such as air, fuel gas, feedwater, steam, lube oil, hydrocarbon, and all most any services.

  • Some special gate valve is used in slurry and powder product also such as knife gate valve

Advantages of Gate Valve

  • Gate valve provides good

  • Pressure drop during operation is very less.

  • Most of the gate valve can be used as bi-directional

  • They are suitable for high pressure and temperature application and required less maintenance

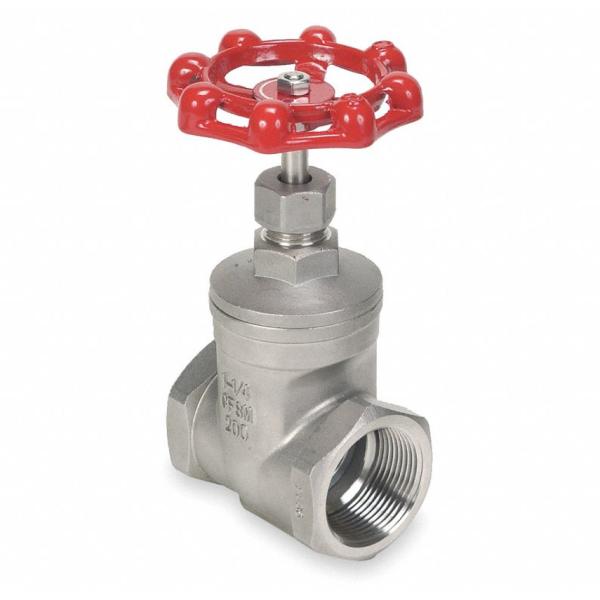

1-1/4
