Galvanized Steel Mining Screen Mesh Sheet / Roll 1 - 5M Width Anti - Corrosion

Specifications

Brand Name :

BS•EVER

Model Number :

LOCK CRIMP TYPE

Certification :

ISO 9001:2015

Place of Origin :

CHINA

MOQ :

15 PCS

Price :

BE NEGOTIATED

Payment Terms :

T/T, Western Union, MoneyGram, L/C

Supply Ability :

10 ROLL/DAY

Delivery Time :

DEPNEDS ON ORDERED QUANTITY

Packaging Details :

IN BULK OR ON PALLET

Material :

Carbon Steel/Stainless Steel

Technique :

Lock Crimp

Hole Shape :

Square Hole &Rectangle Hole

Width :

1-5M

Surface treatment :

Spray paint or oil paint or Epoxy painted

Sample :

Can prepare

Description

LOCK-CRIMP TYPE,SS/Carbon Steel/ Galvanized Steel crimped wire mesh with Square /Rectangle Hole In Sheet/Roll

1. This woven wire type is used only in coarse specifications to maintain the accuracy of weave throughout screen life, where the opening is large than wire diameter.

Name	crimped wire mesh,woven mesh for breeding pigs,separation screen,vibrating screen mesh,quarry screen,mine screen mesh.
Mesh counts	1-24 mesh	Wire diameter	40-600 wire
Width	1 m - 5 m.	Technique	Woven
Material	stainless steel,carbon steel,high tensile steel and galvanized steel	Features	heat,acid,alkali,wear
Rectangle opening wire mesh used	breeding pigs for pig breeding machine used as floor mesh	Square opening crimped wire mesh used	protection mesh fence,quarry,chemical,sifting,pharma,BBQ wire mesh and so on.

2.For light to medium wire in relation to screen opening size. Wire is locked in place for long wear and accurate screen openings for the life of the screen. This specification is also referred to as "Scalping Weave". Generally used in extremely heavy screen cloths and those with relatively small openings

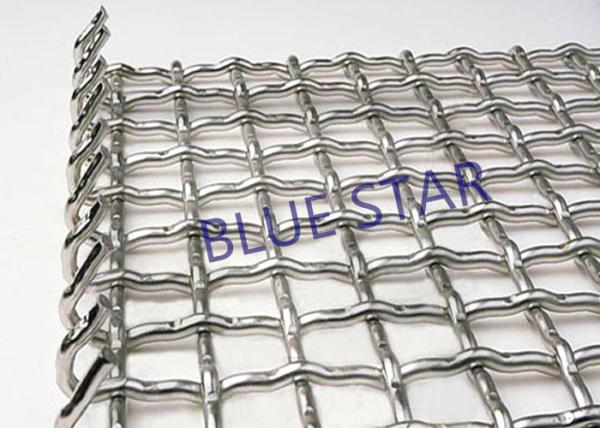

3. Weaving Pattern &Hook Types

4.Specification

Light to Medium duty Specification
Wire Gauge (SWG)	Wire Diameter (mm)	Mesh	Opening (mm)	Weight (kg/m² )
14	2.0	21	1	4.2
8	4.05	18	1	15
25	0.50	20	0.61	2.6
23	0.61	18	0.8	3.4
24	0.55	16	0.1	2.5
24	0.55	14	0.12	4
22	0.71	12	0.14	2.94
19	1	2.3	0.18	1.45
6	4.8	1.2	2	20
6	4.8	1	2	20
6	4.8	0.7	3	14
14	2.0	5.08	0.3	12
14	2.0	2.1	1	2.5
14	2.0	3.6	1.5	1.9

5.Types of Various Edge Preparations
