Specifications
Brand Name :
BS•EVER
Model Number :
SINGLE/DOUBLE INTERMEDIATE CRIMP
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
15 PCS
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 PCS/ DAY
Delivery Time :
DEPENDS ON ORDERED QUANTITY
Packaging Details :
IN BULK OR ON PALLET
Price :
negotiable
Prodduct Name :
Intermediate Crimped Wire Mesh
Weave pattern :
single/double intermediate
Wire :
Lighter Gauge
Openning :
Common>1/2"
Material :
common are SS and Galvanized steel wire
Sample :
availabe
Description

1.What is intermediate crimped wire mesh and its features

Galvanized / Carbon Steel Wire Mesh Single / Double Intermediate Weave Pattern

Intermediate crimped can be divided into single intermediate crimped and double intermediate crimped. The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven. The double intermediate crimped means both the weft wire and warp wire is pre-crimped and then woven together.

Single or double intermediate crimp screen is similar to HH-CRIMPED A mesh, having the same type of crimped wires, but there have intermedate crimps in the apertures making wires moore rigid, allowing larger apertures with the same wire diameters. it is used in applications that need big aperture size and small wire diameter.

Pre-crimped process: Using the precision machine, the intermediate crimped wire is pre-crimped by the rotary dies. The pre-crimped wire can assure the spacing of the wires. When the wires are woven together, the structure can ensure the wires will lock firmly together at the intersections.

2.Weave Patterns comparison between Single & Double Intermediate crimped wire mesh

Galvanized / Carbon Steel Wire Mesh Single / Double Intermediate Weave Pattern
Galvanized / Carbon Steel Wire Mesh Single / Double Intermediate Weave Pattern Galvanized / Carbon Steel Wire Mesh Single / Double Intermediate Weave Pattern

1) the warp and weft wires are crimped with extra crimps or corrugations

2) superior rigidity and greater stability.

3) Inter crimping assures the proper locking of the warp

and weft wires and adds rigidity and accuracy

3.Part Specification for your referance

Inter Crimped Wire Mesh Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).and its common materials are STAINLESS STEEL AND GALVANIZED STEEL WIRE

Wire Gauge (Diameter) Opening
mm		 Open Area
%		 Material
SWG mm
18 1.2 10 77.8 SS/Galvanized
16 1.5 10 75.6 SS
1.6 10 74.3 Gal
1.5 12 79.0 SS
1.6 12 77.8 Gal
1.5 15 82.6 SS
1.6 15 81.6 Gal
14 1.9 10 70.6 SS
2.0 10 69.4 Gal
1.9 12 74.5 SS
2.0 12 73.5 Gal
1.9 15 78.8 SS
2.0 15 77.8 Gal
1.9 18 81.8 SS
2.0 18 81.0 Gal
1.9 20 83.4 SS
2.0 20 82.6 Gal
1.9 25 86.4 SS
2.0 25 85.7 Gal
12 2.5 20 79.0 SS
2.6 20 78.3 Gal
2.5 25 82.6 SS
2.6 25 82.0 Gal
2.5 30 85.2 SS
2.6 30 84.7 Gal
10 3.0 25 79.7 SS
3.2 25 78.6 Gal
3.0 30 82.6 SS
3.2 30 81.6 Gal

Intermediate Crimped Wire Mesh Specification for all materials that can be weaved
Opening Wire Diameter Open Area
mm Inch mm Inch %
5.0 0.197 1.0 0.039 69.44
0.9 0.053 71.82
0.8 0.031 74.32
0.7 0.028 76.95
0.6 0.024 79.72
6.0 0.236 1.0 0.039 73.47
0.8 0.031 77.85
0.6 0.024 82.64
7.0 0.276 1.4 0.055 69.44
1.2 0.047 72.87
1.0 0.039 76.56
0.8 0.031 80.54
8.0 0.315 4.0 0.157 44.44
1.6 0.063 69.44
1.4 0.055 72.43
1.2 0.047 75.61
1.0 0.039 79.01
0.8 0.031 82.64
10.0 0.394 2.0 0.079 69.44
1.8 0.071 71.82
1.6 0.063 74.32
1.4 0.055 76.95
1.2 0.047 79.72
1.0 0.039 82.64
12.0 0.472 2.0 0.079 73.46
12.7 1/2” 2.6 0.102 68.90
2.3 0.091 71.68
2.0 0.079 74.64
1.8 0.071 76.71
1.6 0.063 78.87
1.4 0.055 81.13
1.2 0.047 83.48
15.0 0.591 3.0 0.118 69.44
2.5 0.098 73.47
2.0 0.079 77.85
16.0 0.630 3.0 0.118 70.91
20.0 0.787 4.0 0.157 69.44
3.6 0.142 71.82
3.2 0.126 74.32
3.0 0.118 75.61
2.9 0.114 76.26
2.6 0.102 78.31
2.5 0.098 79.01
2.3 0.091 80.44
2.0 0.079 82.64
1.8 0.071 84.17
25.0 0.984 4.0 0.157 74.31
3.5 0.138 76.94
3.0 0.118 79.71
2.5 0.098 82.64
25.4 1” 4.8 0.189 70.74
4.4 0.173 72.65
4.0 0.157 74.64
3.6 0.142 76.71
3.2 0.126 78.87
2.9 0.114 80.56
2.6 0.102 82.29
2.3 0.091 84.08
2.0 0.079 85.93
30.0 1.181 5.0 0.197 73.46
4.0 0.157 77.85
3.5 0.138 80.19
3.0 0.118 82.64
2.5 0.098 85.20
35.0 1.378 4.0 0.157 80.53
38.1 1-1/2” 5.8 0.228 75.32
5.3 0.209 77.07
4.8 0.189 78.87
4.4 0.173 80.37
4.0 0.157 81.09
3.6 0.142 83.48
3.2 0.126 85.10
2.9 0.114 86.35
2.6 0.102 87.63
40.0 1.575 5.0 0.197 79.01
4.0 0.157 82.64
3.0 0.118 86.53
2.5 0.098 88.58
50.0 1.969 5.0 0.197 82.64
4.0 0.157 85.73
3.0 0.118 88.99
50.8 2”

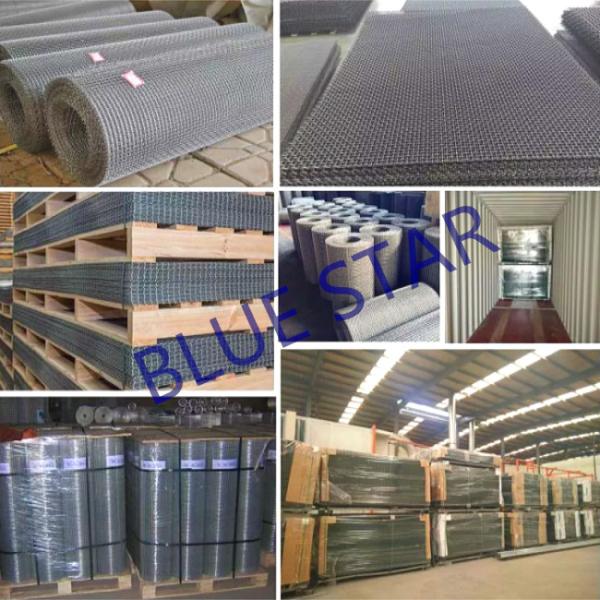

4.Production show

Galvanized / Carbon Steel Wire Mesh Single / Double Intermediate Weave Pattern
