Specifications
Brand Name :
BS•EVER
Model Number :
Plain weaving
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
20 PCS
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000pcs /week
Delivery Time :
Depended on ordered quantity
Packaging Details :
IN BULK OR PLYWOOD PALLET OR CUSTOMISED
Name :
Heavy duty crimped wire mesh/Crusher screen mesh/Vibrating screen mesh
Material :
Low Carbon steel & Stianless steel
Surface treatment :
spray paint, oil painting, eltro or hot-dip galvanized,pvc-coated
Aperture/openning :
2mm to 100mm,tolerance +-3%
Shape :
in rolld/ in sheet
Technique :
Pre-crimped & plain weave
Description

Plain weave,Black & Red Spray Paint Heavy Duty Crimped wire mesh/Crusher (Vibrating) screen mesh for Quarry Ming

1. Heavy duty Crimped wire mesh is customization manufactured for products and applications requiring strength and rigidity, such as sieves and vibration filter media for sizing, sorting and filtering heavy or large materials. Heavy duty wire cloth is used in the mining, refining and construction industries.

Pre-crimp wire cloth and heavy duty mesh are manufactured in large wire diameters. and its most common weaving method is plain weaving.We offer a wide range of metals and alloys for use in the mesh to meet product requirements. AExtra-wide roll widths are available.

Plain Weave Carbon Steel Gravel Screen Mesh , Quarry Ming Crimped Wire Mesh

2. * Basic Specification

Name
vibrating screen wire mesh/heavy duty crimped wire mesh

Material

High Carbon steel:65Mn,45#,50#,55#,60#,70#,,72A

Stainless steel wire:SUS304,304L,316,316L etc

Aluminum wire:5154,5050,5056,6061,6063 etc

Galvanized low carnon steel

Wire diameter

0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
Aperture/Opening

2mm to 100mm,tolerance +-3%
Surface treatment spray paint, oil painting, eltro or hot-dip galvanized,pvc-coated

*Chemical composition for Carbon steel & Stainless Steel

Carbon steel composition and weaved wire diameter reference
No. Grade Chemical Composition Wire diameter
C Si Mn mm
1 45 0.42-0.50 0.17-0.37 0.50-0.80
 2.0-6.0
2 50 0.47-0.55 0.17-0.37
3 55 0.52-0.60 0.17-0.37
4 60 0.57-0.65 0.17-0.37
5 65 0.62-0.70 0.17-0.37
6 70 0.67-0.75 0.17-0.37
7 65Mn 0.62-0.70 0.17-0.37 0.90-1.20 2.0-14.0
8 72A 0.70-0.75 0.15-0.35 0.30-0.60 2.0-22.0

Common Stainless steel wire chemical composition

3. Part Speciification for your refereence

SPECIFICATION:We provide the attached specification,but it does not limited to them.
It can be as client's instruction.

Tensile strength for different wire diameter
WIREDIA(MM)
TENSILE STRENGTH(MPA)
RA
WIRE DIA(MM)
TENSILE STRENGTH(MPA)
RA
2
1450-1700
45%
7
1350-1550
45%
3
1450-1700
45%
8
1350-1550
40%
3.5
1450-1700
45%
9
1150-1300
40%
4
1450-1700
45%
10
1100-1250
40%
4.5
1450-1700
45%
11
1100-1250
40%
4.9
1450-1650
45%
12
1100-1250
40%
5
1450-1650
45%
12.5
1050-1150
40%
6
1400-1600
45%
13
1050-1150
40%

Item Wire diameter
Mm		 Open size
Mm		 Width
M		 Length
M		 Weight
Kg
1 2 3 1.5 2 32
2 3 5 1.5 2 42.6
3 4 8 1.5 2 51.13
4 4.5 12 1.5 2 46.77
5 5 16 1.5 2 45.52
6 5.5 18 1.5 2 49.37
7 6 20 1.5 2 52.7
8 6 22 1.5 2 48.96
9 6.5 24 1.5 2 52.87
10 6.5 27 1.5 2 48.12
11 7 30 1.5 2 50.63
12 8 50 1.5 2 42.29
13 12 75 1.5 2 64

5. 9 TYPES OF Different edge treatments

We can satify your various requestment on the edge, they can be with hook and sheath, also can be in flat sheet without hook and sheath. for hook & sheath also include 9 types

Plain Weave Carbon Steel Gravel Screen Mesh , Quarry Ming Crimped Wire Mesh

4. Production process

Plain Weave Carbon Steel Gravel Screen Mesh , Quarry Ming Crimped Wire Mesh

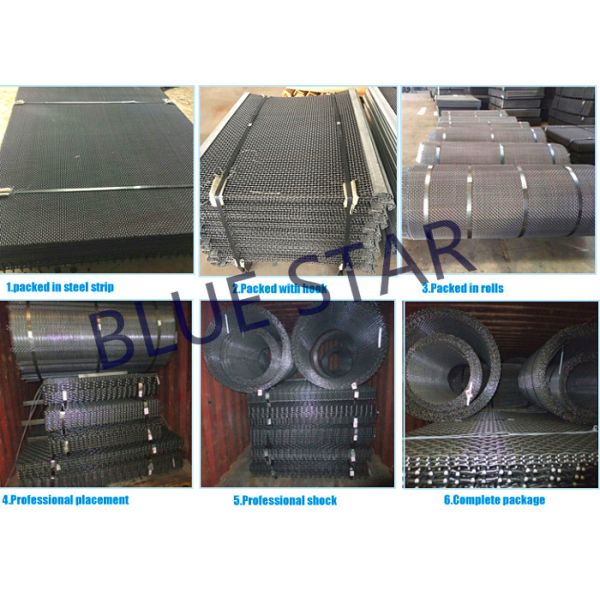

5. Common packing show

Plain Weave Carbon Steel Gravel Screen Mesh , Quarry Ming Crimped Wire Mesh

Plain Weave Carbon Steel Gravel Screen Mesh , Quarry Ming Crimped Wire Mesh
