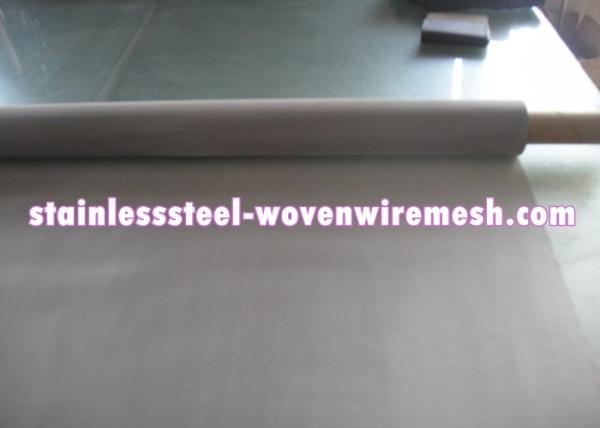

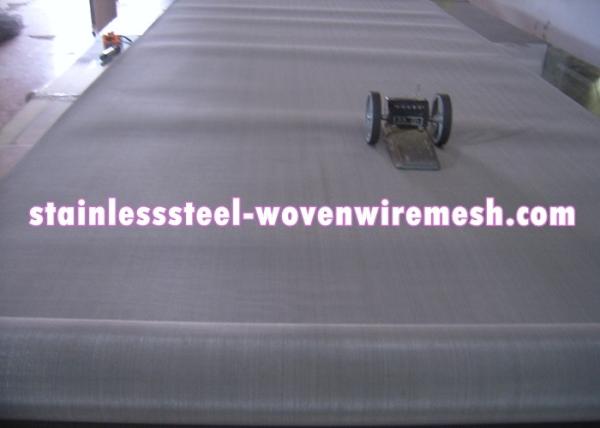

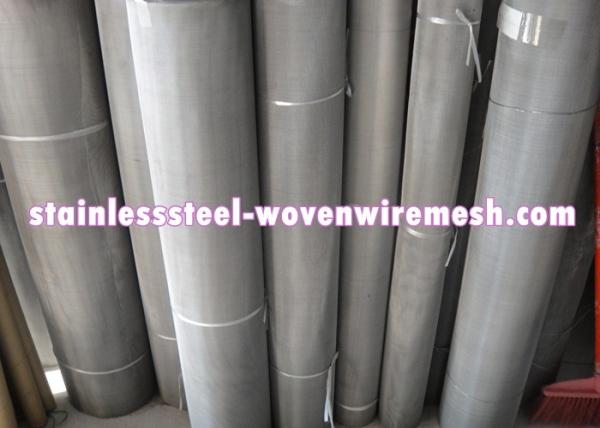

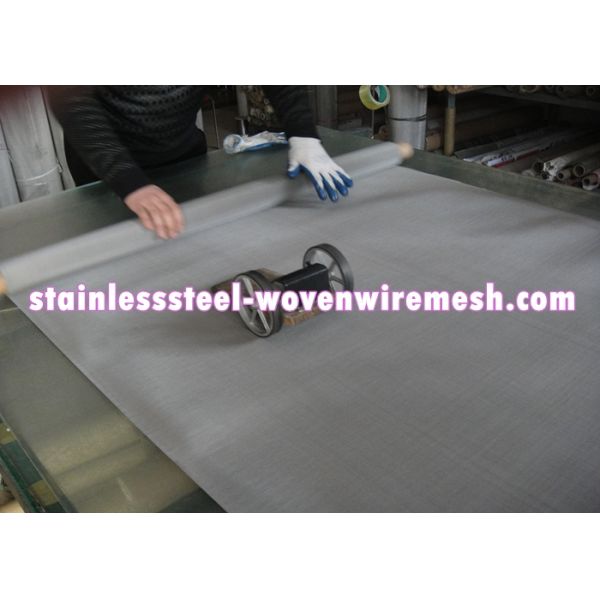

316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
Specifications
Brand Name :
BS•EVER
Model Number :
Stainless Steel Twill Dutch Weave Wire Mesh
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
30 Sq.m
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
300 Sq.m/ Day
Delivery Time :
According to the Quantity Ordered
Packaging Details :
Moisture proof paper & plastic film, Wooden Case or Pallet.
Name :
Stainless Steel Twill Dutch Weave Wire Mesh
Mesh :
150-3600
Material :
Stainless steel, nickel, Monel metal, phosphor bronze, other metals
Roll Size :
1x30m
Port :
Xingang,Tianjin
Sample :
Free Charged
Description

Bright Raw Edge Stainless Steel Twill Dutch Weave Wire Mesh With Width 1 - 1.6m for Filter

The stainless steel wire mesh can be divided into four kinds according to the weaving method,stainless steel plain weave wire mesh, stainless steel twill weave wire mesh,stainless steel plain dutch weave wire mesh, stainless steel twill dutch weave wire mesh.

316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry

Similar to Plain Dutch Weave, but woven in the twill style. Because adjacent shute wires are in tight contact with each other on both sides,
the density is two times that of the Plain Dutch Weave.

This type of weave provides the tightest and strongest wire cloth for separating purpose.
(In the case of Twilled Dutch Weave, the MESH count is represented by the number of shute wires in a lineal inch or 25.4 mm.)

Material:

Stainless steel 201/304/304L/316/316L/310S/321/317L/410S/431/904L, nickel, Monel metal, phosphor bronze, other metals.

Twilled Dutch Weave

316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry 316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry

●In the case of Plain Dutch Weave, opening sizes are not accurate. Values shown below should be taken as just rough estimation.

MESH Wire Diameter Estimated Diameter of Penetrating Particle Thickness Weight
Warp×Shute mm µm mm kg/m2
150 MESH 20×150 0.45/0.35 138 1.12 6.6
200 MESH 20×200 0.35/0.28 115 0.90 4.6
250 MESH 20×250 0.25/0.21 87 0.67 3.5
30×250 0.25/0.21 85 0.67 3.3
300 MESH 30×300 0.26/0.19 77 0.65 3.4
360 MESH 32×360 0.23/0.16 55 0.56 2.7
400 MESH 40×400 0.19/0.135 58 0.48 2.2
500 MESH 50×500
32×500		 0.13/0.11
0.18/0.11		 46
54		 0.36
0.44		 1.9
1.9
600 MESH 60×600 0.13/0.09 38 0.33 1.55
80×600 0.12/0.09 35 0.32 1.7
700 MESH 80×700 0.1/0.065 32 0.26 1.4
800 MESH 100×800 0.08/0.053 22 0.23 1.25
1000 MESH 120×1000 0.065/0.053 20 0.18 1.0
1200 MESH 150×1200 0.065/0.045 16 0.17 1.05
1400 MESH 165×1400 0.065/0.04 15 0.14 0.77
200×1400 0.07/0.04 14 0.14 0.8
1480 MESH 165×1480 0.065/0.04 13 0.14 0.66
1550 MESH 165×1550 0.065/0.035 13 0.14 0.66
2000 MESH 200×2000 0.05/0.028 12 0.11 0.55
2300 MESH 325×2300 0.035/0.025 5.0 0.085 0.40
2600 MESH 350×2600 0.03/0.022 4.9 0.080 0.40
3000 MESH 400×3000 0.03/0.018 4.5 0.06 0.34
3600 MESH 510×3600 0.025/0.015 4.0 0.05 0.26

316 / 304 Stainless Steel Wire Mesh , Twill Dutch Weave Wire Mesh For Chemical Industry
