Stainless Steel Alloy Woven Wire Mesh – Plain/Intercrimp/Lock Styles for Corrosive and High Temperature Environments

1. Stainless steel woven wire mesh

Stainless steel woven wire mesh is especially versatile because it is extremely corrosion and chemical resistant even in harsh environment. With countless combinations of mesh opening sizes and diameter wires, stainless steel woven wire mesh provides you with a variety of choices for industrial, architectural, food processing and some non-industrial applications.

Type 304 stainless steel exhibits many benefits and is largely considered the standard of the industry.

2. Specification

Material: stainless steel 304, 304L, 316, 316L.

Wire Dia: 0.02–6.00 mm.

Mesh: 1–635 mesh.

3. Woven Patterns:

Woven Type: Plain Weave and Twill Weave

Mesh: 1-635 mesh, To accurately

Wire Dia.: 0.02 mm-2 mm, small deviation

Width: 190mm, 915mm, 1000mm, 1245mm, 1550mm, 4m the widest

Length: 30m, 30.5m or cut to length you need

Hole shape: Square Hole

Wire Material: SU302,304,316,304L,316L,310S,321 Stainless steel wire

Mesh Surface: clean, smooth, small magnetic.

1) Plain weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
Characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.

2) Twill weave: Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.
Characteristics: square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .

4. Feature

• Smooth surface.
• Good mechanical strength.
• Superior corrosion resistance.
• Durability with good abrasion resistance.
• Good chemical resistance.
• Easy to cut with tools.
• Extremely versatile.
• Countless specifications to fit any application.

5. Applications

Industrial, architectural, food, chemical, pharmaceutical, petroleum, oil & gas, water treatment, paper making, plastic recycling and other industries.

Fencing, security mesh, insect screening, interior walls, railing system, baskets, grills, grates, display shelves and stands, racks, wall reinforcement, air filtration, filters, filter dryers, dust collectors, livestock cages, vibrating screen, scientific and laboratory use, etc.

6. Process

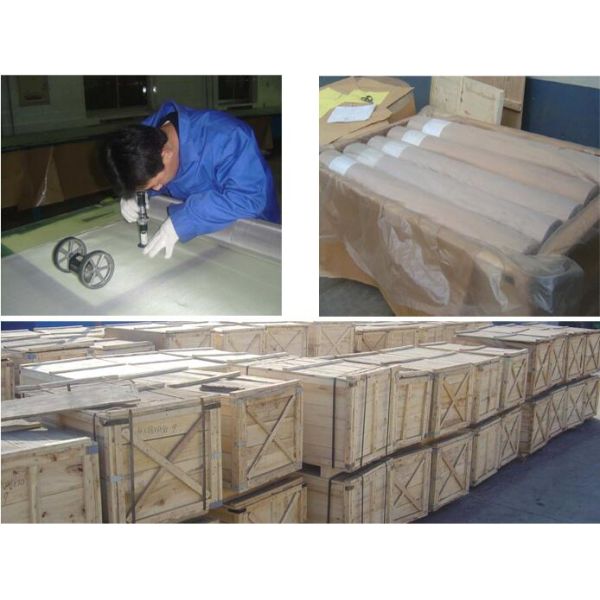

7. Packaging:
