Specifications
Brand Name :
BS•EVER
Model Number :
long -way hole
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
15 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500pcs/day
Delivery Time :
depended on ordered quantity
Packaging Details :
IN BULK OR PLYWOOD PALLET OR CUSTOMISED
Product name :
slot hole crimped wire mesh
Other name :
Long Slot Screen Mesh
Material :
Low carbon steel & Stainless steel wire
Most Common Material :
Stainless steel 304
Common Horizontal Wire Diameter :
4mm with Interspace 22MM
Common Vertical Wire Diameter :
3x4mm with Interspace 99mm
Technique :
pre-crimped before weaving
Surface treatment :
Satine or customized
Description

Long Slot Crimped Wire Mesh with Low Carbon Steel / SS(304/316) for security fence&hoistways&Mine

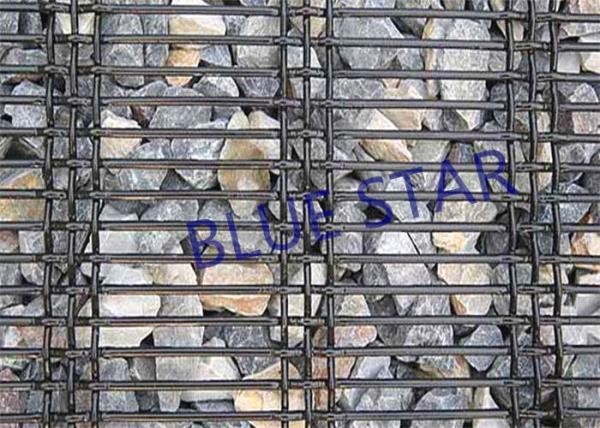

1. Pre-Crimped Wire Mesh--Long Slot Type

Long slot screen is designed with five filled wires that are grouped together to enhance the open area.long slotted screens cloth made from high tensile carbon steel and stainless steel and the most common grade is SS304. it is Pre-crimped mesh processing -- Pre-crimping before Weaving. Compared with rectangular slot screens, woven wire Long slot screens assemblely by double or triple shute crimped wire, reduce blinding screening wet, irregular and other special shape material in mining, quarry, aggregate production industries.wear and abrasion resistant. reduce screening blinding,anti clogging,improve production.service sand,rock,stone,coal and other material screening in mining,quarry,aggregate process industries.

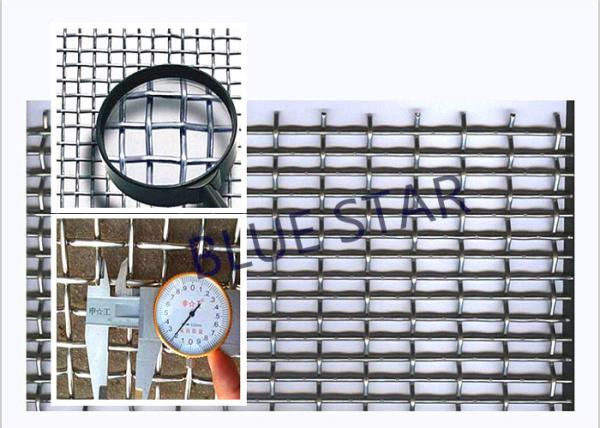

2. Weave Pattern of Long Slot Pre-Crimped Mesh

Long Slot Double Crimped Wire Mesh , Heavy Duty Wire Mesh Screen Abrasion Resistance

67% Screening Area Crimped Reinforced Slotted Screen Mesh Use for Quarry Machine

some parts of specification reference, Customization is also ok

aperture (mm)
wire diameter(mm)
kg/m2
screening area%
0.70x2.10
0.44-0.66
2.04
67
1.00x3.00
0.60-0.70
2.23
51
1.50x4.50
0.80x1.00
2.04
67
1.50x20.00
1.25
4.18
51
1.50x50.00
1.25
4.12
53
2.00x20.00
1.60
5.41
51
2.00x50.00
1.50
4.59
56
2.50x50.00
1.60
4.77
59
3.20x16.00
1.60-1.25
4.43
61
3.50x50.00
1.60
3.97
67
6.00x60.00
2.80
7.5
65
10.00x60.00
4.00
10.55
67
12.00x60.00
4.00
9.50
70
20.00x100.00
8.00
18.77
66
22.00x80.00
8.00
18.46
67
22.00x100.00
8.00
17.18
68
24.00x120.00
8.00-6.30
19.05
62
25.00x120.00
8.00
15.55
71

3. Comparison between long slot screen(slotted hole crimped wire mesh) with rectangle hole of crimped wire mesh

Compared with rectangular slot screens, woven wire Long slot screens assemblely by double or triple shute crimped wire, reduce blinding screening wet, irregular and other special shape material in mining, quarry, aggregate production industriesLong Slot Double Crimped Wire Mesh , Heavy Duty Wire Mesh Screen Abrasion Resistance

4. Rectangle Hole Aluminum alloy / stainless steel Crimped Wire Mesh

Material:Aluminum Alloy& Stainless seel wire

74% Open Area,

Long Way of Opening Parallel to N/A,

Sheet, 60." Width x 120" Length

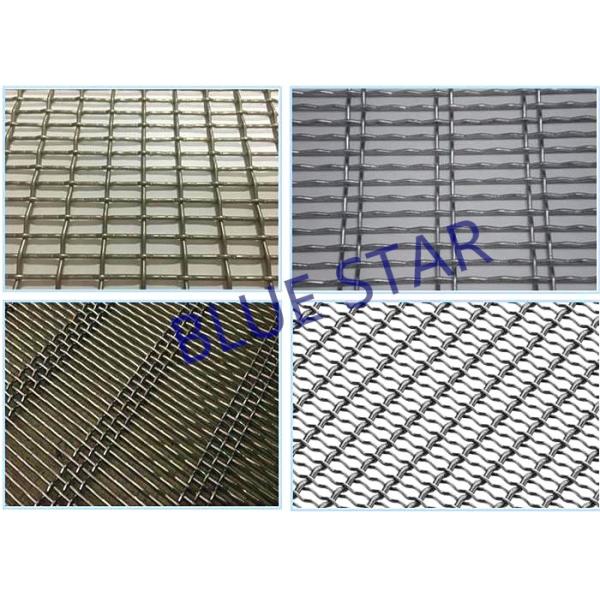

Specific specfication and products show

Long Slot Double Crimped Wire Mesh , Heavy Duty Wire Mesh Screen Abrasion Resistance
Long Slot Double Crimped Wire Mesh , Heavy Duty Wire Mesh Screen Abrasion Resistance
Long Slot Double Crimped Wire Mesh , Heavy Duty Wire Mesh Screen Abrasion Resistance

Product characteristics&Applications

Features: It has fine features of neat & precise, sturdy structure,
durable& strongly rust-resistant and fine anti-corrosiveness.
Applications: It's widely used in industry, agriculture, building,
house fencing, machinery enclosures fenc
