Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry
Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry
Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry
Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry
Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry
Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry
Specifications
Brand Name :
BS-EVER
Model Number :
HP/SP
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2 containers/month
Delivery Time :
10-15 days
Packaging Details :
plastic paper+wooden case
Shape :
Heteromorphic/polygonal
sample :
free charged
Usage :
Chemical Tower
Material :
Stainless steel/MONEL400
Density :
122/144/168/194 KG/CBM
Structure :
twine
Description

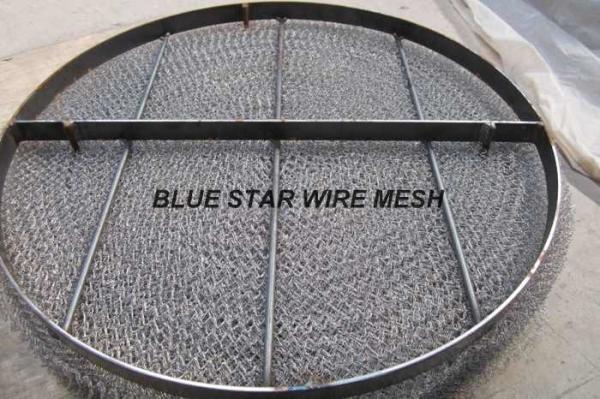

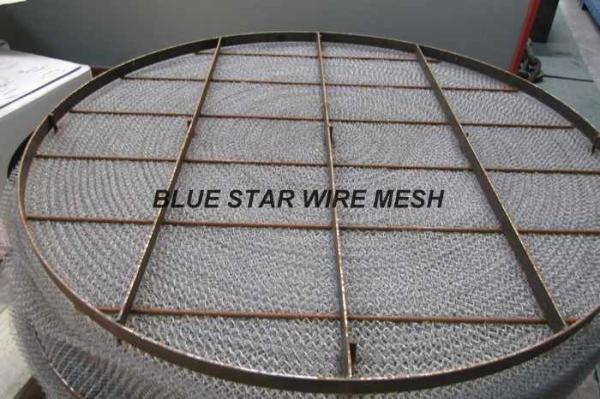

Twine Type Demister Pad with York 431/Density of 144KG/CBM Stainless steel/MONEL with Heteromorphic/polygonal Shape

1. Wire mesh demister Material :

stainless steel wire ,nickel wire ,copper wire, galvanized wire , iron wire , monel wire

wire mesh demister specification

Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical IndustryTwine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry

SP type demister pad. DP type demister pad. HR/HP type demister pad.

Type Standard wire specification
SP 0.1 mm + 0.03 mm × 0.4 mm
DP 0.1 mm + 0.02 mm × 0.3 mm
HR 0.23 mm + 0.03 mm × 0.4 mm.
HP 0.1 mm + 0.03 mm × 0.4 mm

2. wire mesh demister standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
common diameter :0.20-0 .45 mm
form code: SP
Weight capacity: 168 Kg/m3
specific surface area: 529.6 m2/m3
porosity : 0.9788ε

High efficient type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150

common diameter : 0.12-0.45mm

form code: HR
Weight capacity: 128 Kg/m3
specific surface area: 403.5 m2/m3
porosity : 0.9839ε

shock absorption type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120

common diameter : 0.21mm

form code: HR
Weight capacity: 168 Kg/m3
specific surface area: 529.6 m2/m3
porosity : 0.9788ε

Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry

3. Advantages:

>High removal efficiency
>Negligible pressure drop, less than 25mm of water gauge
>No maintenance or service required
>No corrosion or temperature limitations
>Easily installed in existing vessels
>No limitation on size or shape.


Twine Type Fine Mesh Wire Netting Stainless Steel For Chemical Industry
