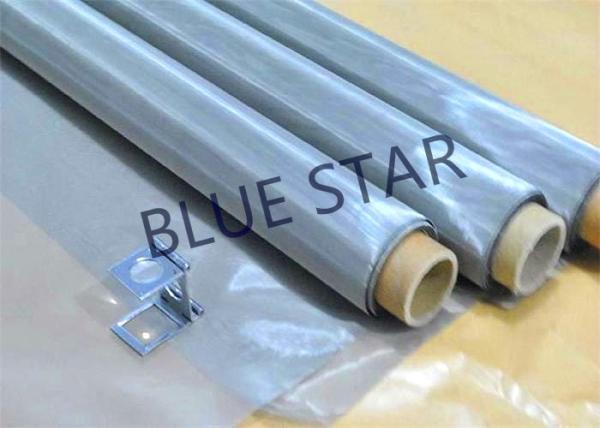

304 316L 50 Micron Stainless Steel Mesh , Plain Weave Fine Wire Mesh Sheets
304 316L 50 Micron Stainless Steel Mesh , Plain Weave Fine Wire Mesh Sheets
304 316L 50 Micron Stainless Steel Mesh , Plain Weave Fine Wire Mesh Sheets
304 316L 50 Micron Stainless Steel Mesh , Plain Weave Fine Wire Mesh Sheets
304 316L 50 Micron Stainless Steel Mesh , Plain Weave Fine Wire Mesh Sheets
304 316L 50 Micron Stainless Steel Mesh , Plain Weave Fine Wire Mesh Sheets
Specifications
Brand Name :
BS•EVER
Model Number :
filter cloth
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 roll
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
60 rolls per day
Delivery Time :
depend on order
Packaging Details :
in Moist-proof paper, wooden case, pallet or as your requirement.
Other name :
Stainless steel fine mesh
Sample :
Availableand Free of charge
Width :
1m/1.2m/1.5m/1.8m/2.0m or customized
Length :
30m as usual or Customized
Weave Type :
Plain weave, Twill weave, Plain Dutch weave, Twill Dutch weave, Reverse Dutch weave
Mesh No. :
1-2800 mesh
Description

10 25 50 80 100 200 250 300 400 500 micron stainless steel 304/316L filter cloth for paper making

1. Material: SS304, 304L, 316, 316L, 201, Galvanized carbon steel, Copper, Bronze, Aluminum, Nickel, Titanium,etc.

2. Wire Mesh Weaving Type:

Plain weave, Twill weave, Plain Dutch weave, Twill Dutch weave, Reverse Dutch weave.

3. Product range: Usually manufactured in 30m ( up to 200) long and in width of 1m, 1.2m, 1.5m, 2.0m etc. Or cut to length panels as per clients' requirement.

4. Sample: Available.

5. Weaving types

Plain weave, Twill weave, Plain Dutch weave, Twill Dutch weave, Reverse Dutch weave.

6.Stainless Steel Wire Mesh Square Opening Specification Reference List

Stainless Steel Wire Mesh Square Opening Specification Reference List 1
Weave
Type		 Mesh
Count		 Wire Dia.
(Inch)		 Width of Opening
(Inch)		 Open Area
(%)		 Weigh Per 100 sq'
based on 304ss		 Opening
(Micron)
Plain 2 x 2 .063 .4370 76.4 51.7 11119
Plain 3 x 3 .0540 .2790 70.1 57.3 7099
Plain 4 x 4 .0470 .2030 65.9 58.2 5165
Plain 5 x 5 .0410 .1590 63.2 55.4 4046
Plain 6 x 6 .0350 .1320 62.7 48.6 3359
Plain 6 x 6 .0320 .1350 65.6 20.7 3435
Plain 7 x 7 .0320 .1110 60.4 47.5 2824
Plain 7 x 7 .0280 .1150 64.8 36.2 2926
Plain 8 X 8 .0250 .1000 64.0 32.9 2545
Plain 9 X 9 .0250 .0860 59.9 37.3 2188
Plain 9 X 9 .0230 .0880 62.7 31.4 2239
Plain 10 x 10 .0250 .0750 56.3 41.6 1908
Plain 11 x 11 .0230 .0680 56.0 38.8 1730
Plain 11 x 11 .0200 .0710 61.0 29.1 1807
Plain 12 x 12 .0200 .0630 57.2 31.9 1603
Plain 14 x 14 .0200 .0510 51.0 37.6 1298
Plain 16 x 16 .0180 .0445 50.7 34.8 1132
Plain 18 x 18 .0170 .0386 48.3 35.1 982
Plain 20 x 20 .0200 .0300 36.0 55.8 763
Plain 30 x 30 .0120 .0213 40.8 29.7 542
Plain 30 x 30 .0095 .0238 51.0 18.2 606
Plain 40 x 40 .0100 .0150 36.0 27.9 382
Plain 50 x 50 .0055 .0145 52.6 10.1 369
Plain 60 x 60 .0060 .0107 41.2 14.8 272
Plain 60 x 60 .0045 .0122 53.3 8.1 310
Plain 80 x 80 .0055 .0070 31.4 17.1 178
Plain 100 x 100 .0045 .0055 30.3 14.3 140
Plain 100 x 100 .0040 .0060 36.0 11.1 153
Plain 120 x 120 .0026 .0058 47.3 5 148
Plain 150 x 150 .0026 .0041 37.4 7.2 104
Plain 165 x 165 .0019 .0042 47.1 4.2 107
Plain 180 x 180 .0023 .0033 34.7 7.5 84
Plain 200 x 200 .0019 .0030 60.6 3.6 77
Plain 230 x 230 .0014 .0029 46.0 3.4 74
Plain 250 x 250 .0016 .0024 36.0 4.3 61
Twill 270 x 270 .0016 .0021 32.2 4.8 53
Plain 300 x 300 .0012 .0018 29.7 3 46
Twill 325 x 325 .0014 .0017 30.0 4.3 43
Twill 400 x 400 .0011 .0014 31.4 3.4 36
Twill 500 x 500 .0010 .0010 25.0 * 25
Twill 635 x 635 .0008 .0008 25.0 * 20

Stainless Steel Wire Mesh Square Opening Specification Reference List 2
Mesh / Inch Wire Dia. (mm) Opening (mm) Material (AISI)
2x2 1.8 10.9 304 or316
3x3 1.5 6.96 304 or316
4x4 1.0 5.35 304 or316
7x7 1.00 2.63 304 or316
10x10 0.60 1.94 304 or316
12x12 0.50 1.62 304 or316
16x16 0.40 1.19 304 or316
16x16 0.35 1.24 304 or316
18x18 0.35 1.06 304 or316
20x20 0.40 0.87 304 or316
24x24 0.26 0.80 304 or316
30x30 0.30 0.55 304 or316
35x35 0.17 0.56 304 or316
40x40 0.23 0.40 304 or316
50x50 0.20 0.31 304 or316
60x60 0.15 0.27 304 or316
70x70 0.12 0.24 304 or316
80x80 0.13 0.19 304 or316
90x90 0.12 0.16 304 or316
100x100 0.10 0.15 304 or316
120x120 0.09 0.12 304 or316
150x150 0.063 0.11 304 or316
180x180 0.053 0.09 304 or316
200x200 0.053 0.07 304 or316
250x250 0.040 0.063 316
300x300 0.040 0.044 316
325x325 0.035 0.043 316L
350x350 0.030 0.042 316L
400x400 0.030 0.033 316L
450x450 0.028 0.028 316L
500x500 0.025 0.026 316L
