304 / 316 Stainless Steel Perforated Sheet Metal plate /punched hole mesh roll 0.2 - 12MM Thickness

Perforated metal sheet was pubched with a series of holes to give you a nominated pattern.the pattern vary from different hole size,center and plate thickness.it can also be called as perforated screen,punching hole mesh and perforated metal plate.

Material: low carbon steel plate,stainless steel plate, brass plate,alumium plate,nickel plate and various of metal and nonmetal plate

Different material hold their unique characteristics for specific applications:

Stainless steel perforated metal sheet:Corrosion resistance, acid and alkali resistance, moisture resistance, good stability, not easy damage, long service life, beautiful and generous.

Aluminum perfcorated plate: light weight, steel soft, high tensile strength, good corrosion resistance, average coating and various colors,convenient installation,can be made into a variety of crafts, can be recycled, environmental protection

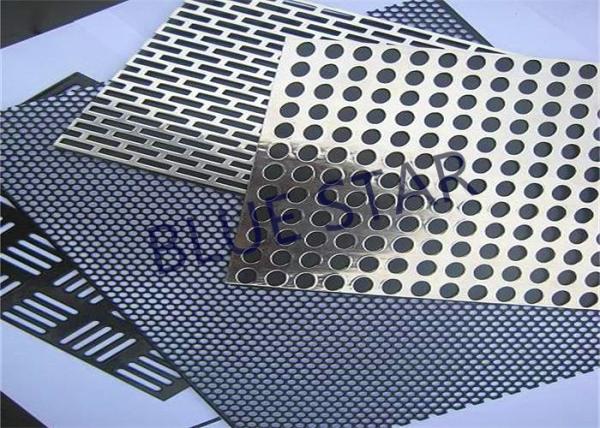

Hole shape: Round hole, square hole. Slot hole round ends, slot hole, triangle hole, hexagonal hole, scale hole. Rectangular hole, Cross, Diamond etc.

Hole pattern:

60° staggered: 60° the plum flower arrangement in the natural high strength and wide opening rate and striking appearance become one of the most popular choice.

45 ° staggered: compared with the former, 45 ° plum flower arrangement gives people another choice

Straight line: another way to arrange round holes is to align the holes. There can be various holes and hole opening rates, but it is the least compressive of the round holes

Round hole: Plate thickness 0.4-6.0mm
Hole size: 1.0-25mm
Center to center distance: 3-34mm
Opening rate: 23%-49%

Square holes: Plate thickness 0.8-3.0mm
Hole size 3.0-50.0mm
Center to center distance: 5.0-100.0mm
Opening rate: 16%-64%

Slot holes round ends: Plate thickness: 0.5-3.0mm
Hole size: 1.0x1.0mm - 10 x 45mm
Center to center distance: 4.0 X6.0 - 20 x 60mm
Opening rate: 18%-76%

Perforated metal surface treatment:

• Pvc coated
• Powder coated
• Amodized
• Paint
• Fluorocarbon spraying
• Polishing


Specification of perforated mesh metal:

Perforated metal sheet charactieristics:

1). Various kind of hole patterns.it is beautiful
2). Accurate holes, bending resistance, corrosion resistance.
3). Easy to process and install, good sound absorption
4). Durable and long service life.
5). Attractive appearance and wide range of thickness available.

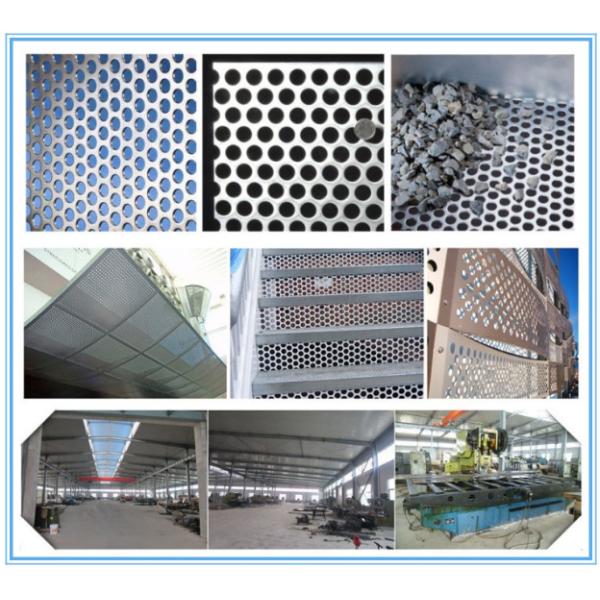

Perforated metal application:(screen/filter/decoration/ptptection)

Construction wall

Acoustic panel in factory workshop,generator room and other noise source

Acoustic material in ceiling,wall board

Decorate plate in stairs,balcony,environmental protection tables

Protection cover for machine

Screen cover for loudspeaker box

Fruit basket,food cover ,compote in kitchen

Shelf network in market

Decoration exhibition

Ventilation net in grain depo

Water percolation in football field turf

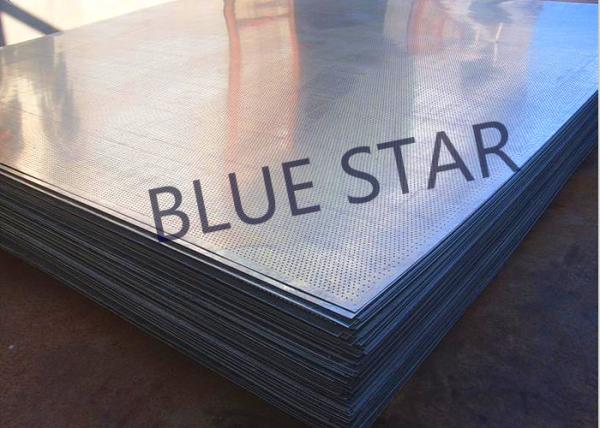

Perforated metal packing:
Perforated metal appears in roll type and flat type. They are packed in wooden pallets generally and wrapped with plastic film. We can also pack according to customer requirements.
