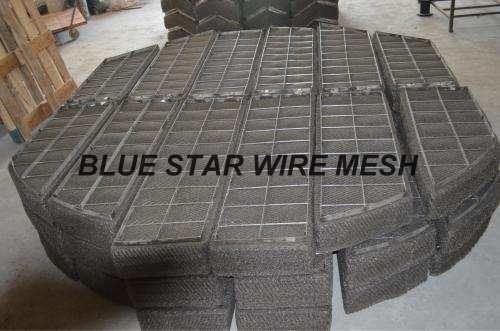

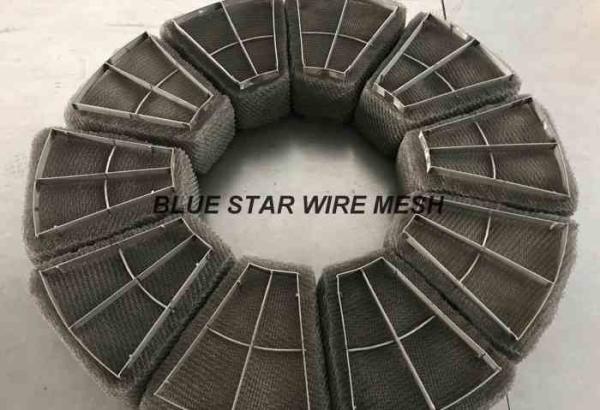

High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable
High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable
High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable
High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable
High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable
High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable
Specifications
Brand Name :
BS-EVER
Model Number :
HP/SP
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
10-15 days
Packaging Details :
plastic paper+wooden case
Shape :
Heteromorphic/polygonal
sample :
free charged
Usage :
Chemical Tower
Material :
MONEL400
Density :
144
Type :
YORK 144
Description

York 431/Density of 144KG/CBM Stainless steel/MONEL Demister Pad with Heteromorphic/polygonal Shape

1. Mesh Diameters


Mesh is normally knit from wires ranging in diameter from .0035” to .0200”. In special applications, Metal Textiles has knit wires ranging in diameter from .0005” to .0350”. These wires can be round or flat such as those used in Metal Textiles copper gauze for cleaning and in air-filtration applications where large surface areas of wire are needed. A round wire when flattened has approximately twice as much surface area.

In filtration applications, wire diameter is perhaps the most important design variable. It directly affects flow, dirt holding capacity, pressure drop and cost. In general, larger diameter wire allows for higher flow but provides lower dirt holding capacity. Also, larger diameter wire is less expensive. Therefore, a balance must be struck between using a higher density filter of higher cost fine wire or a lesser density filter using lower cost heavy wire.

High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable

(Raw material: knitted wire mesh)

2. Density


Density refers to the mass of material per unit volume. It is related to the density of the original mesh and the amount of forming pressure used to compress the mesh into its final form. Determining the required mesh density to produce the specified final product density is a critical step in the design process. Proper density ensures optimal performance of the sealing, gasketing, filtration, heat transfer and separation applications.

Metal Textiles engineers are expert at determining proper density for specific requirements.

3. Style and Their Feature

Style Density kg/m3 FreeVolume % SurfaceArea m2/m3 Products of Other Companies
Metex York Becoil Knitmesh Vico-Tex Uop Koch Acs
H 80 99.0 158 Hi-Thruput 931 954 4536 160 B 511 7CA
L 120 98.5 210 422
N 144 98.2 280 Nu-Stanadrd 431 9030 280 A 911 4CA
SN 128 98.4 460 326 415 706
SL 193 97.5 375 Xtra-Dense 421 890 9033 380 C 1211 4BA
SM 300 96.2 575
SH 390 95.0 750
T 220 97.2 905
R 432 94.5 1780 Multi-Strand 333 800
W 220 97.2 428 Wound
GS 160 96.7 5000 371

4. ISO Cerfiticate

High Toughness Knitmesh Demister , Heteromorphic Mist Eliminator Pads Durable
