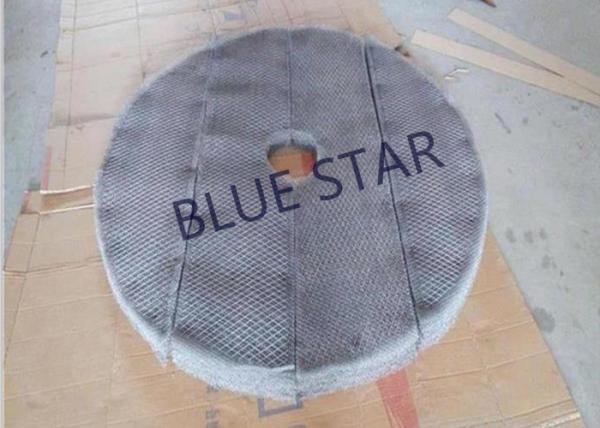

Stainless Steel Knitmesh Mist Eliminator/Wire Mesh Demister ,Round or Rectangle Shape

Size and structure can be customized according to customer's drawings.

1.what's demister pad

DEMISTER PAD is wire mesh blanket with or without frame used to remove process liquid carried over which from's during boiling vacuum evaporations or bubbling Process. it consists of multiple layers of knitted and crimped monofilament ( 0.254 mm) wire mesh fabric. The knitted and crimped mesh increases contact surface and porosity of fabric, prevents blocking and gives constant porosity throughout the metal due to this separation efficiency increases up to 99 % at lower pressure drop & gas velocity.

2. structure

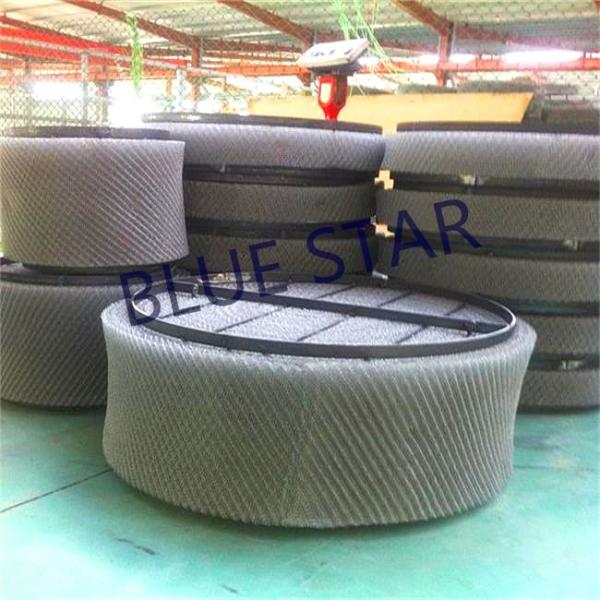

mesh pad+ grid(frame)

3. mesh pad material:

metal wire : 201 304 321 304A 316 304L 316L 2205 stainless steel wire,Titanium wire, Nickel wire, Monel,copper etc

plastic wire: PP/ TELFON(PTFE)/PE..

4.GRID (FRAME)

*EFFECT: Grids helps mesh blanket to remain fix on vessel cleat/rings to works suitably against fluctuated operation conditions

* MATERIAL: @(MESH PAD + ALL PARTS)----------------STAINLESS STEEL

@MESH PAD--------------------------------- --STAINLESS STEEL

DEMISTER FRAMEWORK+SUPPORT ELEMENTS----------LOW CARBON STEEL

@ MESH PAD---------------------------------METAL WIRE/PLASTIC WIRE

DEMISTER FRAMEWORK+SUPPORT ELEMENTS----------CORRESPONDING MEATL/ LOW CARBON STEEL OR PLASTIC

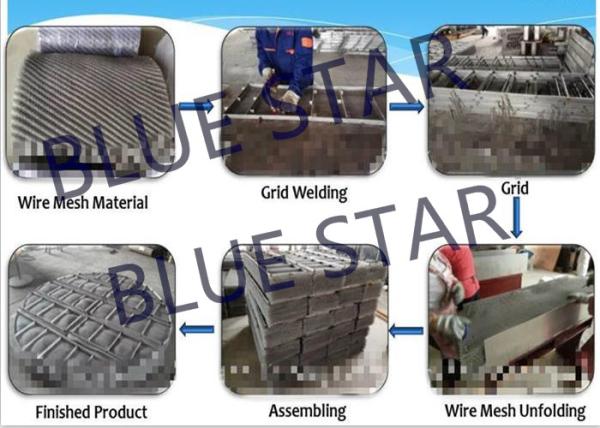

5. PRODUCING PROCESS

6. clafffication based on installation method

According to different installation method,demister can be divided into top-loading type and bottom-loading type,respectively called S and X for short

Screen defoaming device have tops, bottoms, DG200 - DG6400 and various non-standard screen defoaming,

7.Demister application
