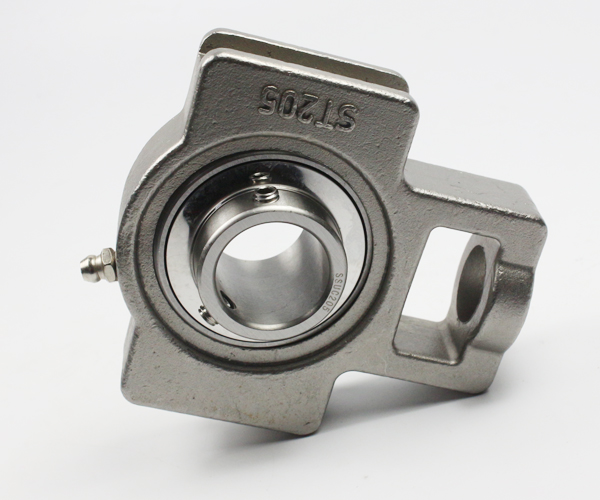

Ultrasonic Cleaning Equipment 420 Stainless Steel Pillow Block Bearings SUCT205
Ultrasonic Cleaning Equipment 420 Stainless Steel Pillow Block Bearings SUCT205
Ultrasonic Cleaning Equipment 420 Stainless Steel Pillow Block Bearings SUCT205
Ultrasonic Cleaning Equipment 420 Stainless Steel Pillow Block Bearings SUCT205
Specifications
Brand Name :
kentie
Model Number :
SUCT205
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
100
Price :
US$6.6
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
2-3 work days
Packaging Details :
Plastic tube and paper carton
Material :
420 stainless steel+202 stainless steel
Specification :
25*34.1*16mm
Weight :
0.81kg
Seals type :
ZZ shields
Retainer :
Nylon/steel
OEM :
Availible
Clearance :
C0,C2,C3,C5
Description

Ultrasonic Cleaning Equipment 420 Stainless Steel Pillow Block Bearings SUCT205


Product features
UCT205-16 Pillow Block ( ISO 9001:2000 )
Bearing Material: 440 stainless steel
Housing Material: 202 stainless steel
Screw: Two set screw with Grease nipple

Pillow Block Bearing SUCT205 has a combination of a stainless steel pillow block housing with an anti-rotation device with self-alignment and a set screw locking stainless steel insert bearing with a slinger seal design. This specific unit is a standard duty pillow block bearing with a wide inner ring and two set screws anda stainless steelunit with the standard base to center height with a grease fitting.

UCT205 Series Pillow Block Bearing is equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft.

Applications of Pillow Block Bearing SUCT205

suit a variety of applications, including packaging equipment, conveyor systems, agricultural equipment, construction plant, heat treatment equipment, forestry and marine equipment.

Specifications

Bearing Model SUCT205 bearing
Outer Diameter 34.1mm
Inner Bore 25mm
Width 16mm
Material SUS440+SUS202
Seals ZZ
Lubrication Oil/ Grease/Dry
Package Plastic tube

Our Advantages

1. Professional Stainless Steel Bearing manufacturer since 1998

2. High quality with ISO standards

3. Low noise, low vibration, smooth rotation

4. High corrosion resistance, 72 hours salt spray test

5. Free OEM

Detailed Pictures

Ultrasonic Cleaning Equipment 420 Stainless Steel Pillow Block Bearings SUCT205

Ultrasonic Cleaning Equipment 420 Stainless Steel Pillow Block Bearings SUCT205

Unit No. Dimensions 　　 mm Bearing No. Housing No. Weight (kg)
d a e i g I s z t B n
UCFL201 12 113 90 15 11 25.5 12 33.3 37.5 31 12.7 UC201 FL201 0.45
UCFL202 15 113 90 15 11 25.5 12 33.3 37.5 31 12.7 UC202 FL202 0.44
UCFL203 17 113 90 15 11 25.5 12 33.3 37.5 31 12.7 UC203 FL203 0.43
UCFL204 20 113 90 15 11 25.5 12 33.3 37.5 31 12.7 UC204 FL204 0.41
UCFL205 25 130 99 16 13 27 16 35.7 40 34.1 14.3 UC205 FL205 0.58
UCFL206 30 148 117 18 13 31 16 40.2 44.5 38.1 15.9 UC206 FL206 0.86
UCFL207 35 161 130 19 14 34 16 44.4 48.5 42.9 17.5 UC207 FL207 1.08
UCFL208 40 175 144 21 14 36 16 51.2 55.5 49.2 19 UC208 FL208 1.44
UCFL209 45 188 148 22 15 38 19 52.2 56.5 49.2 19 UC2059 FL209 1.74
UCFL210 50 197 157 22 15 40 19 54.6 59.5 51.6 19 UC210 FL210 2.1
UCFL211 55 224 184 25 18 43 19 58.4 63 55.6 22.2 UC211 FL211 2.91
UCFL212 60 250 202 29 18 48 23 68.7 73.5 65.1 25.4 UC212 FL212 3.74
UCFL213 65 258 210 30 22 50 23 69.7 74.5 65.1 25.4 UC213 FL213 4.57
UCFL214 70 265 216 31 22 54 23 75.4 74.6 30.2 UC214 FL214 5.11
UCFL215 75 275 225 34 22 56 23 78.5 77.8 33.3 UC215 FL215 5.37
UCFL216 80 290 233 34 22 58 25 83.3 82.6 33.3 UC216 FL216 7.2
UCFL217 85 305 248 36 24 63 25 87.6 85.7 34.1 UC217 FL217 8.61
UCFL218 90 320 265 40 24 68 25 96.3 96 39.7 UC218 FL218 10.51
