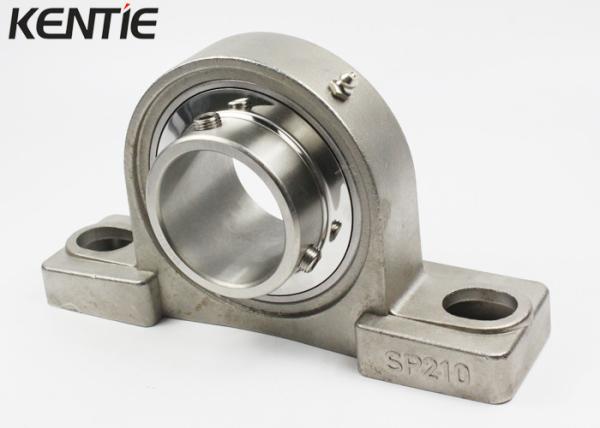

Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm
Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm
Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm
Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm
Specifications
Brand Name :
kentie
Model Number :
SUCP210
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
100
Price :
US$19.2
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
2-3 work days
Packaging Details :
Plastic tube and paper carton
Material :
420 stainless steel+202 stainless steel
Specification :
50*51.6*200mm
Weight :
2.66kg
Seals type :
ZZ shields
Retainer :
Nylon/steel
OEM :
Availible
Clearance :
C0,C2,C3,C5
Description

Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm

Pillow Block Bearing SUCP210 has a combination of a stainless steel pillow block housing with an anti-rotation device with self-alignment and a set screw locking stainless steel insert bearing with a slinger seal design. This specific unit is a standard duty pillow block bearing with a wide inner ring and two set screws anda stainless steelunit with the standard base to center height with a grease fitting.

UCP210 Series Pillow Block Bearing is equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft.

Applications of Pillow Block Bearing UCP210

suit a variety of applications, including packaging equipment, conveyor systems, agricultural equipment, construction plant, heat treatment equipment, forestry and marine equipment.

Specifications

Bearing Model SUCP210 bearing
Outer Diameter 51.6mm
Inner Bore 50mm
Width 200mm
Material SUS440+SUS202
Seals ZZ
Lubrication Oil/ Grease/Dry
Package Plastic tube

Our Advantages

1. Professional Stainless Steel Bearing manufacturer since 1998

2. High quality with ISO standards

3. Low noise, low vibration, smooth rotation

4. High corrosion resistance, 72 hours salt spray test

5. Free OEM

Detailed Pictures

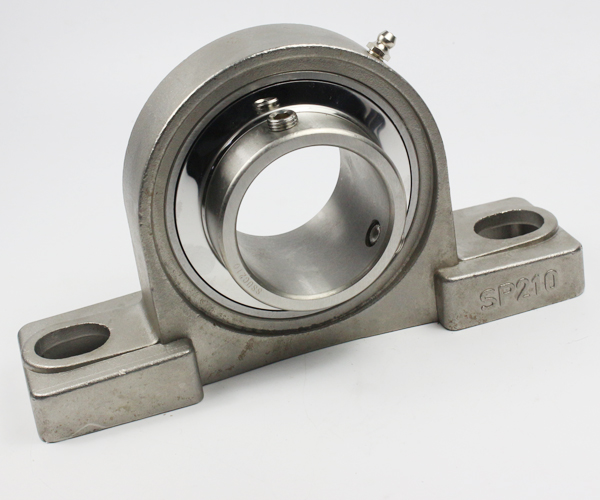

Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm

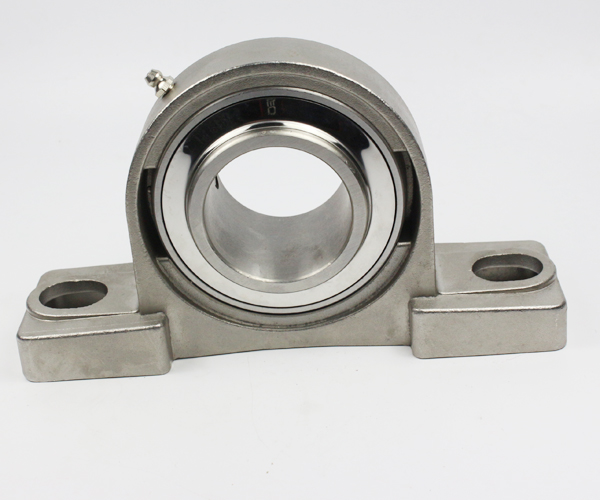

Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm

Large Stainless Steel Pillow Block Bearing SUCP210 Anti - Oxidation 50 * 51.6 * 200mm

As a professional bearing manufacturer, we produce wide range deep groove ball bearings, especially the stainless steel deep groove ball bearings. All your demands for bearings will be satisfied.

Unit No. Dimensions 　mm Bolt Size Bearing No. Housing No. Weight
d h a e b s1 s2 g w t B n mm (kg)
UCP201 12 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10 UC201 P201 0.69
UCP202 15 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10 UC202 P202 0.69
UCP203 17 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10 UC203 P203 0.68
UCP204 20 33.3 127 95 38 13 19 15 71 48 34.1 14.3 M10 UC204 P204 0.66
UCP205 25 36.5 140 105 38 13 19 15 71 48 34.1 14.3 M10 UC205 P205 0.81
UCP206 30 42.9 165 121 48 17 20 17 84 53 38.1 15.9 M14 UC206 P206 1.24
UCP207 35 47.6 167 127 48 17 20 18 93 59.5 42.9 17.5 M14 UC207 P207 1.58
UCP208 40 49.2 184 137 54 17 20 18 100 69 49.2 19 M14 UC208 P208 1.89
UCP209 45 54 190 146 54 17 20 20 106 69 49.2 19 M14 UC209 P209 2.14
UCP210 50 57.2 200 159 60 20 23 21 113 74.5 51.6 19 M16 UC210 P210 2.66
UCP211 55 63.5 219 171 60 20 23 23 125 76 55.6 22.2 M16 UC211 P211 3.31
UCP212 60 69.8 241 184 70 20 23 25 138 89 65.1 25.4 M16 UC212 P212 4.9
UCP213 65 76.2 265 203 70 25 28 27 150 89 65.1 25.4 M20 UC213 P213 5.15
UCP214 70 79.4 266 210 72 25 28 27 156 74.6 30.2 M20 UC214 P214 6.2
UCP215 75 82.6 275 217 74 25 28 28 162 77.8 33.3 M20 UC215 P215 7.16
UCP216 80 88.9 292 232 78 25 28 30 174 82.6 33.3 M20 UC216 P216 8.1
UCP217 85 95.2 310 247 83 25 28 32 185 85.7 34.1 M20 UC217 P217 9.81
UCP218 90 101.6 327 262 88 27 30 33 198 96 39.7 M22 UC218
