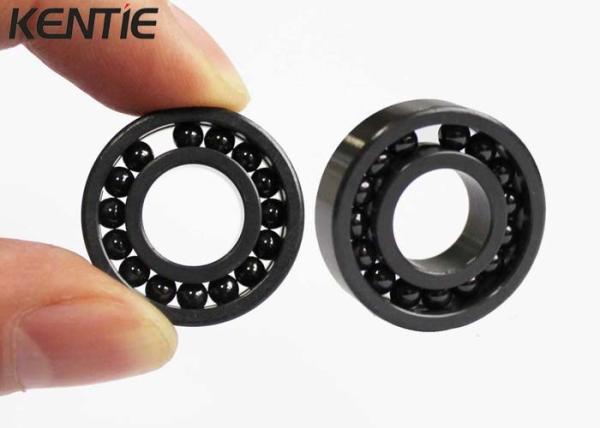

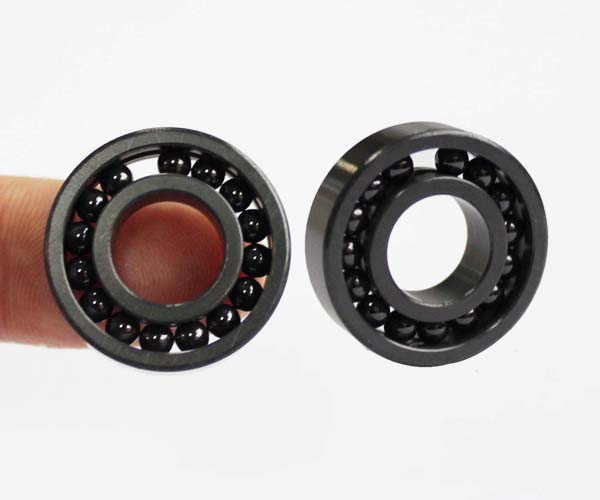

High Load Open Ceramic Speed Bearings , Standard 6703 Small Ceramic Bearings
High Load Open Ceramic Speed Bearings , Standard 6703 Small Ceramic Bearings
High Load Open Ceramic Speed Bearings , Standard 6703 Small Ceramic Bearings
High Load Open Ceramic Speed Bearings , Standard 6703 Small Ceramic Bearings
Specifications
Brand Name :
kentie
Model Number :
6703
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
100
Price :
US$14
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
2-3 work days
Packaging Details :
Plastic tube and paper carton
Material :
Si3n4
Specification :
17*23*4mm
Weight :
0.004kg
Seals type :
Open
Retainer :
no
OEM :
Availible
Clearance :
C0,C2,C3,C5
Description

High Load Open Ceramic Speed Bearings , Standard 6703 Small Ceramic Bearings

Features of Ceramic Bearing 6703

* Light weight with low density -> decrease in centrifugal load.
* Excellent corrosion resistance.
* Strong at high temperature

* Stable in chemicals. (Acid & Alkali)
* Non-conducted
* Semi-permanent life

* Non-greased and self-lubricating

Applications of Ceramic Bearing 6703

Widely used in following industries: chemical, semiconductor, valve & pump, food, electronic, medical, vacuum, refining, insulation, etc.

Specifications

Bearing Model 6703 bearing
Outer Diameter 23mm
Inner Bore 17mm
Width 4mm
Material Si3n4
Seals open
Lubrication Oil/ Grease/Dry
Package Plastic tube

Bearing d D B Chamfer Cr Cor Weight
NO mm inch mm inch mm inch mm inch N N kg
6700 10 0.3937 15 0.5906 4 0.1575 0.1 0.004 800 390 0.0019
6701 12 0.4724 18 0.7087 4 0.1575 0.2 0.008 910 530 0.0031
6702 15 0.5906 21 0.8268 4 0.1575 0.2 0.008 850 490 0.0036
6703 17 0.6693 23 0.9055 4 0.1575 0.2 0.008 960 610 0.004
6704 20 0.7874 27 1.063 4 0.1575 0.2 0.008 1030 720 0.0059
6705 25 0.9843 32 1.2598 4 0.1575 0.2 0.008 1090 830 0.007
6706 30 1.1811 37 1.4567 4 0.1575 0.2 0.008 1170 980 0.0083
6707 35 1.378 44 1.7323 5 0.1969 0.3 0.012 1850 1630 0.015
6708 40 1.5748 50 1.9685 6 0.2362 0.3 0.012 2519 2234 0.023
6709 45 1.7717 55 2.1654 6 0.2362 0.3 0.012 2577 2401 0.025
6710 50 1.9685 62 2.4409 6 0.2362 0.3 0.012 2666 2636 0.034
6711 55 2.1654 68 2.6772 7 0.2756 0.3 0.012 2880 3070 0.055

Company Information

Quality certificate type: ISO9001, SGS, ROHS,CE

Year started: 1998 Number of production equipments:101

Company activity: Manufacturer

Number of testing equipments:34

Registered capital: RMB 500 million

Number of R&D Staff:14

Factory area:8000 square meters

Number of Employees:127

Product range (Dimension):1-120mm

Inventory level: 5 million

Hope to build win-win cooperation with you.
