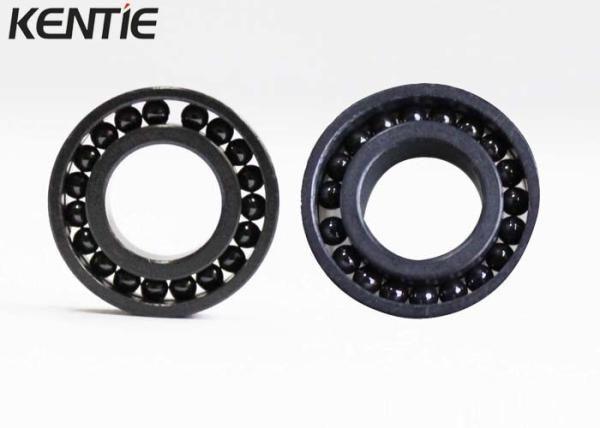

High Temperature 6909 Si3n4 Ceramic Bearings 45 * 68 * 12mm Dynamic Load 13400KN
High Temperature 6909 Si3n4 Ceramic Bearings 45 * 68 * 12mm Dynamic Load 13400KN
High Temperature 6909 Si3n4 Ceramic Bearings 45 * 68 * 12mm Dynamic Load 13400KN
High Temperature 6909 Si3n4 Ceramic Bearings 45 * 68 * 12mm Dynamic Load 13400KN
Specifications
Brand Name :
kentie
Model Number :
6909
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
100
Price :
US$14
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
2-3 work days
Packaging Details :
Plastic tube and paper carton
Material :
Si3n4
Specification :
45*68*12mm
Weight :
0.128kg
Seals type :
Open
Retainer :
no
OEM :
Availible
Clearance :
C0,C2,C3,C5
Description

High Temperature 6909 Si3n4 Ceramic Bearings 45 * 68 * 12mm Dynamic Load 13400KN

Si3n4 all ceramic bearings 6909, the use of imported raw materials processing. Using PTFE or PEEK holder. Dynamic load: 13400KN, static load: 9500KN. Limit speed(RPM):7600. temperature: 600 ℃. Low temperature -130℃. Full ball structure tolerance temperature 800 ℃.

Specifications

Bearing Model 6909 bearing
Outer Diameter 68mm
Inner Bore 45mm
Width 12mm
Material Si3n4
Seals open
Lubrication Oil/ Grease/Dry
Package Plastic tube

Features of Ceramic Bearing 6909

* Light weight with low density -> decrease in centrifugal load.
* Excellent corrosion resistance.
* Strong at high temperature

* Stable in chemicals. (Acid & Alkali)
* Non-conducted
* Semi-permanent life

* Non-greased and self-lubricating

Si3n4Full Ceramic Bearings

Bearing NO Bore(d) Diameter (D) Width (B) Chamfer Steel Balls Load Rating Weight
mm inch mm inch mm inch mm inch Number Size Cr N Cor N KG
694 4 0.1575 11 0.4331 4 0.1575 0.15 0.006 7 2 960 345 0.0017
695 5 0.1969 13 0.5118 4 0.1575 0.2 0.008 8 2 1080 430 0.0023
696 6 0.2362 15 0.5906 5 0.1969 0.2 0.008 8 2.381 1730 670 0.0036
697 7 0.2756 17 0.6693 5 0.1969 0.3 0.012 9 2.381 1600 710 0.005
698 8 0.315 19 0.748 6 0.2362 0.3 0.012 7 3.5 2240 910 0.0076
699 9 0.3543 20 0.7874 6 0.2362 0.3 0.012 9 2.381 1720 840 0.0085
6900 10 0.3937 22 0.8661 6 0.2362 0.3 0.012 12 2.381 2700 1270 0.01
6901 12 0.4724 24 0.9449 6 0.2362 0.3 0.012 9 3.5 2890 1640 0.012
6902 15 0.5906 28 1.1024 7 0.2756 0.3 0.012 10 3.969 4320 2250 0.018
6903 17 0.6693 30 1.1811 7 0.2756 0.3 0.012 11 3.5 4590 2550 0.019
6904 20 0.7874 37 1.4567 9 0.3543 0.3 0.012 11 3.969 6370 3680 0.038
6905 25 0.9843 42 1.6535 9 0.3543 0.3 0.012 13 3.175 6660 4180 0.044
6906 30 1.1811 47 1.8504 9 0.3543 0.3 0.012 14 4.763 7240 5010 0.05
6907 35 1.378 55 2.1654 10 0.3937 0.6 0.024 14 5.556 10390 7160 0.75
6908 40 1.5748 42 2.4409 12 0.4724 0.6 0.024 14 6.747 13020 9200 0.118
6909 45 1.7717 68 2.6772 12 0.4724 0.6 0.024 15 6.747 13490 10130 0.128
6910 50 1.9685 72 2.8346 12 0.4724 0.6 0.024 16 6.747 13900 10900 0.133
Company Information

Quality certificate type: ISO9001, SGS, ROHS,CE

Year started: 1998 Number of production equipments:101

Company activity: Manufacturer

Number of testing equipments:34

Registered capital: RMB 500 million

Number of R&D Staff:14

Factory area:8000 square meters

Number of Employees:127

Product range (Dimension):1-120mm

Inventory level: 5 million

Hope to build win-win cooperation with you.
