696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance
696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance
696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance
696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance
Specifications
Brand Name :
Kentie
Model Number :
696ZZ
Certification :
CE/SGS/ISO/Germany Ryan
Place of Origin :
China
MOQ :
100pcs
Price :
US$0.244
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500,000pcs per month
Delivery Time :
2-3 work days
Packaging Details :
Plastic tube and paper carton
Material :
420 stainless steel
Specification :
6*15*5mm
Dynamic Load Rating :
1.35KN
Static Load Rating :
0.53KN
Speed :
32000rpm
Weight :
0.0038kg
Seals type :
Metal Shields
Retainer :
Nylon/steel
OEM :
Availible
Clearance :
ABEC-1
Description

696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance

Stainless steel bearing S696ZZ can be used in the working condition of underwater and damp heat enviroment.
Stainless steel has the ability of resistance to atmospheric oxidation-namely,stainless,also has in the medium containing acid,alkali,salt corrosion-namely,the ability of corrosion resistance.But the size of its ability to resisit corrosion was with the chemical composition of steel itself,and each state,using conditions and environmental medium type and change.

Specifications

Bearing Model S696ZZ bearing
Outer Diameter 15mm
Inner Bore 6mm
Width 5mm
Material Stainless Steel 420
Seals ZZ
Lubrication Grease
Package Plastic tube

We specialized in manufacturing bearings more than 15 years, and are able to supply good quality bearings,mainly for us,Europe,Australian,and Canada,South American,New Zealand etc.market.
If you have any interes in this bearing, please feel free to send us an inquiry.Thanks!

Our Advantages

1. Professional Stainless Steel Bearing manufacturer since 1998

2. High quality with ISO standards

3. Low noise, low vibration, smooth rotation

4. High corrosion resistance, 72 hours salt spray test

5. Free OEM

Bearing NO Bore(d) Diameter (D) Width (B) Chamfer Steel Balls Load Rating Weight
mm inch mm inch mm inch mm inch Number Size Cr N Cor N KG
694 4 0.1575 11 0.4331 4 0.1575 0.15 0.006 7 2 960 345 0.0017
695 5 0.1969 13 0.5118 4 0.1575 0.2 0.008 8 2 1080 430 0.0023
696 6 0.2362 15 0.5906 5 0.1969 0.2 0.008 8 2.381 1730 670 0.0036
697 7 0.2756 17 0.6693 5 0.1969 0.3 0.012 9 2.381 1600 710 0.005
698 8 0.315 19 0.748 6 0.2362 0.3 0.012 7 3.5 2240 910 0.0076
699 9 0.3543 20 0.7874 6 0.2362 0.3 0.012 9 2.381 1720 840 0.0085
6900 10 0.3937 22 0.8661 6 0.2362 0.3 0.012 12 2.381 2700 1270 0.01
6901 12 0.4724 24 0.9449 6 0.2362 0.3 0.012 9 3.5 2890 1640 0.012
6902 15 0.5906 28 1.1024 7 0.2756 0.3 0.012 10 3.969 4320 2250 0.018
6903 17 0.6693 30 1.1811 7 0.2756 0.3 0.012 11 3.5 4590 2550 0.019
6904 20 0.7874 37 1.4567 9 0.3543 0.3 0.012 11 3.969 6370 3680 0.038
6905 25 0.9843 42 1.6535 9 0.3543 0.3 0.012 13 3.175 6660 4180 0.044
6906 30 1.1811 47 1.8504 9 0.3543 0.3 0.012 14 4.763 7240 5010 0.05
6907 35 1.378 55 2.1654 10 0.3937 0.6 0.024 14 5.556 10390 7160 0.75
6908 40 1.5748 42 2.4409 12 0.4724 0.6 0.024 14 6.747 13020 9200 0.118
6909 45 1.7717 68 2.6772 12 0.4724 0.6 0.024 15 6.747 13490 10130 0.128
6910 50 1.9685 72 2.8346 12 0.4724 0.6 0.024 16 6.747 13900 10900 0.133

Detailed Pictures

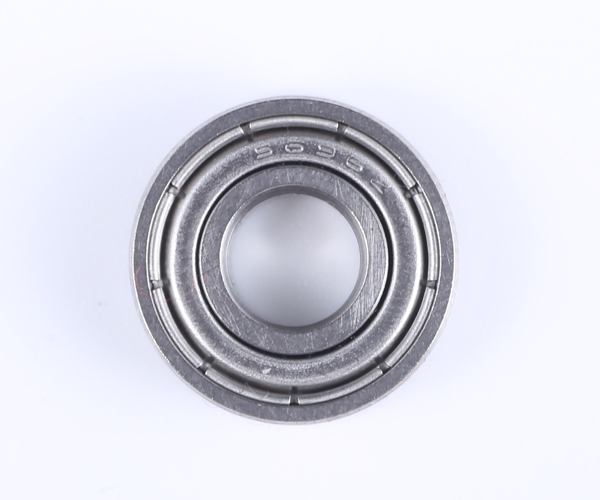

696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance

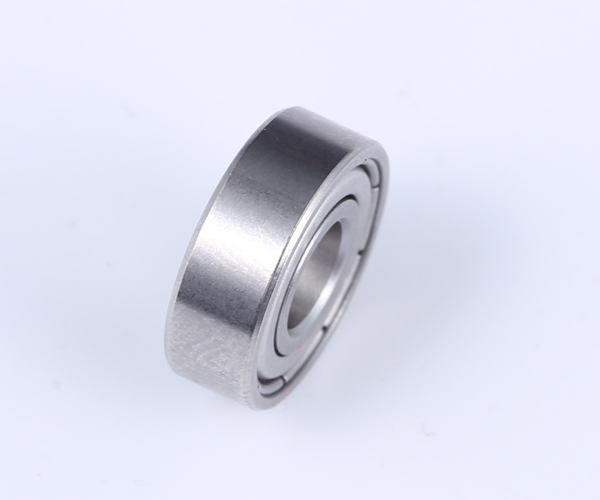

696ZZ Stainless Steel Deep Groove Ball Bearing Dynamic Load 1.35KN Chemical Resistance
