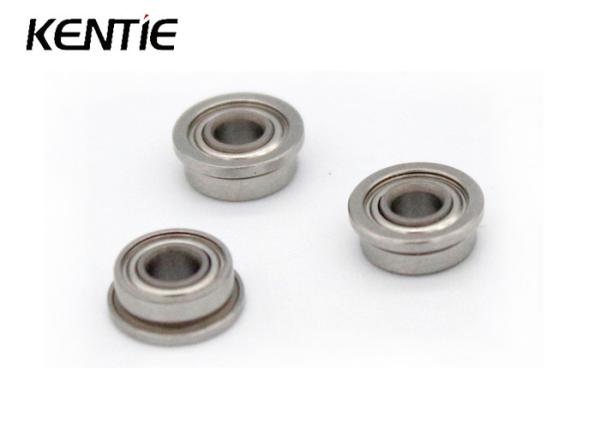

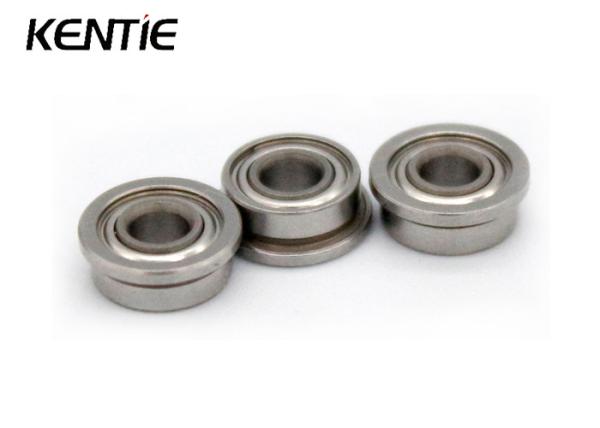

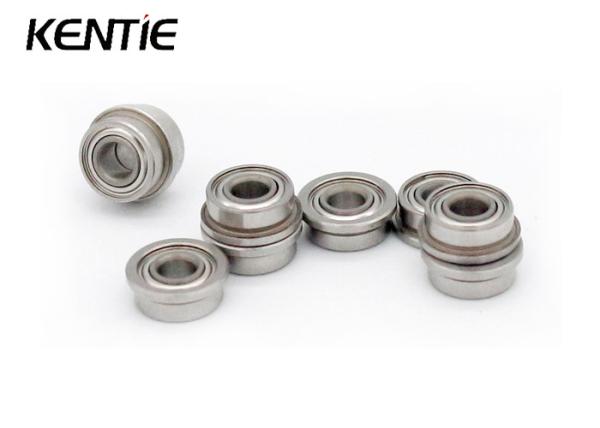

F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
Specifications
Brand Name :
kentie
Model Number :
KT1600289-F683ZZ
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
10
Price :
0.12
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
5000000pcs per month
Delivery Time :
3-4 work days
Packaging Details :
10pcs per plastic tube, 50pcs per white box, 2000pcs per carton, cartone size: 26x19x19cm
Produce name :
F683ZZ bearing
Material :
chrome steel
Specification :
3x7/8x3mm
Single Weight :
0.001kg
Lubrication :
Grease
Precision :
P0
Description

F683ZZ 3x7x3mm chrome steel deep groove ball flange bearing for lamps and lanterns

The product is mainly used in machine lamps, crushing equipment, automatic spray gun, welding table, winding and twisting machine, bending machine, mud scraper, single-stage reducer, ironing equipment washing equipment, bottle blowing machine, dairy machinery, interwall heat exchanger, crane, vacuum pump, fatigue testing machine, and so on.

Deep groove ball bearing with flange
Model: F683ZZ
Inside diameter: 3
Outer diameter: 7
Flange outer diameter with cover: 8.1
Thickness: 2.0
Cover thickness: 3.0
Flange thickness: 0.5
Thickness of flange with cover: 0.8
Overall dimension (mm) r(1) chamfer: 0.10
Overall dimension (mm) r1(1) chamfer with cover: 0.10
Cr rated dynamic load (N) : 390
Cr rated static load (N) : 130
Cr rated dynamic load (kg) : 40
Cr rated static load (kg) : 13
Limit speed
Grease lubrication: 63000
Limit speed Oil lubrication: 75000
Installation size (mm) da: 3.8
Installation size (mm) db: 4
Installation dimension (mm) ra: 0.10
Installation size (mm) rb: 0.10

F683ZZ 3x7x3mm Chrome Steel Deep Groove Ball Flange Bearing For Lamps And Lanterns
