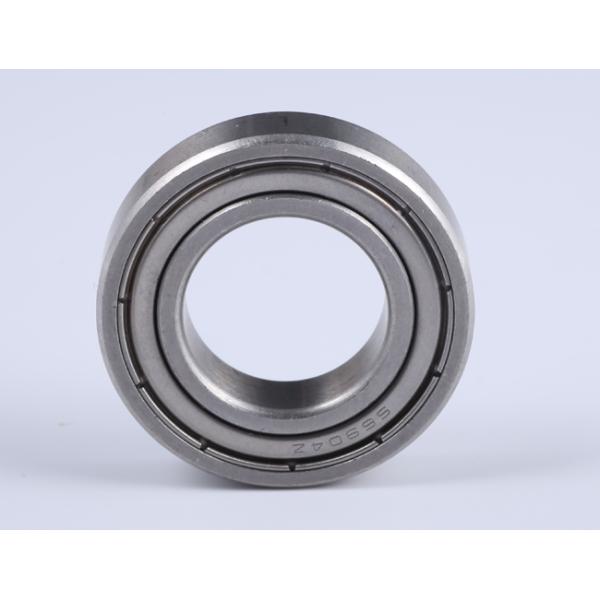

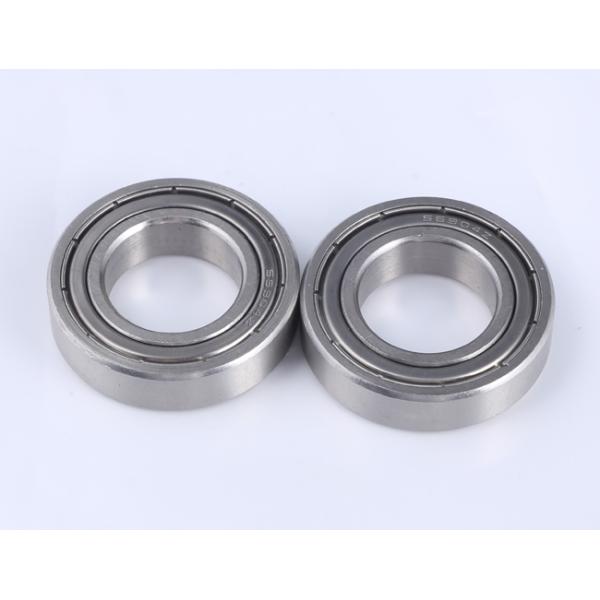

Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm
Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm
Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm
Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm
Specifications
Brand Name :
Yaqin
Model Number :
S6904ZZ
Certification :
CE/SGS/ISO/German Ryan
Place of Origin :
China
MOQ :
10pcs
Price :
US$1.3 per piece
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000000pcs per month
Delivery Time :
2-3 work days
Packaging Details :
plastic tube+white box+paper caton
Product name :
ball bearing S6904ZZ
Material :
304 stainless steel
Specification :
20*37*9mm
Lubrication :
Grease
Salt Spay Test :
168 hours
Cage material :
304 stainless steel
Weight :
36g
Description

Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm

304 stainless steel is the most widely used type of chromium nickel stainless steel. As a kind of widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; punching, bending and other heat processing properties, no heat treatment hardening phenomenon (using temperature -196 to 800). Corrosion resistance in atmosphere, if it is an industrial atmosphere or heavily polluted area, needs cleaning in time to avoid corrosion. It is suitable for the processing, storage and transportation of food. It has good processability and weldability. Plate heat exchangers, bellows, household items (1 and 2 types of tableware, cupboards, indoor pipelines, hot water heaters, boilers, bathtubs), auto parts (windshield wipers, mufflers, moulds), medical appliances, building materials, chemistry, food industry, agriculture, ship parts, etc. 304 stainless steel is a national approved food grade stainless steel.

Specifications

Bearing Model S6904ZZ bearing
Outer Diameter 37mm
Inner Bore 20mm
Width 9mm
Material Stainless Steel 304
Seals ZZ
Lubrication Grease
Package Plastic tube

Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm

Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm

Bearing NO Bore(d) Diameter (D) Width (B) Chamfer Steel Balls Load Rating Weight
mm inch mm inch mm inch mm inch Number Size Cr N Cor N KG
694 4 0.1575 11 0.4331 4 0.1575 0.15 0.006 7 2 960 345 0.0017
695 5 0.1969 13 0.5118 4 0.1575 0.2 0.008 8 2 1080 430 0.0023
696 6 0.2362 15 0.5906 5 0.1969 0.2 0.008 8 2.381 1730 670 0.0036
697 7 0.2756 17 0.6693 5 0.1969 0.3 0.012 9 2.381 1600 710 0.005
698 8 0.315 19 0.748 6 0.2362 0.3 0.012 7 3.5 2240 910 0.0076
699 9 0.3543 20 0.7874 6 0.2362 0.3 0.012 9 2.381 1720 840 0.0085
6900 10 0.3937 22 0.8661 6 0.2362 0.3 0.012 12 2.381 2700 1270 0.01
6901 12 0.4724 24 0.9449 6 0.2362 0.3 0.012 9 3.5 2890 1640 0.012
6902 15 0.5906 28 1.1024 7 0.2756 0.3 0.012 10 3.969 4320 2250 0.018
6903 17 0.6693 30 1.1811 7 0.2756 0.3 0.012 11 3.5 4590 2550 0.019
6904 20 0.7874 37 1.4567 9 0.3543 0.3 0.012 11 3.969 6370 3680 0.038
6905 25 0.9843 42 1.6535 9 0.3543 0.3 0.012 13 3.175 6660 4180 0.044
6906 30 1.1811 47 1.8504 9 0.3543 0.3 0.012 14 4.763 7240 5010 0.05
6907 35 1.378 55 2.1654 10 0.3937 0.6 0.024 14 5.556 10390 7160 0.75
6908 40 1.5748 42 2.4409 12 0.4724 0.6 0.024 14 6.747 13020 9200 0.118
6909 45 1.7717 68 2.6772 12 0.4724 0.6 0.024 15 6.747 13490 10130 0.128
6910 50 1.9685 72 2.8346 12 0.4724 0.6 0.024 16 6.747 13900 10900

0.133

Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm

Supply underwater robot 304 stainless steel ball bearing S6904ZZ with 20*37*9mm
