316L 10 Inch 5 Micron Candle Filter Cartridge For Polyester Filter
316L 10 Inch 5 Micron Candle Filter Cartridge For Polyester Filter
316L 10 Inch 5 Micron Candle Filter Cartridge For Polyester Filter
316L 10 Inch 5 Micron Candle Filter Cartridge For Polyester Filter
316L 10 Inch 5 Micron Candle Filter Cartridge For Polyester Filter
316L 10 Inch 5 Micron Candle Filter Cartridge For Polyester Filter
Specifications
Brand Name :
XinLi
Model Number :
Pleated Filter
Certification :
ISO9001
Place of Origin :
HeNan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000+Pcs+Per Month
Delivery Time :
20-25 Work days
Packaging Details :
Plastic Bubble Film + Wooden Box + Certificates, As The Clients Requirement
Working Temperature :
300℃
Material :
304,316,316L
Micron :
1-300um
Length :
10,20,30,40Inch and customized size
Diameter :
40,50,60,100Inch and customized size
Receiving Capacity :
16.9-41mg/cm2
Working Pressure :
30Mpa
Color :
Silver
Description

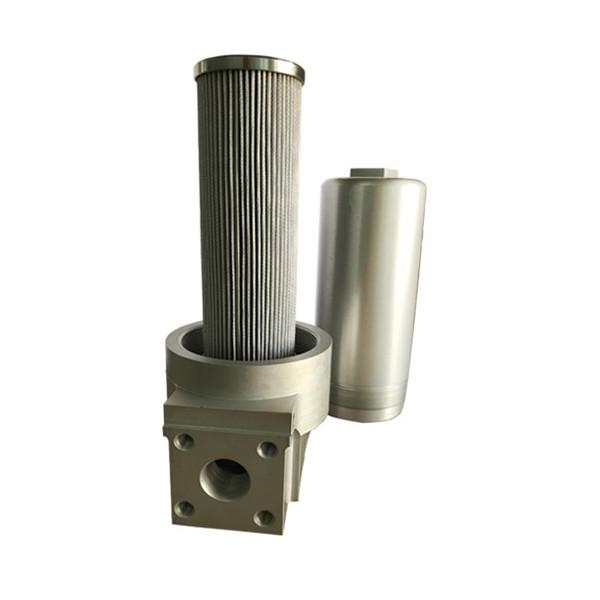

316L 10 Inch 5 Micron Candle Filter / Filter Cartridge For Polyester Filter

Product Introduction:

1. Filter material: stainless steel sintered fiber felt stainless steel wire mesh

2. Core structure:

Pleated stainless steel sintered fiber felt(control filtering rate) and double protective mesh

3. Filter rate: 5-60um (stainless steel fiber felt)

Filter Elements Adaptors:

1. Standard Adaptors (222,220,226)
2. Fast Interface Connector
3. Threaded Connector
4. Flange
5. Tire Rod
6. Other Special Adaptors

Application:

Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.

Product Features:

1. Large filtration are (5-10times) as normal cartridge shape filter element;
2. High filtering efficiency;
3. Simple technical process as gas is filtered directly.
4. Good air permeability,stable filter rating,no leakage.
5. Reusable,easyinstallation,high working efficiency,long working life.

Technical Prameters:

Product

Type

 Material

Micron

(um)

Outer

Diameter

(mm)

 Length Connector O-Ring/Gasket

Filter

Media
Pleated SS304

1,2,5,10,15,20,

25,30,40,50,Etc

 30 5’’ 1’’ BSP Threaded Silicore Stainless Steel Wire Mesh
SS316L 60 10’’ NIL-Cut Ends Buna-N Mesh + Sintered Fiber Felt
Other 65 20’’ DOE Viton
80 30’’ 222/Seal Teflon
85 40’’ 226/Seal

Ethylene

Propylene

The above options are freely combined, For Example:

Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh

Notice:It also can be customized according to your requirerment
