Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Metal Fiber Stainless Steel Filter Element Leaf Filter Disc 99% Efficiency
Specifications
Brand Name :
Xinli
Model Number :
XLLFD
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000pcs/month
Delivery Time :
According to quantity
Packaging Details :
Air bubble foam + wooden case
Condition :
New
After-sales service provided :
Online support
Efficiency :
99%
Weight :
Standard Weight
Standard hub :
Hard, Soft, and Semi-hard
Porosity :
5um ~ 80um
Medium material :
Stainless steel sintered fiber
Product name :
Metal Fiber Leaf Filter Disc Metal Filter Element For Polymer Film Filtration
Description

Metal Fiber Leaf Filter Disc Metal Filter Element For Polymer Film Filtration

Product description:

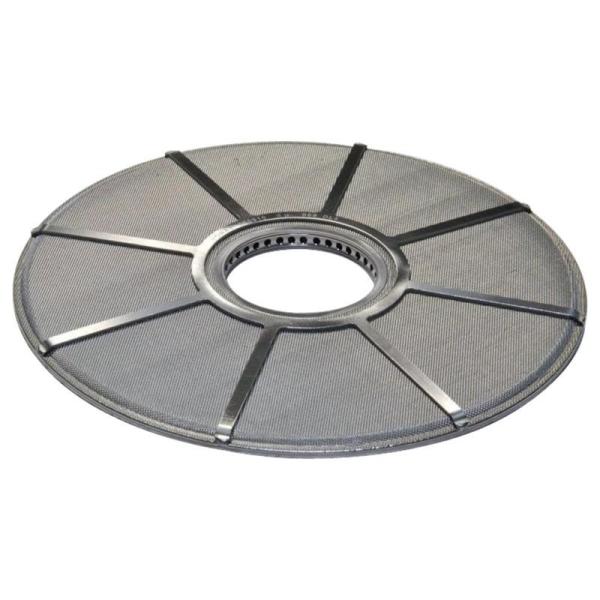

The leaf filter disc is made of sintered metal wire mesh laminates or sintered metal non-woven fiber felt medium. It is designed for critical hot melt polymer filtration applications.

Product structure:

The leaf filter disc consists of 5 parts: Multihole ring + Star support frame + Filter medium + Perforated sheet + Woven wire mesh. And standard hub are hard, soft, and semi-hard.

Product feature:

1. High viscosity and large flow

2. Good cleaning performance

3. Long service life

Technical parameters:

6inch 7inch 10inch 12inch Pictures
OD(mm) 152.4 177.8 254 304.8
ID(mm) 38.2 85 85 85
63.5 47.6 63.5
47.6
38.2
Remarks: Such as the size of OD127mm, OD203mm, OD297mm can also be customized

Product gasket:

Matching gaskets are necessary, usually stainless steel gaskets or sintered metal fiber gaskets. If there are other material requirements, that is not a problem.

Main application:

Polyester film, PA, PBT, PE, LDPE, PC, PEEK, PET, BOPET, PP, BOPP, PMMA, Carbon-Fiber, Fiber, Resin, Sheet, EVA

Production and Testing site:

Packaging:
