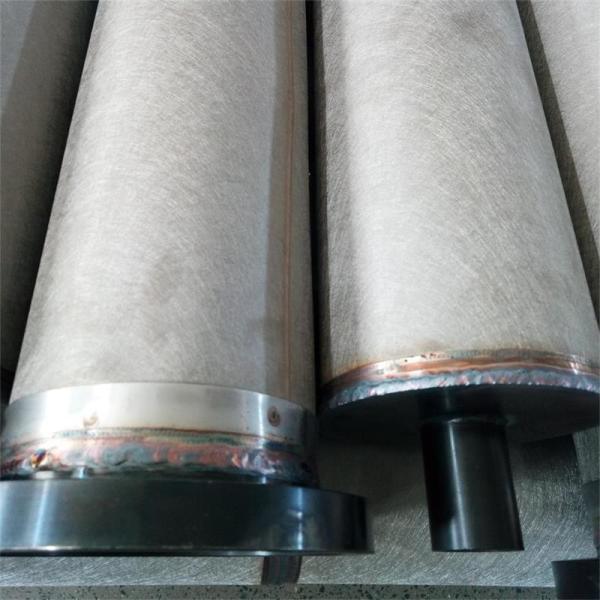

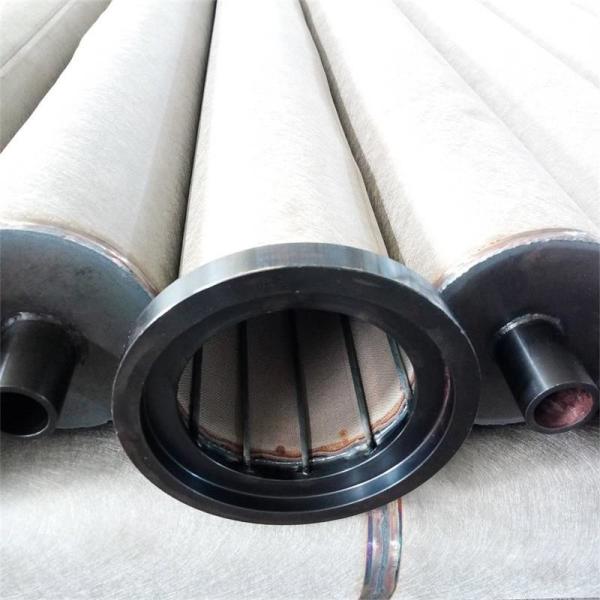

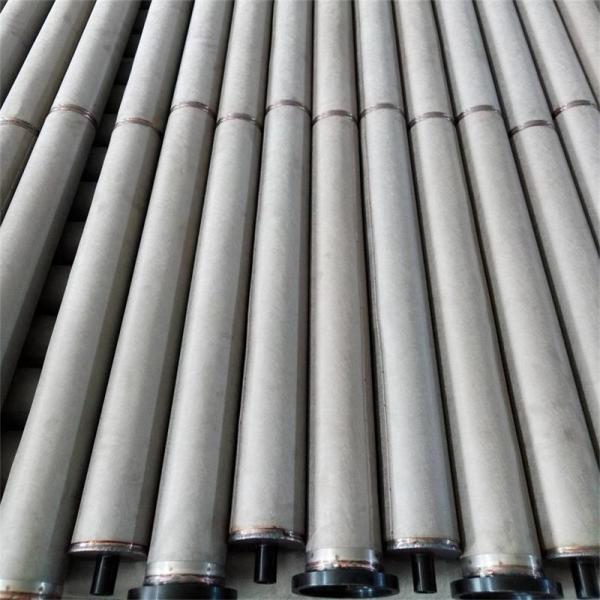

10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal
Specifications
Brand Name :
Xinli
Model Number :
SFF
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 pcs
Delivery Time :
According to quantity
Packaging Details :
Air bubble foam + Wooden case + Square steel frame
Temperature :
400℃ or higher
Emission concentration :
5mg / Nm3
Backflush :
Online
Material :
SS316L, 310S, FeCrAl etc
Conductive :
Avoid dust explosion caused by static electricity
Working life :
More than 3 years
Size :
Standard or Customized
Wind speed :
≥1 m/min
Description

10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite Dust Removal

Production description:
It is made of stainless steel 316L fibers with a micron diameter through non-woven laying, stacking, and high-temperature sintering, and then rolled and welded. Usually, the micron rating is 5um, 10um, 15um.

Effectively avoids the disadvantages of non-woven filter bags that are not resistant to high temperature, ceramic filter elements and sintered powder elements are brittle.





Product feature:
1. High temperature resistance(400 ℃), strong thermal shock resistance, corrosion resistance, high strength
2. Handling high wind speed (≥1 m/min)
​3. High interception efficiency, emission concentration can be lower than 5mg / Nm3
4. Good air permeability, reduced initial pressure, low energy consumption
5. Online backflush and offline cleaning, good regeneration effect
6. Long working life


Technical parameters:

Product ID

OD

(mm)

Length

(mm)

Filtration area

(m2)

 Supporting tube

Temperature

(°C)
XLMFF-1500 130/160 1500 0.61 / 0.75 Perforated tube/ Support cage <400
XLMFF-3000 3000 1.22 / 1.50
XLMFF-4000 4000 1.63 / 2.01
XLMFF-5000 5000 2.04 / 2.51
XLMFF-6000 6000 2.45 / 3.01
XLMFF-7000 7000 2.85 / 3.51



Main application:
1. Hot gas filtration during the production of Alumina Oxide
2. Catalyst or precious metal recovery in hot gas processes
3. Power,Steel,Cement,Glass,Chemical,Metallurgical Industry
4. Biomass energy
5.The desulfurization denitration processes


Packaging:
