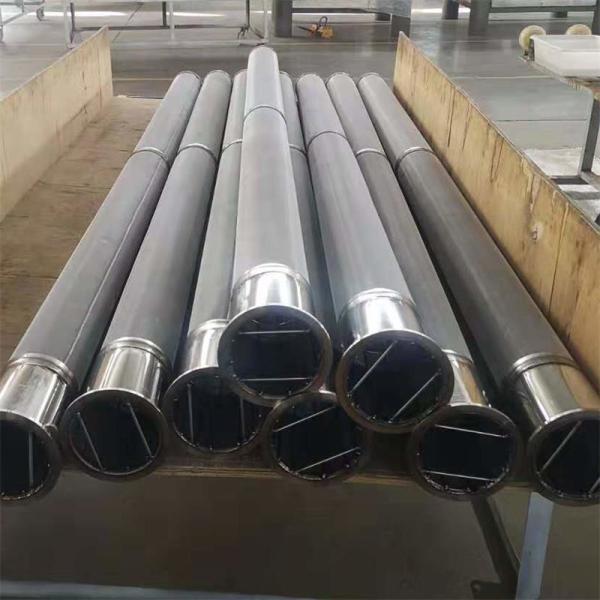

Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing
Specifications
Brand Name :
Xinli
Model Number :
SFMF
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 pcs
Delivery Time :
According to quantity
Packaging Details :
Air bubble foam + Wooden case + Square steel frame
Backflush :
Online
Temperature :
400℃ or higher
Wind speed :
≥1 m/min
Material :
SS316L, 310S, FeCrAl etc
Conductive :
Avoid dust explosion caused by static electricity
Emission concentration :
5mg / Nm3
Working life :
More than 3 years
Size :
Standard or Customized
Description

Stainless Steel 316L Fiber Hot Gas Filter Element For Dust-removing

Production description:
It is made of stainless steel 316L fibers with a micron diameter through non-woven laying, stacking, and high-temperature sintering, and then rolled and welded. Usually, the micron rating is 5um, 10um, 15um.




Technical parameters:

Product ID

OD

(mm)

Length

(mm)

Filtration area

(m2)

Supporting tube

Temperature

(°C)

XLMFF-1500130/16015000.61 / 0.75Perforated tube/ Support cage<400
XLMFF-300030001.22 / 1.50
XLMFF-400040001.63 / 2.01
XLMFF-500050002.04 / 2.51
XLMFF-600060002.45 / 3.01
XLMFF-700070002.85 / 3.51


Product feature:
1. High temperature resistance(400 ℃), strong thermal shock resistance, corrosion resistance, high strength
2. Handling high wind speed (≥1 m/min)
​3. High interception efficiency, emission concentration can be lower than 5mg / Nm3
4. Good air permeability, reduced initial pressure, low energy consumption
5. Online backflush and offline cleaning, good regeneration effect
6. Long working life

Main application:
1. Hot gas filtration during the production of Alumina Oxide
2. Catalyst or precious metal recovery in hot gas processes
3. Power,Steel,Cement,Glass,Chemical,Metallurgical Industry
4. Biomass energy
5.The desulfurization denitration processes

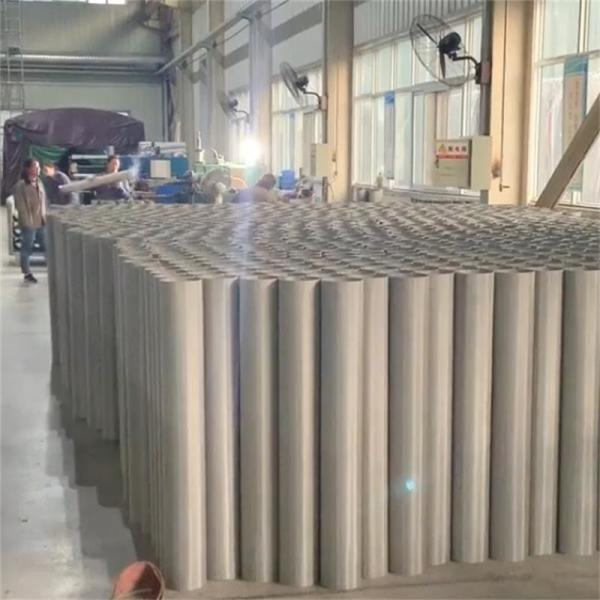

Production and Installation site:



Packaging:
