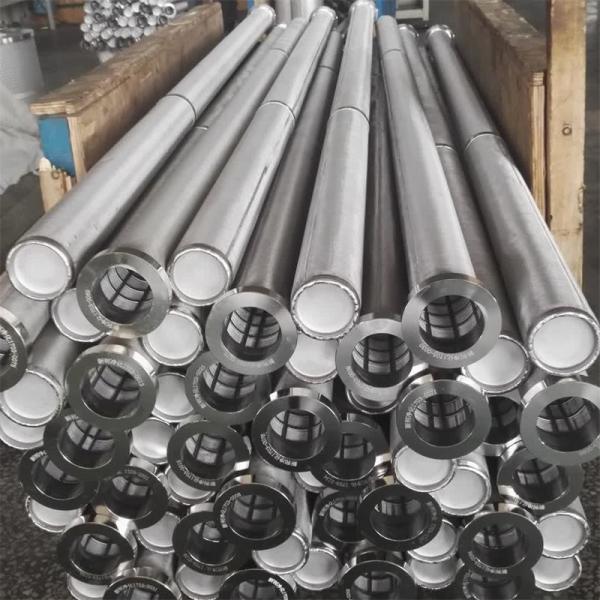

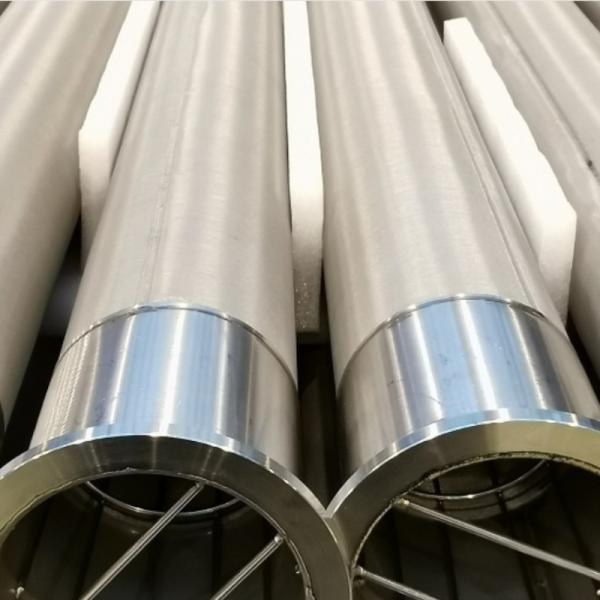

Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Sintered Metal Fiber Felt Hot Gas Filter Element For Dust Removal
Specifications
Brand Name :
Xinli
Model Number :
SMF
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 pcs
Delivery Time :
According to quantity
Packaging Details :
Air bubble foam + Wooden case + Square steel frame
Material :
SS316L, 310S, FeCrAl etc
Temperature :
400℃ or higher
Wind speed :
≥1 m/min
Emission concentration :
5mg / Nm3
Backflush :
Online
Working life :
More than 3 years
Size :
Standard or Customized
Conductive :
Avoid dust explosion caused by static electricity
Description

Sintered Metal Fiber Hot Gas Filter Element For Dust Removal

Production description:

It is made of metal fibers with a micron diameter through non-woven laying, stacking, and high-temperature sintering, and then rolled and welded. The main materials are stainless steel 316L, stainless steel 310S, iron chromium aluminum alloy, etc.

Effectively avoids the disadvantages of non-woven filter bags that are not resistant to high temperature, ceramic filter elements and sintered powder elements are brittle.

Product feature:

1. High temperature resistance(400 ℃), strong thermal shock resistance, corrosion resistance, high strength

2. High interception efficiency, emission concentration can be lower than 5mg / Nm3

3. Good air permeability, reduced initial pressure, low energy consumption

4. Handling high wind speed (≥1 m/min)

5. Online backflush and offline cleaning, good regeneration effect

6. Long working life: no clogging

7. Conductive to avoid dust explosion caused by static electricity

8. The filter material is resistant to high temperatures and can effectively prevent bag burning

9. Easy to recycle and avoid secondary pollution

10. Dust removal system volume and footprint can be significantly reduced

Technical parameters:

Product ID

OD

(mm)

Length

(mm)

Filtration area

(m2)

 Supporting tube

Temperature

(°C)
XLMFF-1500 130/160 1500 0.61 / 0.75 Perforated tube/ Support cage <400
XLMFF-3000 3000 1.22 / 1.50
XLMFF-4000 4000 1.63 / 2.01
XLMFF-5000 5000 2.04 / 2.51
XLMFF-6000 6000 2.45 / 3.01
XLMFF-7000 7000 2.85 / 3.51

Main application:

1. Hot gas filtration during the production of Magnesium Oxide, Alumina

2. Catalyst or precious metal recovery in gas processes

3. Power,Steel,Cement,Glass,Chemical,Metallurgical Industry

4. Biomass energy

Production and Installation site:

Packaging:

Product tags

iron removal filter

,

sintered porous metal filter

,

sintered porous filter
