Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Pharmaceutical SS Wire Mesh 100 Micron Sintered Stainless Steel Filter Screen
Specifications
Brand Name :
XinLi
Model Number :
5-Layers wire mesh
Certification :
ISO9001
Place of Origin :
HeNan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000+Picec+per Month
Delivery Time :
20-25 Work Days
Packaging Details :
plastic bubble film + wooden box, as the clients requirement
Thickness :
1.7mm
Technique :
Sintered
Color :
Silver
Micron :
1-300um
Sample :
According to size
PH :
1-14
working temperature :
300℃
Shape :
Round,Sheet,And customized size
Description

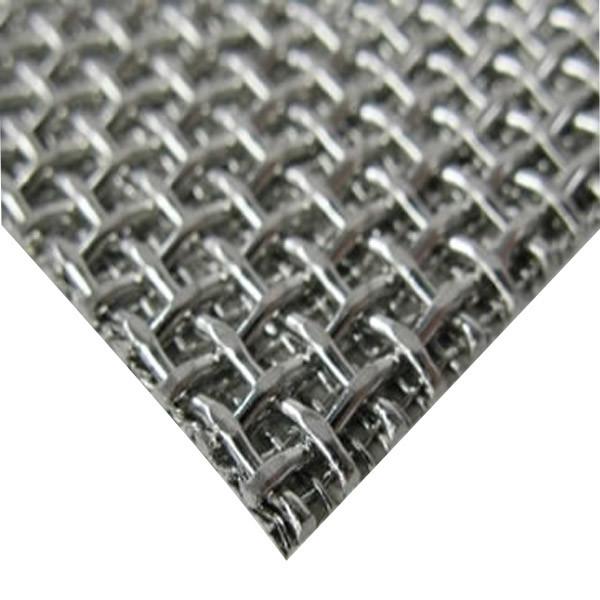

316L 5-Layers SS Sintered Wire Mesh Filter For Pharmaceutical Industry

Product Introduction:

sintered mesh consists of protective layer, filtering layer, dispersion layer, and two reinforcing layers. It is composed of 5-layer stainless steel wire mesh, which is special calendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity, its interlaced mesh forms a uniform and ideal filtration structure. And the micron rate can be customized, with selecting different filtering layer, however dutch wire mesh or square mesh, the range covers from 1 micron to 300 micron.

Material 304 or 316L Stainless steel wire mesh.And special material can be selected as well (such as Hastelloy, Monel, 904L etc.).
Micrion From 1um to 300um, optional.
Standard Size 20"x40" 40"x40" 40"x48" Max size is 48"x60" (1 "=25mm)
Thickness 1.7mm
Shape Plate shape originally, can be cutted to square,round,ring ,oval,and be processed to tube cone and ball etc.
Operating Temperature -200-600℃
Feature High strength and rigidity,Uniform and stable precision,Cleanable

Application:

It has used in many industries,such as Water treatment, Food, Pharmaceutical,Metallurgy, Chemical and Petroleum etc.

Cleaning Methods:

Backflow water, Filtering liquid, Ultrasonic, Dissolving, Baking, etc.

product structure:

Flow Feature:
