20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
20um Polymer Pleated Filter Element Gas Filter Cartridge High Performance
Specifications
Brand Name :
XinLi
Model Number :
Pleated Filter
Certification :
ISO9001
Place of Origin :
HeNan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000+Piece+Per Month
Delivery Time :
20-25 Days
Packaging Details :
Plastic Bubble Film+Wooden Box
Diameter :
40,50,60,100Inch and customized size
Color :
Silver
Material :
304
Working Pressure :
30Mpa
Receiving Capacity :
16.9-41mg/cm2
Length :
10,20,30,40Inch and customized size
Working Temperature :
300℃
Micron :
1-300um
Description

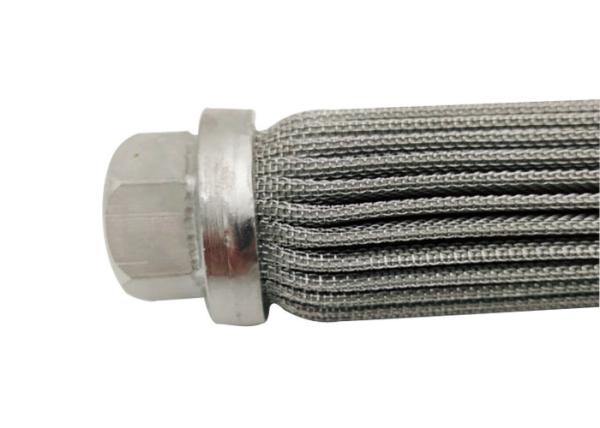

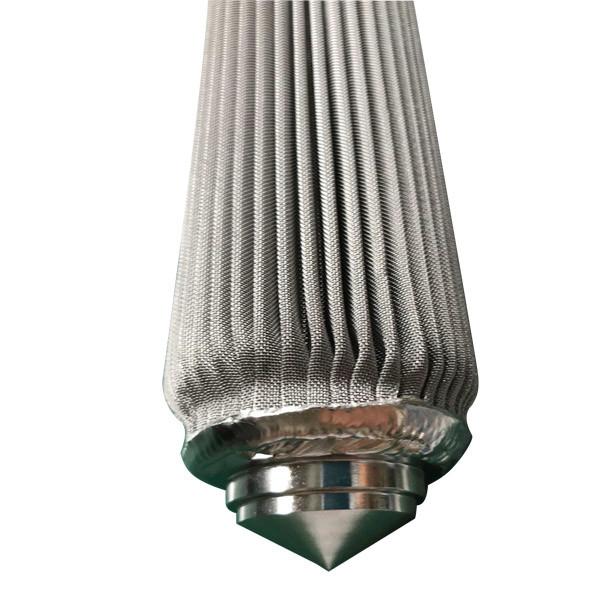

20um Polymer Pleated Stainless Steel Melt Filter Element /Filter Cartridge For Gas Filter

Product Introduction:

Main filter media of pleated filter elements are stainless steel sintered fiber felt.

Stainless steel sintered fiber web is a kind of multipore deep filter media, sintered with stainless steel fiber at the high temperature.The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning.

Product Features:

1. Large filtration are (5-10times) as normal cartridge shape filter element;
2. High filtering efficiency;
3. Simple technical process as gas is filtered directly.
4. Good air permeability,stable filter rating,no leakage.
5. Reusable,easyinstallation,high working efficiency,long working life.

Filter Elements Adaptors:

1. 226 Fitting,

2. 222Fitting,

3. DOE ,

4. SOE,

5. Thread 1",

6. 1/2"NPT and so on

Application:

Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.

Technical Prameters:

Product

Type

 Material

Micron

(um)

Outer

Diameter

(mm)

 Length Connector O-Ring/Gasket

Filter

Media
Pleated SS304

1,2,5,10,15,20,

25,30,40,50,Etc

 30 5’’ 1’’ BSP Threaded Silicore Stainless Steel Wire Mesh
SS316L 60 10’’ NIL-Cut Ends Buna-N Mesh + Sintered Fiber Felt
Other 65 20’’ DOE Viton
80 30’’ 222/Seal Teflon
85 40’’ 226/Seal

Ethylene

Propylene

The above options are freely combined, For Example:

Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh

Notice:It also can be customized according to your requirerment
