5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
5um Stainless Steel Wire Mesh Pleated Filter Element High Pressure
Specifications
Brand Name :
XinLi
Model Number :
Pleated Filter
Certification :
ISO9001
Place of Origin :
HeNan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000+Piece+Per Month
Delivery Time :
20-25 Work days
Packaging Details :
Plastic Bubble Film + Wooden Box , As The Clients Requirement
Color :
Silver
Material :
304,316,316L
Length :
10,20,30,40Inch and customized size
Working Temperature :
300℃
Diameter :
40,50,60,100Inch and customized size
Working Pressure :
30Mpa
Micron :
5-60um
Receiving Capacity :
16.9-41mg/cm2
Description

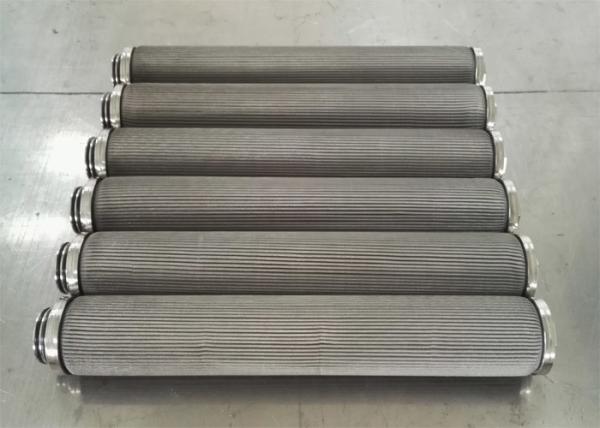

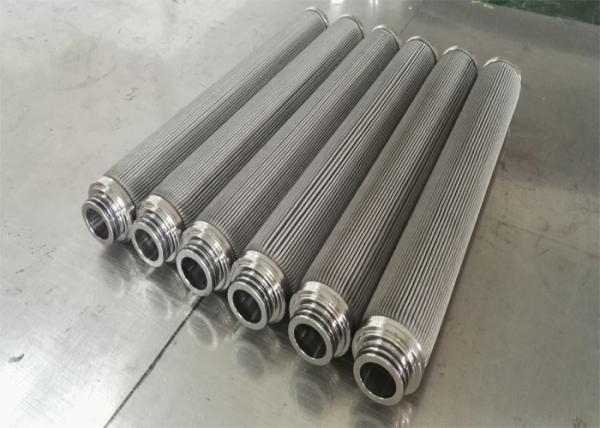

High Pressure 5um Stainless Steel Wire Mesh Pleated Melt Filter Element For Polymer Filter

Product Introduction:

The main filter made by stainless steel fiber felt. The stainless steel fiber felt is a deep filter and the material is stainless steel fiber after high temperature sintering, the folding wave core has high porosity, food air permeability, assimilative capacity, strong regeneration ability etc.

Application:

Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.

Product Features:

1. Large filtration are (5-10times) as normal cartridge shape filter element;
2. High filtering efficiency;
3. Simple technical process as gas is filtered directly.
4. Good air permeability,stable filter rating,no leakage.
5. Reusable,easyinstallation,high working efficiency,long working life.

Filter Elements Adaptors:

1. Standard Adaptors (222,220,226)
2. Fast Interface Connector
3. Threaded Connector
4. Flange
5. Tire Rod
6. Other Special Adaptors

Technical Prameters:

Product

Type

 Material

Micron

(um)

Outer

Diameter

(mm)

 Length Connector O-Ring/Gasket

Filter

Media
Pleated SS304

1,2,5,10,15,20,

25,30,40,50,Etc

 30 5’’ 1’’ BSP Threaded Silicore Stainless Steel Wire Mesh
SS316L 60 10’’ NIL-Cut Ends Buna-N Mesh + Sintered Fiber Felt
Other 65 20’’ DOE Viton
80 30’’ 222/Seal Teflon
85 40’’ 226/Seal

Ethylene

Propylene

The above options are freely combined, For Example:

Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh

Notice:It also can be customized according to your requirerment
