Specifications
Brand Name :
XinLi
Model Number :
Perforated wire mesh
Certification :
ISO9001
Place of Origin :
HeNan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000+Picec+per Month
Delivery Time :
20-25 Work Days
Packaging Details :
plastic bubble film + wooden box, as the clients requirement
Material :
Stainless steel woven wire mesh
Feature :
High pressure resistance
Thickness :
customized size
Filtration Rating :
1-300micron
Technicue :
Sinter,Woven, Perforated
Structure :
Standard or Customized
working temperature :
300℃
Shape :
Round,Sheet,And customized size
Description

Perforated 304 Stainless Steel Sintered Wire Mesh Filter For Food Industry

Product Introduction:

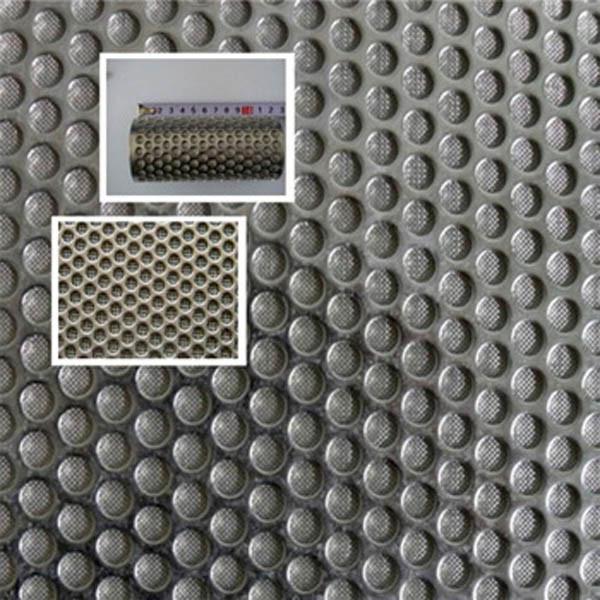

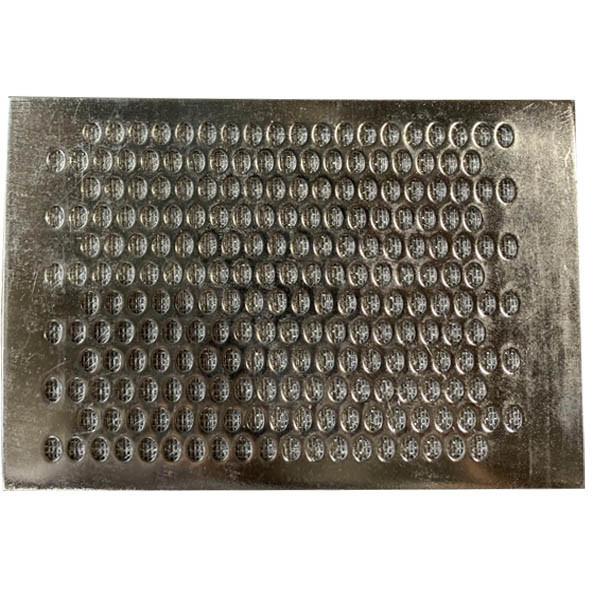

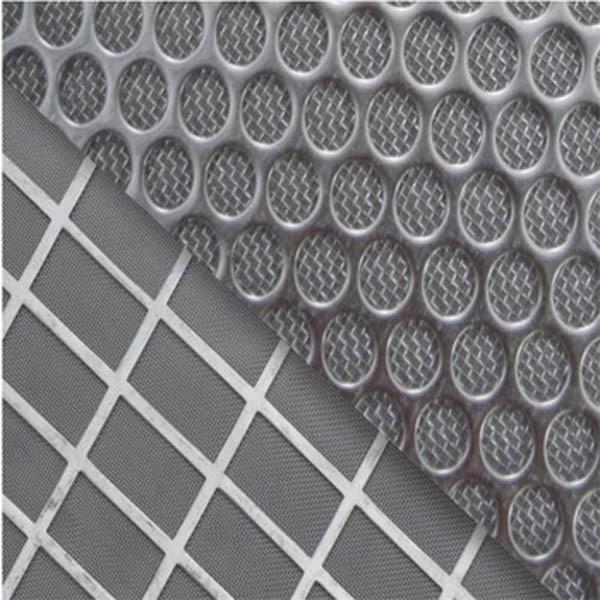

This is a new filter material,which is sintered together with one layer perforated plate(304 or 316L) and several layers of plain or twilled woven wire mesh to form a very strong yet tractable plate.

It is suitable for a variety of applications which require fine filtration and high pressure.

The layer and mesh number is decided by the working condition and application,the thickness of perforated sheet and the the type of perforations can also be customized.

perforated sintered with wire mesh laminate feature

It enjoys the advantages of higher mechanical strength, better backwash efficiency and lower pressure drop loss,due to the special structure of pressure resistant framework and filtering mesh by sintering together.

Material 304 or 316L Stainless steel wire mesh.But special material can be selected as well (such as Hastelloy, Monel, 904L etc.).
Micrion From 1um to 300um, optional.
Standard Size 20"x40" 40"x40" 40"x48" Max size is 48"x60" (1 "=25mm)
Thickness According to the number of mesh layers and the thickness of the perforated sheet
Shape Plate shape originally, can be cutted to square,round,ring ,oval,and be processed to tube cone and ball etc.
Operating Temperature -200-650℃
Feature High strength and rigidity,Uniform and stable precision,Cleanable

Application:

Water treatment, beverage, food, metallurgy, chemical and pharmaceutical industries.
