Specifications
Brand Name :
Xinli
Model Number :
XLDPF
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
70 pcs/2 month
Delivery Time :
60 working days
Packaging Details :
Air bubble foam + wooden case
Color :
Silver
Pore size :
2micron, 5micron, 10micron 20micron or other
Oem :
Accepted
Material :
SS316L
Filtration media :
Multi-layer sintered wire mesh
After-sales service provided :
Online support
Type :
Disc type
Thickness :
4.8mm
Description

Chemical Industrial Pressure Filter disc Used For Catalyst Recovery

Product description:

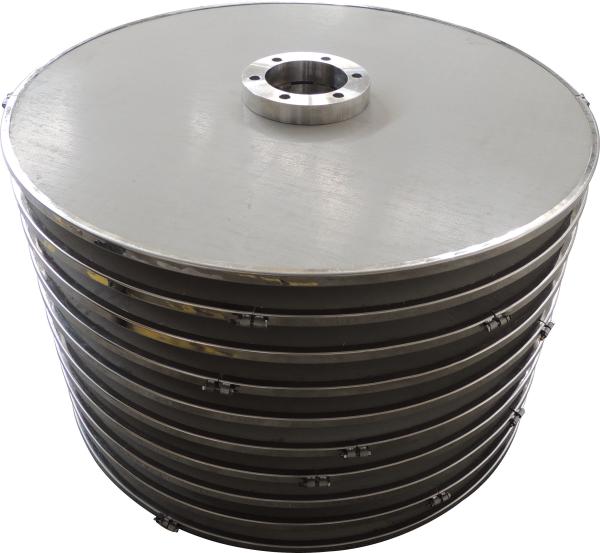

Pressure plate filters consist of a stack of filter plates attached to a hollow shaft. As the core component of the filter, the filter plate is sintered and then processed by a multi-layer wire mesh. Xinli Company learns foreign technology. After research and development and many years of experience, the filter plate can perfectly replace expensive foreign products and reduce the use cost.


XLDPF Type:
This kind of filter plate can remove the impurities by a scraper, which requires high flatness of the mesh surface.



Product structure:
The single filter plate consists of 5 parts. And the filter screen is 8 layers of metal sintered mesh with a total thickness of 4.8mm and a micron rate of 2-5um.



Product feature:

1. Single-sided or double-sided filtering is optional to meet different needs

2. The filter screen has high sintering strength and will not open or deform during use

3. The mesh surface is highly flat to ensure easy removal of impurities

4. Uniform and stable micron rate and good air permeability

5. The filter screen can be replaced and cleaned



Technical parameters:

Product ID

Quantity of plates

(pcs)

Filtration area

(m2)

Flow

(m3/h)

Pressure

(MPa)

Temperature

(°C)
XLDPF-10 10 14 0.8 2.0 0-200
XLDPF-13 13 18.2 1.1
XLDPF-15 15 21 1.2
XLDPF-18 18 25.2 1.5
XLDPF-22 22 30.8 1.8
XLDPF-23 23 32.2 1.9
XLDPF-25 25 35 2.1
XLDPF-29 29 40.6 2.4
XLDPF-32 32 44.8 2.6
XLDPF-36 36 50.4 3


Application:

1. Catalyst recovery / recirculation

2. Thickening of suspension

3. Toluylendiisocyanat process

4. Butynediol / Butanediol process

5. Anilin process

Production field:

Testing:

Packaging:

Similar product:
