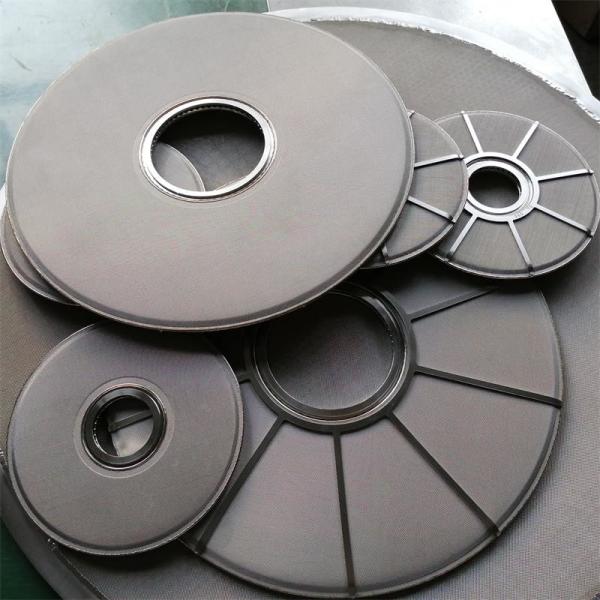

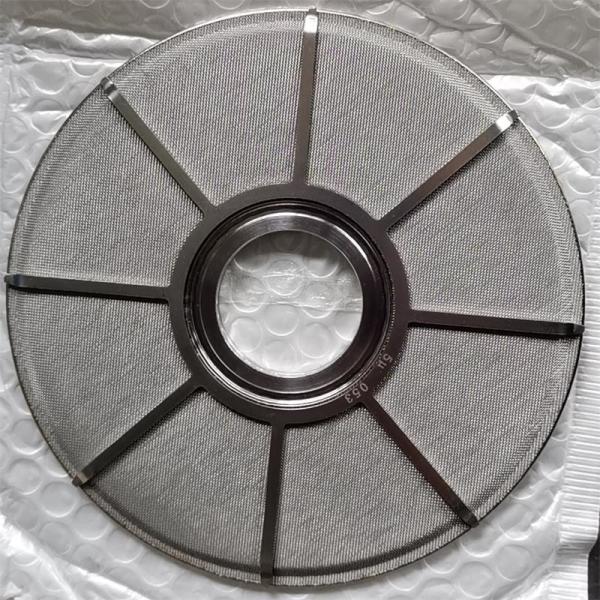

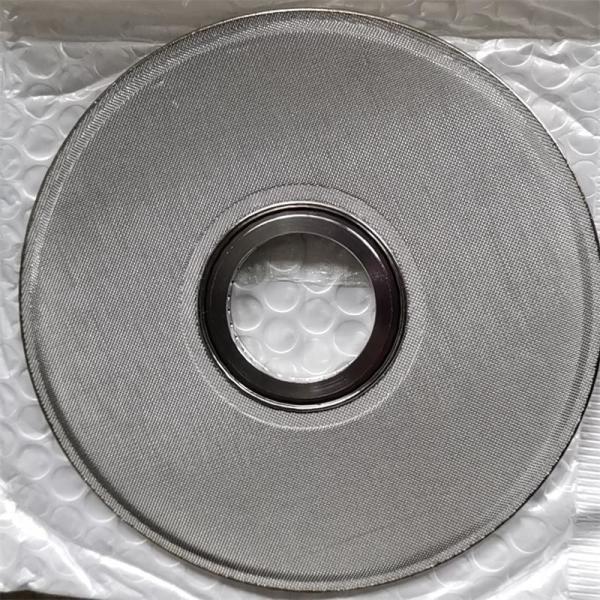

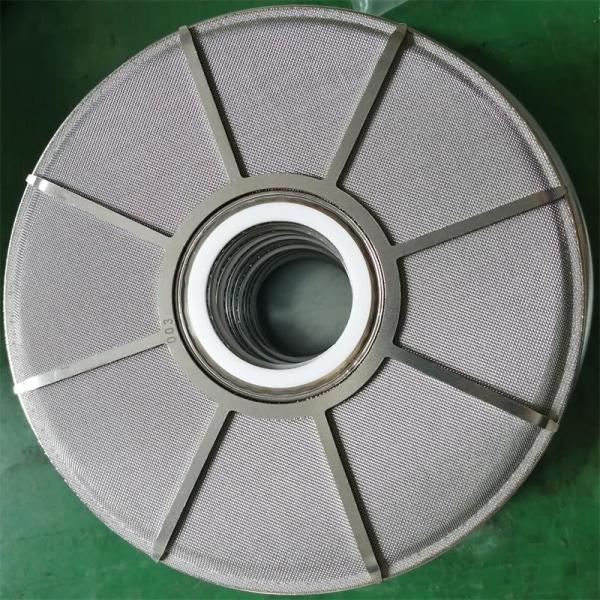

Biaxially Oriented Film Leaf Disc Filter
Biaxially Oriented Film Leaf Disc Filter
Biaxially Oriented Film Leaf Disc Filter
Biaxially Oriented Film Leaf Disc Filter
Biaxially Oriented Film Leaf Disc Filter
Biaxially Oriented Film Leaf Disc Filter
Biaxially Oriented Film Leaf Disc Filter
Biaxially Oriented Film Leaf Disc Filter
Specifications
Brand Name :
Xinli
Model Number :
XLLDF
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000pcs/month
Delivery Time :
According to quantity
Packaging Details :
Air bubble foam + wooden case
After-sales service provided :
Online support
Medium material :
Stainless steel sintered fiber/ Sintered mesh/Stainless steel powder
Product name :
Biaxially Oriented Film Leaf Disc Melt Filter Element Micron filtration Grade
Size :
Standard or Customized
Condition :
New
Efficiency :
99%
Standard hub :
Hard, Soft, and Semi-hard
Miron rating :
5um ~ 80um or 0.5um ~100um
Description

Biaxially Oriented Film Leaf Disc Melt Filter Element Micron filtration Grade

Product description:

The polymer leaf disc filters is made of sintered metal wire mesh laminates or sintered metal non-woven fiber felt medium.

Technical parameters:

Product Name: Leaf Disc Filter
Material: 304 or 316L stainless steel
Micron Rating: 5–80µm
Outside Diameter: 152.4mm-304.8mm
Inner Diameter: 38.2-85mm
Thickness: 5.5–10.5mm
Porosity:about 80%
Leaf disc filter is processed by sintered non-woven fiber felt media, which is good for high-molecular polymer filtration.

Working data:

Product name Polymer Leaf disc filter
Working pressure ≦31.7MPa
Working temperature ≦300℃
Medium viscosity ≦260Pa.s
Defference pressure ≦10Mpa

Product feature:

Good strength, high filtration rating, high porocity, high temperature resistance, good pollutant carry capacity etc.

Main application:

Mainly used for biaxially oriented film(BOPET,BOPP,BOPA,BOPI) and battery separate film production.

Packaging:
