Various Specifications Stainless Steel Water Basket Filter For Industrial Fluid Prefilter

Basket filters & strainers permits the straining & filtering of a wide variety of fluids and retains solid components of almost any size. All baskets are easily removable &easy-to-clean. Basket strainer elements can be offered in single cylinder, double cylinder, multi cylinder & pleated design depending upon requirement of the application. They are constructed with filter housing, filter element supported with perforated cage, positive sealing arrangement to avoid any bypass & choice of end connections.

Feature:

1. Simple and reliable structure;

2. Small pressure drop loss;

3. High filtration precision;

4. Long service life;

5. Low running cost;

6. Widely application range;

7. Easily maintain;

Application:

1. Weak corrosion material filtration: Water,oil,ammonia,hydrocarbon

2. Corrosion material filtration: Caustic soda,soda ash,acid,Carbonic acid,Aldonic acid

3. Low temperature material in refrigeration: Liquid methane,ammonia,oxygen and various refrigerants

4. Food & Beverage and Pharmaceutical: Bear,juice,dairy products,syrup.

Product parameters:

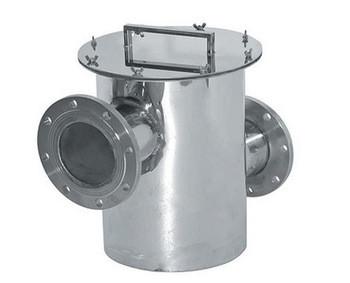

Image:

Housing:

Operation:

Unfiltered liquid enters the basket housing and passes down through them. Solids are retained inside / outside of basket depending upon design and are removed when the unit is serviced.They are available with insitu backwashing arrangement, wherein removal of baskets for cleaning is not required often.

Basket filters & strainers are normally supplied with spring arrangement at the top of filter element. This will ensure any type of bypassing & confirm the position of basket, even in case of reverse flow. Fluid bypass around the basket is prevented by an optional O’-Ring seal between the basket rim and the housing inside diameter.
