304 Stainless Steel PreFilter Water Filter Housing High Strength
304 Stainless Steel PreFilter Water Filter Housing High Strength
304 Stainless Steel PreFilter Water Filter Housing High Strength
304 Stainless Steel PreFilter Water Filter Housing High Strength
304 Stainless Steel PreFilter Water Filter Housing High Strength
304 Stainless Steel PreFilter Water Filter Housing High Strength
304 Stainless Steel PreFilter Water Filter Housing High Strength
304 Stainless Steel PreFilter Water Filter Housing High Strength
Specifications
Brand Name :
Xinli
Model Number :
PWH01
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Pieces/Month
Delivery Time :
15-18 work days
Packaging Details :
Plastic bubble film + wooden box + certificates + as the clients requirement
Size :
5/10/20inch
Working pressure :
1-5bar
Color :
Silver
Usage :
Liquid Filter
Feature :
High Strength
Material :
304/316
OEM Service :
Accept
Flow Rate :
0.5T/H-2T/H
Description

Home Use 304 Stainless Steel PreFilter Water filter Housing

Feature:

Feature 1. High pressure, long working life.
2. High strength ,high rigidity, easy installation and maintenance.
3. High temperature tolerance, corrosion resistance, wide application.
4. Wide operating range, simple for process adjusting.

Length 5inch,10 inch or 20 inch
Material 304 stainless steel
Head aluminium,304,316
Inlet/Outlet 3/4''
Max. operating pressure 1-5Mpa
OEM Service Accept(Customized Size)
Flow 0.5T/H,0.8T/H,2T/H

The pre-filter is the first coarse filtering device for the whole house water, which can filter large particles such as sediment, rust, etc. in the tap water. The pre-filter is generally installed at the front of the pipeline, so it is named after the word "front"; and "filter" refers to the basic principle of this type of equipment.

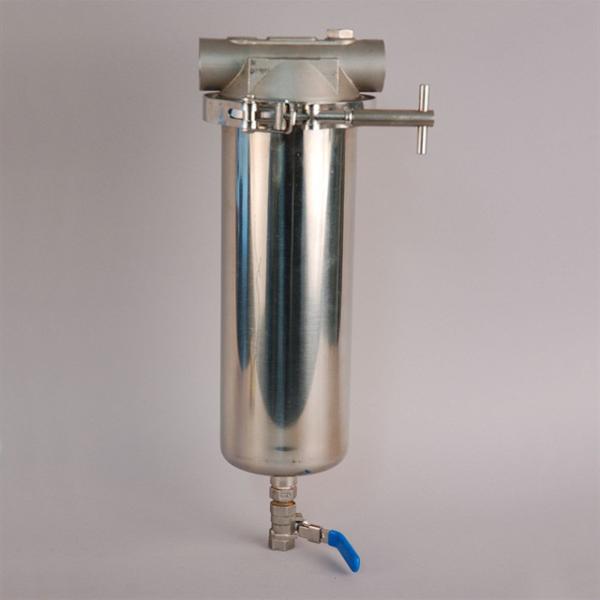

Usually "T" type structure. The left and right ends of the "one horizontal" position above are the water inlet and outlet, respectively. The "one vertical" position below is the fuselage and the internal cylindrical filter, and the bottom is the sewage outlet, which is controlled by a valve to open and close.

The accuracy of the filter ranges from 5 to 300 microns. Mainly remove the sediment impurities and bacteria, microbial debris, rust, sand and other particles impurities larger than 5 microns generated by the pipeline to avoid injury to the human body and skin; The faucet and shower play an active protective role, and the pre-filter can also be added with "phosphoric acid hydrochloride" scale inhibitor to play a role of scale inhibition for solar energy and water heater.

It is usually installed after the water meter of the inlet pipe to ensure that a large amount of precipitated impurities generated in the pipe network will not cause harm to the human body, and plays a positive role in protecting the darkly laid pipes, faucets, electrical appliances, etc. The pre-filter is the nemesis of secondary pollution and a reliable impurity filtering device.
