Specifications
Brand Name :
Xinli
Model Number :
XLBF
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 pcs/month
Delivery Time :
30 working days
Packaging Details :
Air bubble foam +wooden case
Operating temperature :
-200-400℃
Material :
SS or CS
Filter element :
1Basket Filter
Filter rating :
50-300μm
Pressure :
0.6-1.6 Mpa
Flow rate :
7-505 m3/h
Description

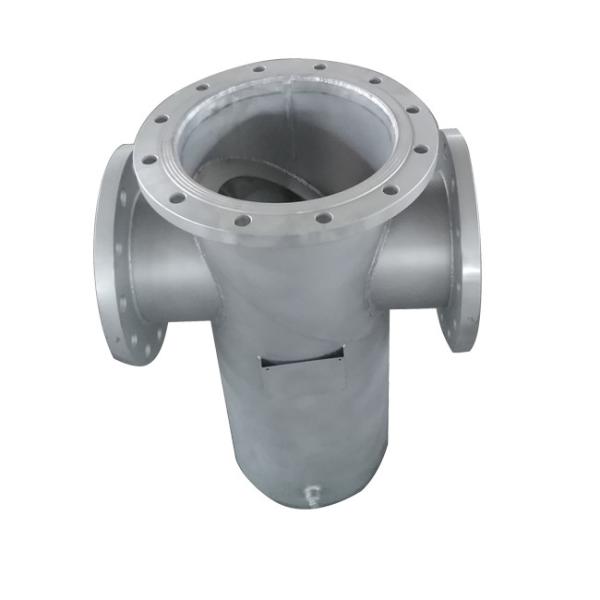

CS/Stainless Steel Water Basket Filter For Industrial Water Prefilter

It used metal basket filter as filter element,consist of connecting pipe, cylinder,basket,flange,flange cover and fastener.The connecting pipe remove large solid impurities in the fluid,make mechanical equipment(including compressor and pump),dashboard work normally,attach a stable process and ensure safe production.

Feature:

1. Simple and reliable structure;

2. Small pressure drop loss;

3. High filtration precision;

4. Long service life;

5. Low running cost;

6. Widely application range;

7. Easily maintain;

Application:

1. Weak corrosion material filtration: Water,oil,ammonia,hydrocarbon

2. Corrosion material filtration: Caustic soda,soda ash,acid,Carbonic acid,Aldonic acid

3. Low temperature material in refrigeration: Liquid methane,ammonia,oxygen and various refrigerants

4. Food & Beverage and Pharmaceutical: Bear,juice,dairy products,syrup.

Product parameters:

Basket filter technical parameters
DN 25 40 50 65 80 100 125 150 200 250 300
1 11/2 2 21/2 3 4 5 6 8 10 12
D 76 108 108 133 159 219 273 325 377 426 478
L 180 260 260 373 399 459 513 565 617 666 718
H 410 560 560 637 719 881 1079 1276 1397 1544 1739
H1 260 300 300 364 417 508 617 724 793 893 997
H2 160 170 170 174 214 272 345 404 446 495 563
Effective filtration area 0.0162 0.315 0.0315 0.0416 0.059 0.1077 0.1759 0.291 0.4076 0.5017 0.68

Image:

Housing:
