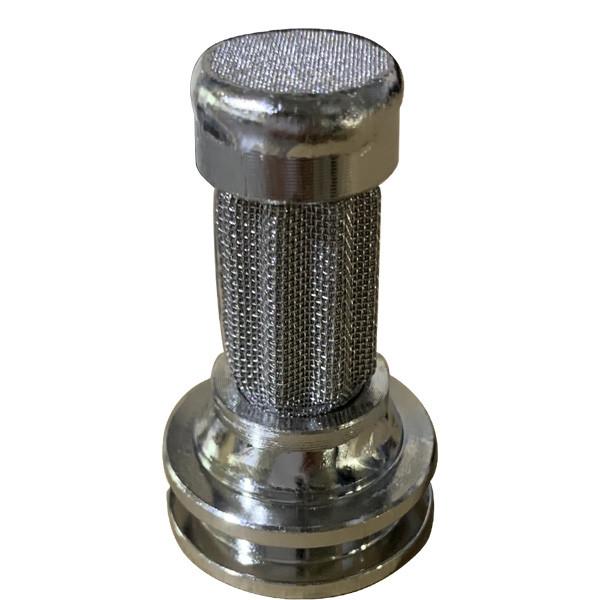

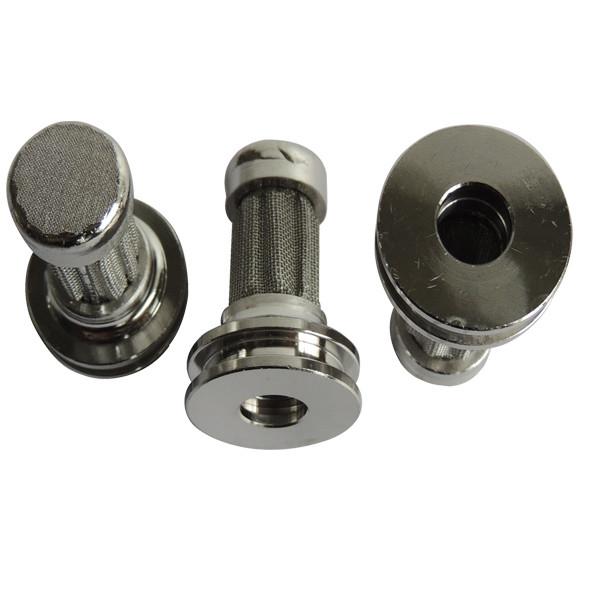

316L 20 Micron Pleated Wire Mesh Filter Element
316L 20 Micron Pleated Wire Mesh Filter Element
316L 20 Micron Pleated Wire Mesh Filter Element
316L 20 Micron Pleated Wire Mesh Filter Element
316L 20 Micron Pleated Wire Mesh Filter Element
316L 20 Micron Pleated Wire Mesh Filter Element
Specifications
Brand Name :
XinLi
Model Number :
Pleated Filter
Certification :
ISO9001
Place of Origin :
HeNan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000+Pcs+Per Month
Delivery Time :
20-25 Work days
Packaging Details :
Plastic Bubble Film + Wooden Box + Certificates, As The Clients Requirement
Material :
304,316,316L,2507
Receiving Capacity :
16.9-41mg/cm2
Color :
Silver
Micron :
1-300um
Length :
10,20,30,40Inch and customized size
Diameter :
40,50,60,100Inch and customized size
Working Temperature :
300℃
Working Pressure :
30Mpa
Description

316L 20 Micron Pleated Wire Mesh Filter Element For Good Air Permeability

Product Introduction:

1. Filter material: stainless steel sintered fiber felt stainless steel wire mesh

2. Core structure:

Pleated stainless steel sintered fiber felt(control filtering rate) and double protective mesh

3. Filter rate: 5-60um (stainless steel fiber felt)

Product Features:

1. Large filtration are (5-10times) as normal cartridge shape filter element;
2. High filtering efficiency;
3. Simple technical process as gas is filtered directly.
4. Good air permeability,stable filter rating,no leakage.
5. Reusable,easyinstallation,high working efficiency,long working life.

Filter Elements Adaptors:

1. Standard Adaptors (222,220,226)
2. Fast Interface Connector
3. Threaded Connector
4. Flange
5. Tire Rod
6. Other Special Adaptors

Application:

Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.

Technical Prameters:

Product

Type

 Material

Micron

(um)

Outer

Diameter

(mm)

 Length Connector O-Ring/Gasket

Filter

Media
Pleated SS304

1,2,5,10,15,20,

25,30,40,50,Etc

 30 5’’ 1’’ BSP Threaded Silicore Stainless Steel Wire Mesh
SS316L 60 10’’ NIL-Cut Ends Buna-N Mesh + Sintered Fiber Felt
Other 65 20’’ DOE Viton
80 30’’ 222/Seal Teflon
85 40’’ 226/Seal

Ethylene

Propylene

The above options are freely combined, For Example:

Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh

Notice:It also can be customized according to your requirerment
