Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Fluid Self Cleaning 230micron Stainless Steel Filter Basket
Specifications
Brand Name :
XinLi
Model Number :
Pleated Filter
Certification :
ISO9001
Place of Origin :
HeNan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000+Pcs+Per Month
Delivery Time :
20-25 Work days
Packaging Details :
Plastic Bubble Film + Wooden Box + Certificates, As The Clients Requirement
Material :
304,316,316L
Working Temperature :
300℃
Working Pressure :
30Mpa
Receiving Capacity :
16.9-41mg/cm2
Diameter :
40,50,60,100Inch and customized size
Length :
10,20,30,40Inch and customized size
Micron :
1-300um
Color :
Silver
Description

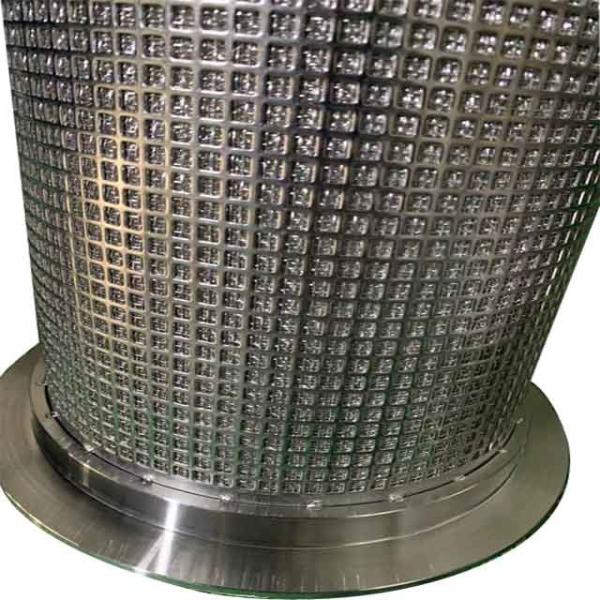

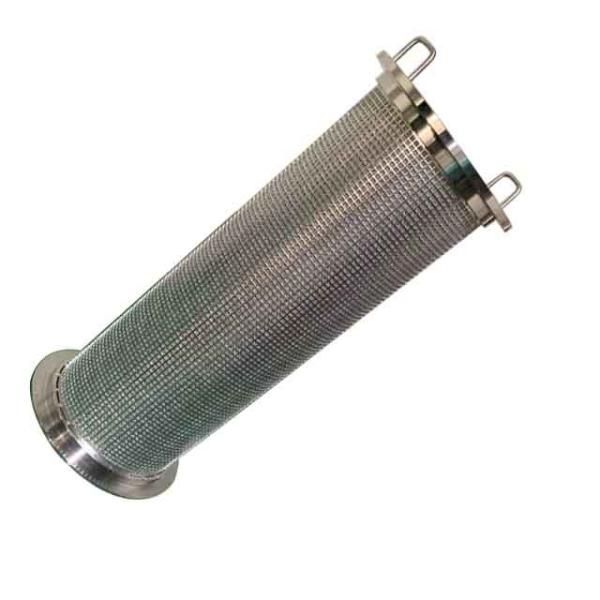

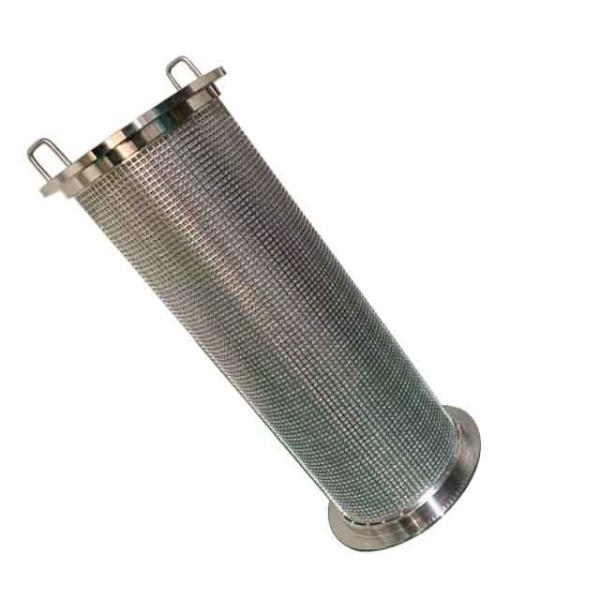

316/304 230 Micron Filter Element/Basket For Fluid Self-cleaning Filter

Product Introduction:

1. Filter material: stainless steel sintered fiber felt or stainless steel wire mesh

2. Core structure:

Pleated stainless steel sintered fiber felt(control filtering rate) and double protective mesh

3. Filter rate: 5-60um (stainless steel fiber felt)I.

Technical Prameters:

Product

Type

 Material

Micron

(um)

Outer

Diameter

(mm)

 Length Connector O-Ring/Gasket

Filter

Media
Pleated SS304

1,2,5,10,15,20,

25,30,40,50,Etc

 30 5’’ 1’’ BSP Threaded Silicore Stainless Steel Wire Mesh
SS316L 60 10’’ NIL-Cut Ends Buna-N Mesh + Sintered Fiber Felt
Other 65 20’’ DOE Viton
80 30’’ 222/Seal Teflon
85 40’’ 226/Seal

Ethylene

Propylene

The above options are freely combined, For Example:

Pleated 316l;Micron:5;Out Dia:60;Length:20’’;Connector:222;Gasket:Silicore;Fiter Media:Stainless steel wire mesh

Notice:It also can be customized according to your requirerment

Filter Elements Adaptors:

1. Standard Adaptors (222,220,226)
2. Fast Interface Connector
3. Threaded Connector
4. Flange
5. Tire Rod
6. Other Special Adaptors

Product Features:

1. Large filtration are (5-10times) as normal cartridge shape filter element;
2. High filtering efficiency;
3. Simple technical process as gas is filtered directly.
4. Good air permeability,stable filter rating,no leakage.
5. Reusable,easyinstallation,high working efficiency,long working life.

Application:

Polymer ,water treatment, oil, pharmaceutical ,food and beverage, chemical, synthetic filtration ,and medium filtration such as high temperature.
