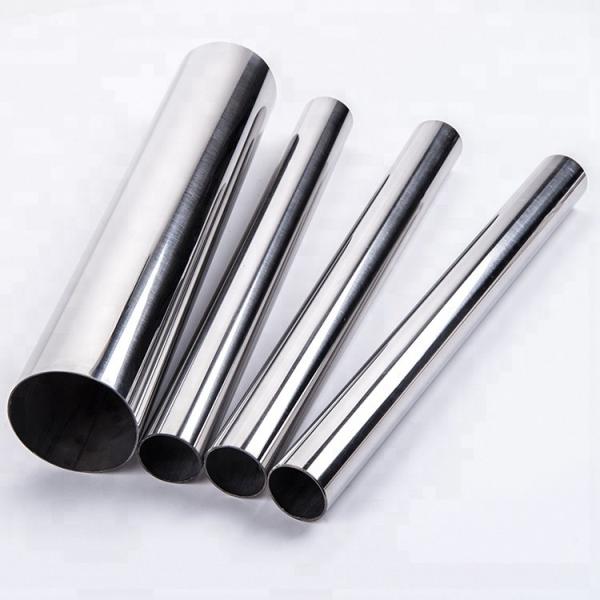

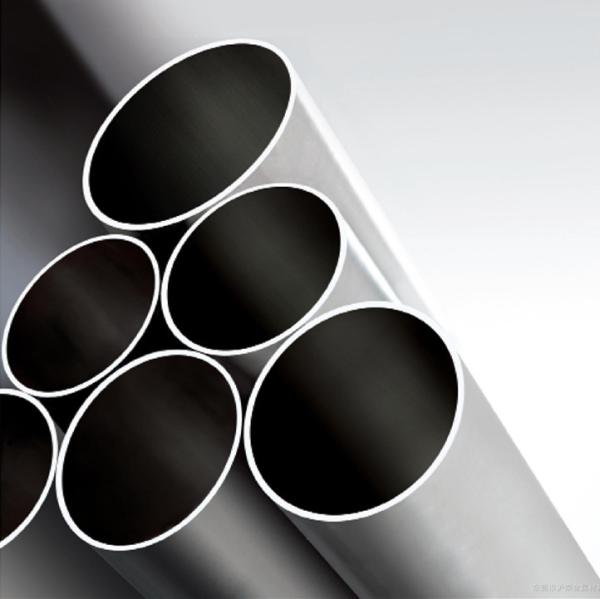

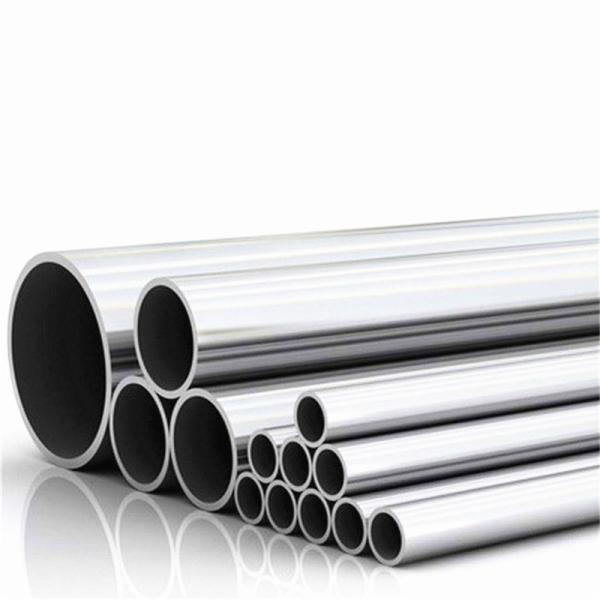

Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
Specifications
Brand Name :
SAILING
Model Number :
TP304 / 316L
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1TON
Price :
USD2000-3000
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Plastic Bag or Plywooden case
Application :
Construction,Decoration,Industry,machine building,Exhaust Pipe
Steel grade :
300 Series,304L,316L etc
Type :
Welded
Standard :
ASTM,JIS,AISI,DIN,EN
Shape :
Round
Color :
Silver
Description

What is specifications of our pipe?

  • Name
  • CUSTOM SIZE 4INCH SS316LSTAINLESS STEEL WELDED PIPE SANITARY PIPING
  • Items
  • Round tubes ,welded
  • Standard
  • ASTM ,GB,DIN AISI
  • Material Grade
  • 316L:Ni 10%, Cr 16%
  • 304L: Ni 8%, Cr 18%
  • 304: Ni 8%, Cr 18%
  • Outer Diameter
  • Round pipe9.5mm--813mm
  • square
  • 12.7x12.7--200X200mm
  • rectangular
  • 20X40--150X200mm
  • Thickness
  • 0.8mm - 34mm
  • Length
  • 5.8m,6m, or as customers' request
  • Tolerance
  • a) Outer Diameter: +/- 0.2mm
  • b) Thickness: +/- 0.02mm
  • c) Length: +/- 5mm
  • Surface
  • annealing,pickling
  • sandblasting
  • Application
  • industry,exhausting,water
  • Test
  • Squash test, extended test, water pressure test,heat treatment, NDT
  • Chemical Composition of Material
  • Material
  • 304L
  • 316L
  • 304
  • C
  • ≤0.035
  • ≤0.035
  • ≤0.08
  • Si
  • ≤1.00
  • ≤1.00
  • ≤1.00
  • Mn
  • ≤2.00
  • ≤2.00
  • ≤2.00
  • P
  • ≤0.045
  • ≤0.045
  • ≤0.045
  • S
  • ≤0.03
  • ≤0.03
  • ≤0.03
  • Cr
  • 18-20
  • 16-18
  • 18-20
  • N
  • 8-12.0
  • 10-14
  • 8-10.5
  • Mechanical Property
  • Material Item
  • 304L
  • 316L
  • 304
  • Tensile Strength
  • ≥515
  • ≥515
  • ≥515
  • Yield Strength
  • ≥205
  • ≥205
  • ≥205
  • Extension
  • ≥35%
  • ≥35%
  • ≥35%
  • Hardness (HV)
  • N/M
  • N/M
  • N/M

APPLICATIONS :

  • 1. Pipe and Tubes for petrochemical industry
  • 2. Pharmaceutical industry
  • 3. Food industry
  • 4. Aviation and aerospace industry
  • 5. Architectural decoration industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipes with special specifications according to customers’ requirements

Packing:

Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing

Workshop:

Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing

Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing

Processing technic:

Customizable 316L Stainless Steel Welded Pipe , 4 Inch Stainless Steel Tubing
