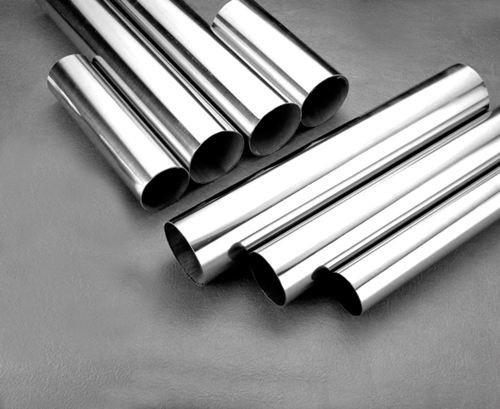

DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support
DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support
DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support
DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support
Specifications
Brand Name :
SAILING
Model Number :
TP304 / 316L
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1TON
Price :
USD2000-3000
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Plastic Bag or Plywooden case
Application :
Construction,Decoration,Industry,machine building,Exhaust Pipe
Steel grade :
300 Series,304L,316L etc
Type :
Welded
Standard :
ASTM,JIS,AISI,DIN,EN
Shape :
Round
Color :
Silver
Description

DIN JIS ASTM Standard Stainless Steel 304 316L Welded Pipes / Tubes

What is specifications of our pipe?

Name

DIN JIS ASTM Standard Stainless Steel 304 316L Welded Pipes / Tubes

Items

Round tubes ,welded

Standard

ASTM ,GB,DIN AISI

Material Grade

316L:Ni 10%, Cr 16%

304L: Ni 8%, Cr 18%

304: Ni 8%, Cr 18%

Outer Diameter

Round pipe9.5mm--813mm

square

12.7x12.7--200X200mm

rectangular

20X40--150X200mm

Thickness

0.8mm - 34mm

Length

5.8m,6m, or as customers' request

Tolerance

a) Outer Diameter: +/- 0.2mm

b) Thickness: +/- 0.02mm

c) Length: +/- 5mm

Surface

annealing,pickling

sandblasting

Application

industry,exhausting,water

Test

Squash test, extended test, water pressure test,heat treatment, NDT

Chemical Composition of Material

Material

304L

316L

304

C

≤0.035

≤0.035

≤0.08

Si

≤1.00

≤1.00

≤1.00

Mn

≤2.00

≤2.00

≤2.00

P

≤0.045

≤0.045

≤0.045

S

≤0.03

≤0.03

≤0.03

Cr

18-20

16-18

18-20

N

8-12.0

10-14

8-10.5

Mechanical Property

Material Item

304L

316L

304

Tensile Strength

≥515

≥515

≥515

Yield Strength

≥205

≥205

≥205

Extension

≥35%

≥35%

≥35%

Hardness (HV)

N/M

N/M

N/M

APPLICATIONS :

1. Pipe and Tubes for petrochemical industry

2. Pharmaceutical industry

3. Food industry

4. Aviation and aerospace industry

5. Architectural decoration industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipes with special specifications according to customers’ requirements

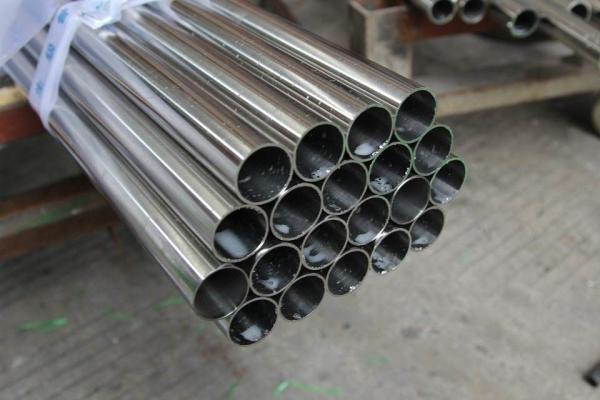

Packing:

DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support

Workshop:

DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support

DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support

Processing technic:

DIN JIS ASTM Standard Welding Stainless Steel Pipe Custom Service Support
