ASTM A544 TP304 Stainless Steel Welded Pipe Polished Outside 180 grits50.8*1.5mm*6000mm
ASTM A544 TP304 Stainless Steel Welded Pipe Polished Outside 180 grits50.8*1.5mm*6000mm
ASTM A544 TP304 Stainless Steel Welded Pipe Polished Outside 180 grits50.8*1.5mm*6000mm
ASTM A544 TP304 Stainless Steel Welded Pipe Polished Outside 180 grits50.8*1.5mm*6000mm
Specifications
Brand Name :
China
Model Number :
TP304 SUS304
Certification :
SGS ISO
Place of Origin :
China
MOQ :
1 tons
Price :
2850 USD/Ton
Supply Ability :
5 tons
Delivery Time :
7 days
Packaging Details :
Export Packing
OD :
12.7-325mm
Thickness :
0.5-3mm
Length :
6000mm
Surface :
180# 320#
Description

ASTM A544 TP304 Stainless Steel Tube Polished Outside 180 grits50.8*1.5mm*6000mm

Stainless Steel Pipe:
1.Material:201,202,304,316L,430,etc
2.OD:6mm-159mm
Thickness:0.25-3.5mm
3.Surface:Mirror,Satin/HL

Name Stainless Steel pipe/Tube
Standard ASTM A554, A249, A269 and A270, A312
Material Grade

201 ( Ni 1.2%),

202 (Ni 3.5%~4.5%),

301(Ni 5%)

304 (Ni 8%, Cr 18%),

316 (Ni 10%, Cr 18%),

316L (Ni10%~14%),

430
Outer Diameter 6mm--159mm
Thickness 0.3mm - 3.0mm
Length 6m or as customers' request

Tolerance

 a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
Surface

180G, 320G, 400G Satin / Hairline

400G, 500G, 600G or 800G Mirror finish
Application Decoration construction, upholstery, industry instrument
Test Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT

Chemical Composition of Material

Material

Composition

 201 202 304 316 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.08 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 16-18 17-19 18-20 16-18 16-18
N 3.5-5.5 4-6 8-10.5 10-14
Mo 2.0-3.0

Mechanical Property

 Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <253 <253 <200 <200
Payment Payment by T/T, 30% as advance payment and 70% balance pay before shipping.

Delivery time

A.7 days if this goods is stock goods.

B.20 days if this goods will be produced after order
Validity Valid time is 3 days for price usually.

Packaging & Shipping

Packaging is one of the best service of Ronsco, in order to prevent the damage from transit, our finished products are packaged

carefully.All of our stainless steel sheet products will be transported with steel pallets or wooden pallets. Customers will be

guaranteed that the product .they received from Ronsco can go directly into the production and out to the customers as finished product.

1. We are the specialized supplier of stainless steel materials, can provide the best price!

2. We have more than 4 years experience in exporting products to worldwide countries, can provide the high quality products!

3. We have five thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.

4. Wide excellent experiences with after-sale service.

5. Every process will be checked by responsible QC which insures every product's quality.

6. Professional packing teams which keep every packing safely.

7. Trial order can be done in one week.

8. Samples can be provided as your requirements.

ASTM A544 TP304 Stainless Steel Welded Pipe Polished Outside 180 grits50.8*1.5mm*6000mm

Terms Payment

(1)30% in advance, the balance against b/l copy by tt within 3day

(2) 30% in advance, the balance by l/c at sight (large quantity)
Delivery time

(1) within 7days after ur downpayment (stock)

(2)within 30day after ur downpayment(produce according to your request)
Advantage

we have our own steel

factory,and pipe-makinf factory , best quality with reasonable price

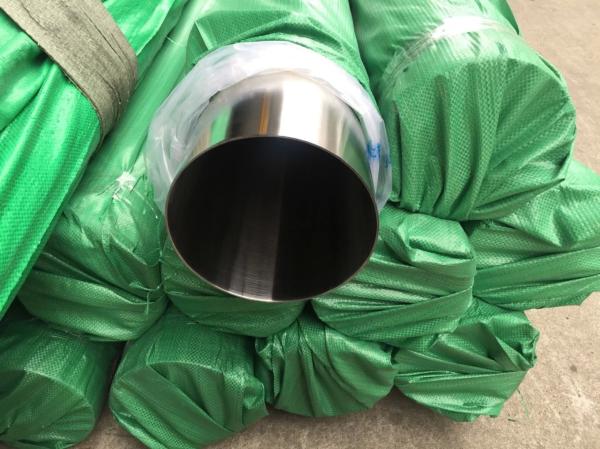

Packing Every tube is sleeved in plastic bag individually, and several tubes are pack

ASTM A544 TP304 Stainless Steel Welded Pipe Polished Outside 180 grits50.8*1.5mm*6000mmASTM A544 TP304 Stainless Steel Welded Pipe Polished Outside 180 grits50.8*1.5mm*6000mm
