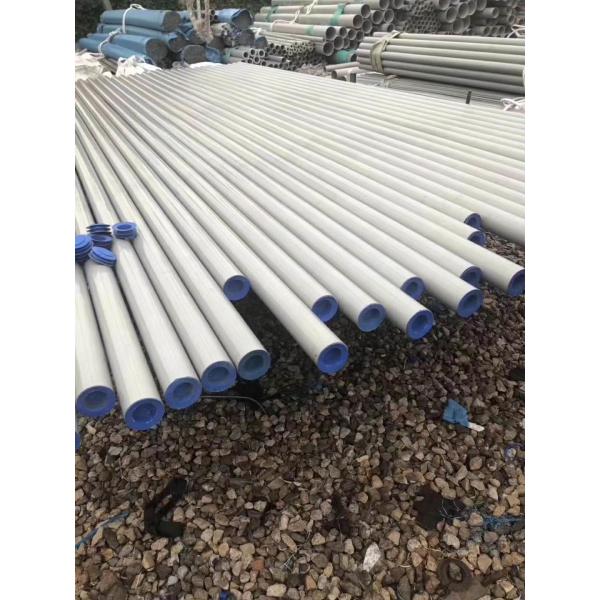

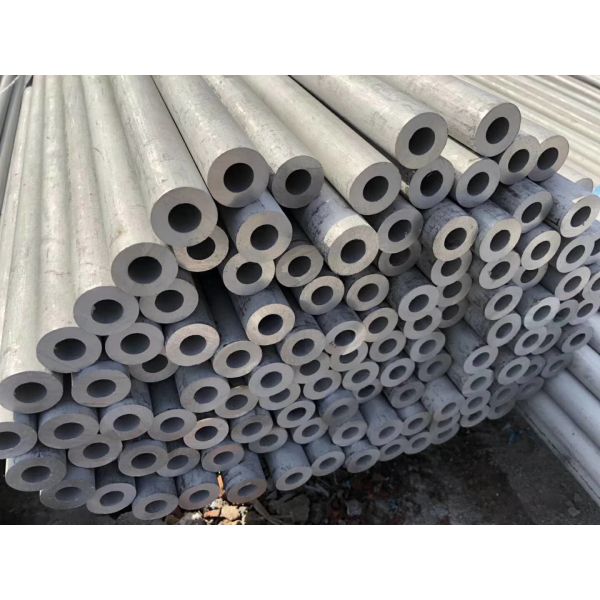

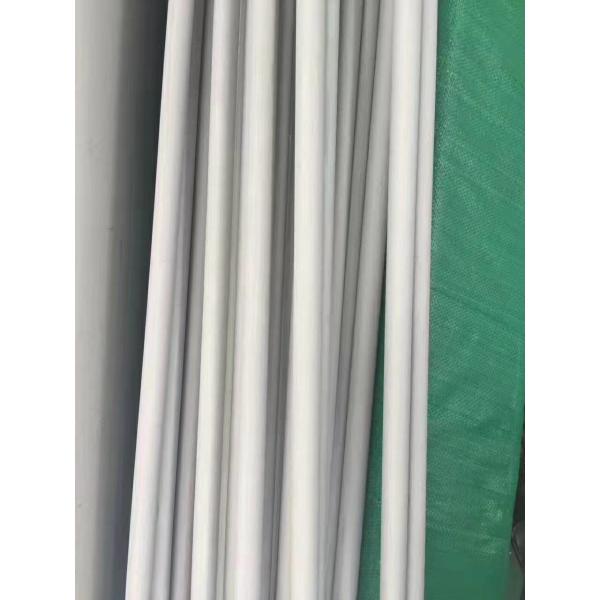

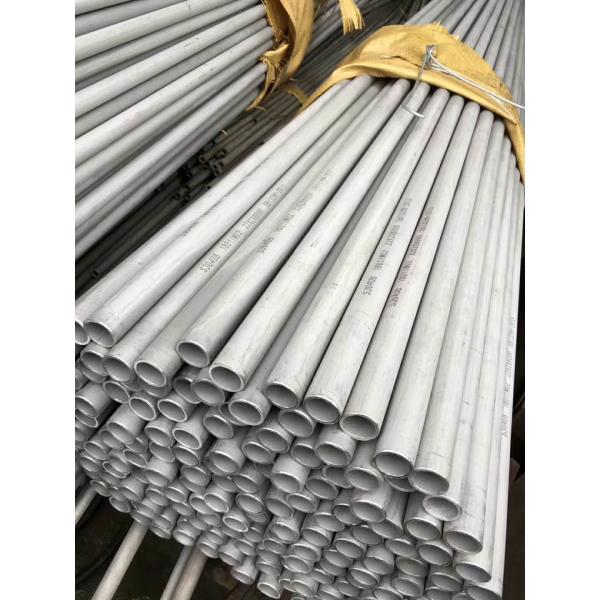

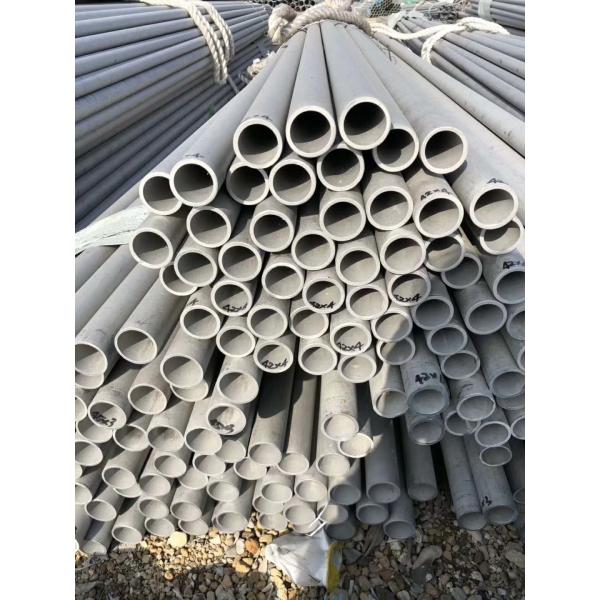

ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
Specifications
Brand Name :
MITTEL
Model Number :
SUS304
Certification :
ASTM A213
Place of Origin :
China
MOQ :
500KGS
Price :
4.15 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Export Packing
OD :
19MM
Thickness :
2mm
Length :
6000-12000mm
Standard :
ASTM A213
Description

Product Name: GB13296/GB14976 S31603/S30408 25*2 Stainless Steel Tube Apply for Heat Exchanger

Description of items:

Material Grade S31603/S30408, etc.
Raw Materials Source from Tsing Shan Group, WALSIN, YXSS etc.
Standard GB13296/GB14976
Outer Diameter 25MM
Wall Thickness 2MM
Length 2M/3M/4M/6M/12M or Random Length
Process Method Cold Rolled and Cold Drawn
Delivery Condition Annealed and Pickled
Heat Treatment Solution annealed 1040℃
NDT Testing UT (Ultrasonic Testing), ET (Eddy Current Testing), HT (Hydrosatic Testing)
MTC EN10204.3.1
Ends PE (Plain Ends)
Marking Logo standard materials grade sizes heat no. Or as customers request
Package Packing by bundles or Wooden Case.
Certificate PED BV TUV ISO TS etc
Application Heat Exchange
Characteristic Corrosion resistance/High temperature resistance/Non-Magnetic
Delivery time Within 65 days after get the deposit. Allowing 5 days as flexibility
Lead Port Shanghai Port China or as customer’s request
Price Term FOB/CNF/CIF etc
Payment Term TT 30% in advance, the balance against BL copy or LC at sight
Main Market Middle East/ Southeast Asia/ South America/South Africa etc
Advantage Reasonable Price with Excellent Quality Materials.

Chemical Composition

C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
S30408 0.08 1 2 0.045 0.03 18.0-20.0 8.0-11
S31603 0.035 1 2 0.045 0.03 16.0-18.0 10.0-14.0 2.0-3.0

Mechanical Testing S30408

Item Tensile Strength Mpa Yield Strength Mpa Elongation % Hardness
Spec. ≥515 ≥205 ≥35 ≤90
25*2 565 260 40 80

Application :

Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 .

heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

ASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm LengthASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm LengthASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm LengthASTM A213 Heat Exchanger Stainless Steel Seamless Tube SUS304 19OD X 2mm Thick X 6000mm Length
