3T - 304 2B finish Stainless Steel checker Plate with Mill Edge Or Slit Edge
3T - 304 2B finish Stainless Steel checker Plate with Mill Edge Or Slit Edge
Specifications
Brand Name :
TISCO
Model Number :
200 Series/300 Series/400
Certification :
ISO
Place of Origin :
China
MOQ :
1 ton
Price :
USD1000-3000/T
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 T/month
Delivery Time :
5-8 work days
Packaging Details :
Standard seaworthy package,including:wooden boxes package,pvc package, and other package
Finish :
2B,SB,HL,NO.1,NO.4,6K,8K
Length :
100-12000mm
Application :
All industry, Construction,petroleum &chemical, Construction
Edge :
mill edge or slit edge
Processing :
Hot Rolled or Cold Drawn
name :
3T-304 2B finish Stainless Steel checker Plate
Description

Checkered Finish Stainless Steel Plate

Product Description

Stainless steel Sheet

Type stainless steel
Thickness 0.3-3.0mm or Customer's request
Size 1500*3000mm,1500*6000mm,1000*2000mm,1800*6000mm, or as request.
Application Decoration , construction etc
Surface 2B,BA,HL,BK,NO.1,No.4, Hairline, Mirror, Etching, PVD Color, Embossed, Vibration, Sandblast
Material 201/201/304/304L/316/316L/420/309S/310S/904L
Origin POSCO,JISCO,TISCO,LISCO,BAOSTEEL etc.
Packing way PVC+ waterproof paper + strong sea-worthy wooden package

Chemical & Mechanical & Physical Properties

Chemical Properties:
C Mn Si P S Cr Ni N
304 0.07max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5 —
Mechanical Properties:
Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
304 75 30 40 201 92
Physical Properties:
Density
lbm/in3		 Thermal Conductivity
(BTU/h ft. °F)		 Electrical
Resistivity
(in x 10-6)		 Modulus of
Elasticity
(psi x 106		 Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6		 Specific Heat
(BTU/lb/
°F)		 Melting
Range
(°F)
at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
12.4 at 932 °F 39.4 at 752°F 10.2 at 32 – 1000°F
49.6 at 1652 °F 10.4 at 32 – 1500°F
Product Description

Stainless steel checkered plate can be divided into original and stamping processing , two kinds of stainless steel checkered plate have some common points, which are non slip, anti rust, corrosion resistance and durable appearance. The original one's surface is rugged slip shape pattern, flat back. This stainless steel checkered plate is made in the whole sheet, need'nt to post processing, and it is used in the higher requirements of large buildings, ships, cars and other non slip series. But stamping skid plate is made of stainless steel plate by large mechanical stamping stamping eq uipment out of the surface and the back is rugged skid plate, the characteristics of the board is which thickness of the skid plate all can pressing processing, it's flexible. But its shortcoming is the entire board will not smooth. And it's used in the request is not a very high civilian decoration occasions.

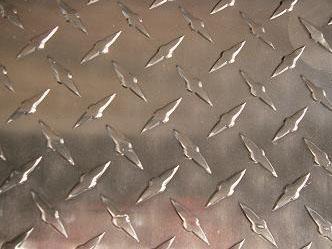

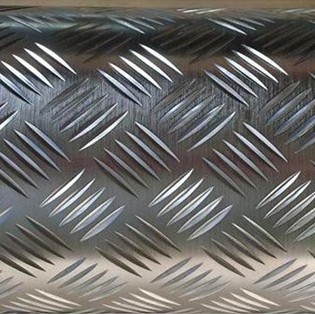

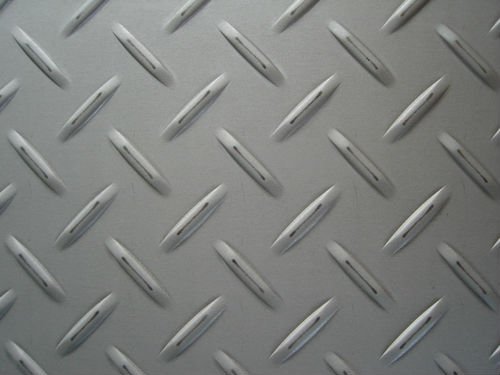

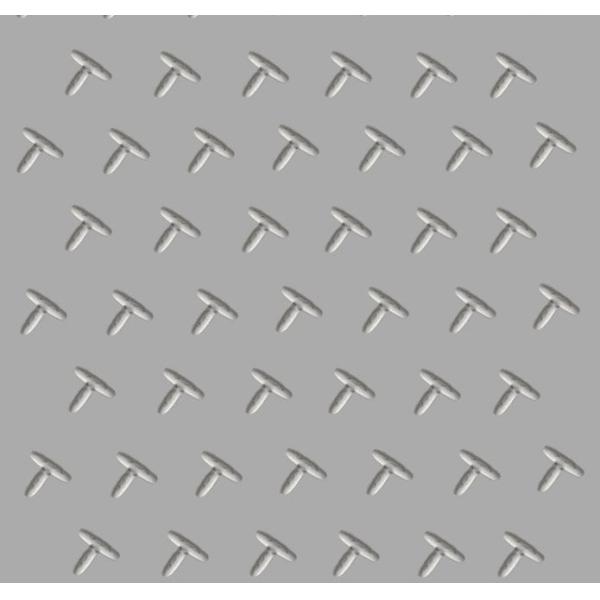

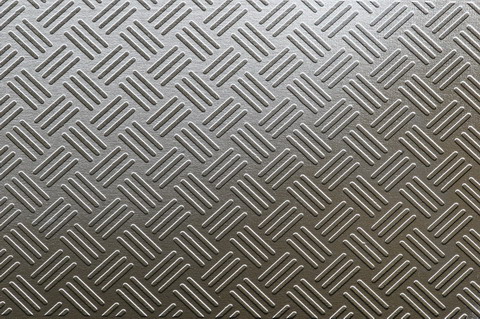

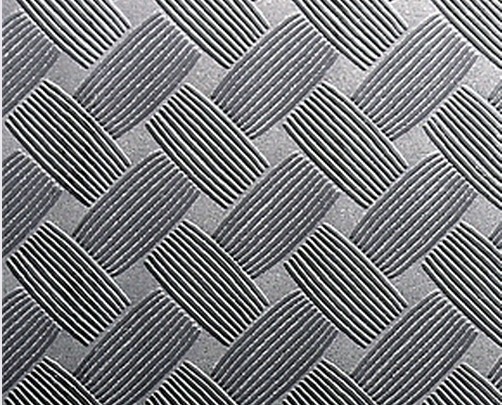

Finished Products

3T - 304 2B finish Stainless Steel checker Plate with Mill Edge Or Slit Edge

3T - 304 2B finish Stainless Steel checker Plate with Mill Edge Or Slit Edge

3T - 304 2B finish Stainless Steel checker Plate with Mill Edge Or Slit Edge3T - 304 2B finish Stainless Steel checker Plate with Mill Edge Or Slit Edge3T - 304 2B finish Stainless Steel checker Plate with Mill Edge Or Slit Edge

FAQ:

Q1:How many coutries you already exported ?
A1:Exported to more than 30 countries mainly from America, Russia, UK, Kuwait, Egypt, Iran, Turkey, Jordan, etc.

Q2:How can I get some samples?
A2:Small samples in store and can provide the samples for free. Catalgue is available, most patterns we have ready samples in stock. Customized samples will take about 5-7days.

Q3:What is the MOQ?
A3:Stainless steel coils 1 ton, pattern sheets 50pcs.

Q4:What is the delivery ?
A4:Sample order’s delivery time is 5- 7 days. Container orders are about 15-25 days.

Q5:How does your company do regarding quality control?
A5:BV and SGS certificates, production process followed the ISO 9000 system.

Q6:How To Protect The Sheets?
A6:Two white and black PE layers to cover the surface, each layer is 70 micro (Total 140 micro), laser PVC is also workable.( Novacel or poli-film brand )

Q7:What is the application about your Products?
A7: 1.elevator door/cabin or and escalator’s side-wall.

2.Wall cladding inside or outside meeting room/ restaurant.

3.Facade when cladding over something, like columns in the lobby.

4.Ceiling in the supermarket.

5.Decorative draws in some entertainment places.

Q8: Can You Guarantee for This Product?
A8:Original materials quality certificate can be provided.
