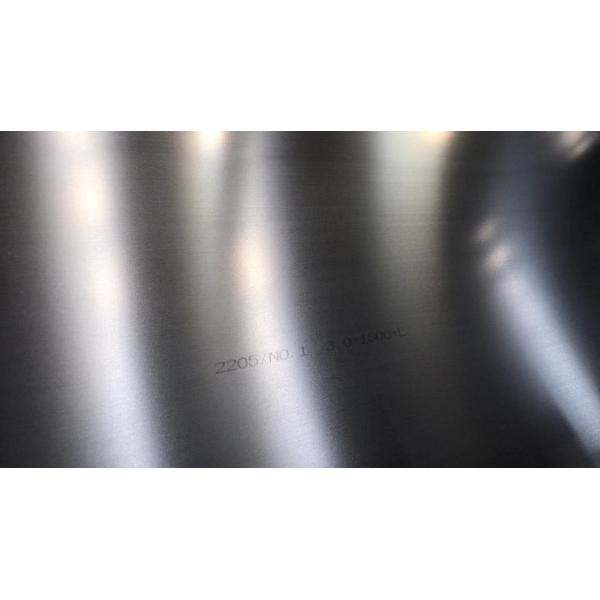

S32205 Duplex Steel Plate NO.1 Surface S31803 S32205 1.4462 Stainless Steel Plate
S32205 Duplex Steel Plate NO.1 Surface S31803 S32205 1.4462 Stainless Steel Plate
S32205 Duplex Steel Plate NO.1 Surface S31803 S32205 1.4462 Stainless Steel Plate
S32205 Duplex Steel Plate NO.1 Surface S31803 S32205 1.4462 Stainless Steel Plate
S32205 Duplex Steel Plate NO.1 Surface S31803 S32205 1.4462 Stainless Steel Plate
S32205 Duplex Steel Plate NO.1 Surface S31803 S32205 1.4462 Stainless Steel Plate
Specifications
Brand Name :
AUTO KUMPO / TISCO / BAOSTEEL
Model Number :
S31803 S32304 S32550 S32205 S32750 S32760
Certification :
SGS,BV
Place of Origin :
China(mainland)
MOQ :
1 Ton
Price :
4000-4500 USD/Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000Tons
Delivery Time :
5-10 days according to the quantity
Packaging Details :
standard export seaworthy packing or as required
company type :
agent of TISCO
processing technology :
cold rolled
Surface :
2B BA NO,1 NO.4 HL Mirror 8K
surface :
2B BA NO.4 Mirror 8K
standard :
ASTM AISI GB DIN JIS EN
certificate :
SGS/BV
Description

S31803 (1.4462) and S32205 Duplex Steel

Duplex UNS S31803 / UNS S32205 | 1.4462

Our company stocks a wide range of large area duplex stainless steel plates which are certified to material grades UNS S31803, UNS S32205, and 1.4462. These steels are also compatible with the branded 2205 designation.

Our products Brand is TISCO BAOSTEEL .etc, it's all the famous stainless steel manufactor in China. In addition the material is enhanced with further tests such as E562 microstructure analysis, and corrosion testing to G48 or A293 Method C. In order to further ensure good corrosion resistance, all stock is purchased with a guaranteed minimum PREN of 35.

All material is produced and certified in accordance with NORSOK MDS D45 with plates up to and including 35 mm thick certified to Revision 4. Mill test certificates are produced with third party inspection to EN 10204 3.2.

S31803 / S32205 Properties

Chemical Analysis (% max or range)

C Mn P S Si Cr Ni Mo N
0.03 2.00 0.03 0.02 1.00 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20

Mechanical

Tensile Yield Elongation Hardness
MPa min MPa min % min Brinell max
620 450 25 293

S31803 / S32205 Duplex Stainless Steel

Thickness (mm) Plate Sizes (mm)
5 12000 x 2000
6 12000 x 2000 12000 x 2500 12000 x 3000
8 12000 x 2000 12000 x 2500 12000 x 3000
10 12000 x 2000 12000 x 2500 12000 x 3000
12 12000 x 2000 12000 x 2500 12000 x 3000
15 12000 x 2000 12000 x 2500 12000 x 3000
20 12000 x 2000 12000 x 2500 12000 x 3000
25 12000 x 2000 12000 x 2500 12000 x 3000
30 6000 x 2000 5000 x 2500
35 6000 x 2000 5000 x 2500
40 6000 x 2000 5000 x 2500
45 6000 x 2000 5000 x 2500
50 6000 x 2000 5000 x 2500
