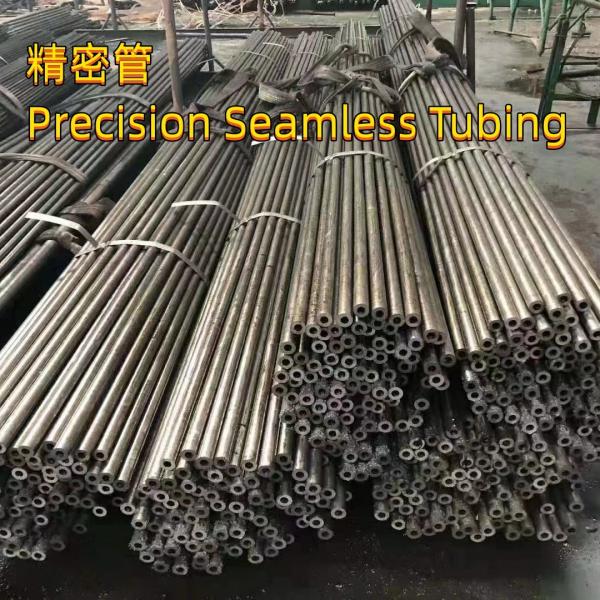

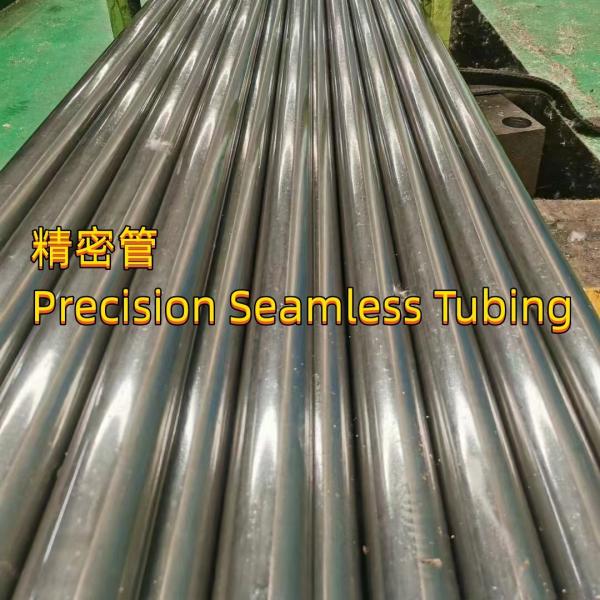

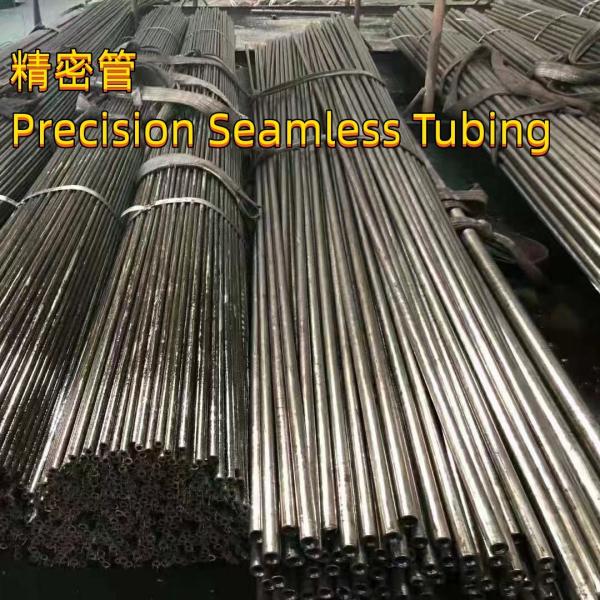

Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0

Product description

Q235B, Q195B Thick Wall Heavy Wall Competitive Seamless Carbon Steel Pipe Price Per Ton

According to customer’s demanded material to produce the round bar, then making annealled heat treatment, then drill the hole as customer demanded inner diameter into the round bar, round bar piercing, making rough hole, then make precision processing to make outer diameter and inner diameter as requested. Any size hollow bar can be produced as demanded.

Tolerance for hollow round bar, forged round bar drilling hole hollow bar ASME SA530

length tolerance -0 - +50mm

Round bar making Hollow bar cost is high

2. Hot rolled Hollow Bar

using hot rolled steel pipe billet to make heating and piercing, elongating, sizing and stranghtening, cooling, finally hollow bars finished, this is the type most commonly used. Because it is hot rolled, so cost is lowest, but it is suit for large quantity, for small quantity, have to make cold drawn or round bar piercing. size: outer diameter 32mm- 499mm, wall thickness 4mm- 80mm

3. Cold drawn Hollow Bar

for outer diameter not over than 63.5mm, small size hollow bar, when demanded quantity is under 5 tons, usually make cold drawn hollow bar, using larger size hot rolled hollow bar to draw to the size demanded.

some size can be finished only by one time drawing, but some other sizes might need twice or three times to finish drawing, it takes time, so the cost is higher.

cold drawn size outer diameter 32mm- 63.5mm

4. Hot- expanding Hollow Bar

For hollow bar sizes are special, not common sizes, have to use smaller thick wall hollow bar to hot expand to be larger size hollow bar, but the technical property for hot-expanded hollow bar will be lower than the original hollow bar. Size: outer diameter over 356mm.

Delivery conditions:
BK (+C) BKW (+LC) BKS (+SR) GBK (+A) NBK (+N)
Major Inspection Items: Tensile stength, Yield stength, Elongation, Flattenging, Flaring, Chemical analysis Eddy Current Test
100%, Size and surface checking 100%
Certificates: according to EN 10204 3.1
Applications:
1. For Vehicle (Automotive, locomotive, Construction Machinery like Concrete pump and others)
A. Powertrain system:
• Fuel-rails • Fuel-lines • Common-rail diesel lines • Piston-cooling jets • SCR & EGR
• Rigid pipes • Oil- & water-cooling pipes
B. Fluid handling systems
• Tube assemblies • Air-conditioning tube • Clutch actuator pipes C. Drive and steering system • Ingrain Gear Pipes •
Power-Steering Feed-Pipes
D. Hydraulic system
• Hydraulic and Pneumatic Pressure Lines • Hydraulic fittings • Hydraulic tubing
E. Others For example
• Front axles • Sun-shading board wire tube and other wire tubes • Headrest chair Tube

2. Mechanical and engineering usage
• Mechanic Processing and parts • Metal processing •Heat Exchange • Gas Cylinders
•Sub-sea and Marine • Aerospace • Winder Power Equipment •Energy and Power Generation •Bearings • etc

Other usage for details as per customers requirements
