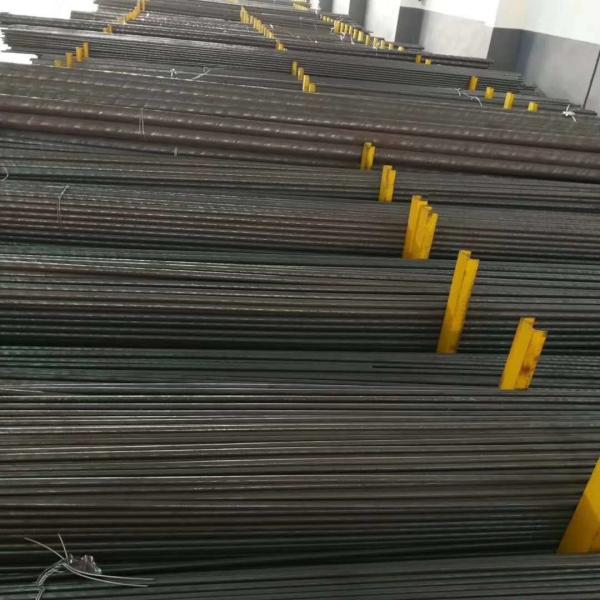

3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
Specifications
Brand Name :
Mittel
Model Number :
1J50 1J79 3J53 4J29 4J36 4J42
Certification :
ISO,BV,SGS
Place of Origin :
China
MOQ :
100KGS
Price :
3.65USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
80000KGS
Delivery Time :
7 Working Days
Packaging Details :
Wooden Pallet BOX
Type :
Round
Application :
Construction
Standard :
1J50 1J79 3J53 4J29 4J36 4J42
Dimensions :
5.5mm-500mm
Surface :
bright,Polished
Technique :
Cold drawn&hot rolled
Length :
Customers' Requirements
Packing :
Standard Seaworthy Package
Sample :
Available
Price term :
CIF CFR FOB Ex-Work
Description

Product Detail

Basic Info

  • Model NO.:1J50

  • Product Type:Rod

  • Material:1j50 Soft Magnetic Alloy

  • Carbon Content:Low Carbon

  • PCD:0.1-200mm

  • Steel Grade: 1j50:Standard: AISI, ASTM, DIN, JIS

  • Place of Origin: Liaoning, China (Main:Model Number: 1j50

  • Technique: Hot Rolled:Brand Name: MITTEL

  • Application: Tool Steel Bar:Alloy or Not: Is Alloy

  • Special Use: Free Cutting Steel:Type: Alloy Steel Bar

  • Shape: Round Bar, Coil, Plate, Sheet,:Min.Order Quantity:100 Kilogram/Kilograms

  • Trademark:MITTEL

  • Specification:AISI, ASTM, DIN, JIS

  • Origin:Liaoning, China (Mainland)

Product Description
1J50 round bar soft magnetic alloys

Characteristics: These alloys have an excellent soft magnetic property.
Material can be 1J50,1J79,1J85, 1J36,1J77,1J87 ect.

1.Typical chemical composition
material C Si Mn P S Ni Cr Mo Fe
1J50 0.010 0.17 0.35 0.006 0.005 49.80 0.02 Bal
1J79 0.010 0.38 0.85 0.005 0.003 79.50 0.02 3.95 Bal
1J85 0.010 0.18 0.35 0.005 0.003 80.30 0.02 4.95 Bal


2.physical properties
material density(g/cm3) mean coefficient of thermal expansion(10-6/°c) curie point(°c) electrical resistivity(μΩ.cm) thermal conductivity(w/m.°c)
1J50 8.2 8.2(20°c-100°c) 498 45(20°c) 16.5
1J79 8.6 11.0 (20°c-100°c) 450 55(20°c) 13.4
1J85 8.75 12.4 (20°c-100°c) 450 56(20°c) 18.7


3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar3-300mm Soft Magnetic Alloy 1J50 1J79 3J53 4J29 4J36 4J42 Alloy Round Bar
