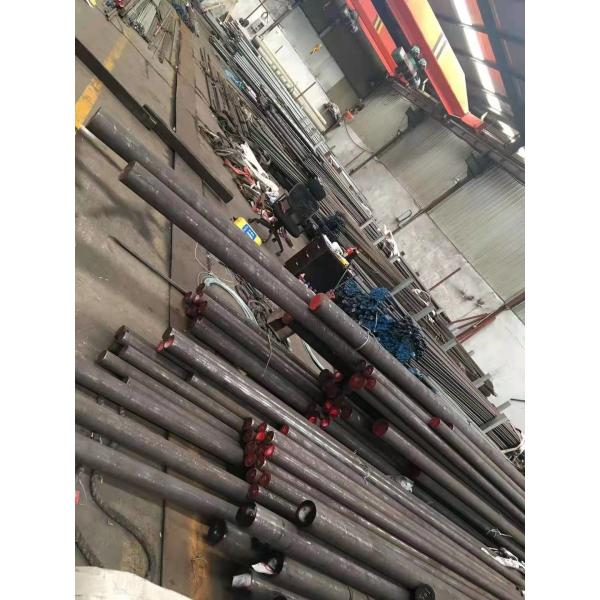

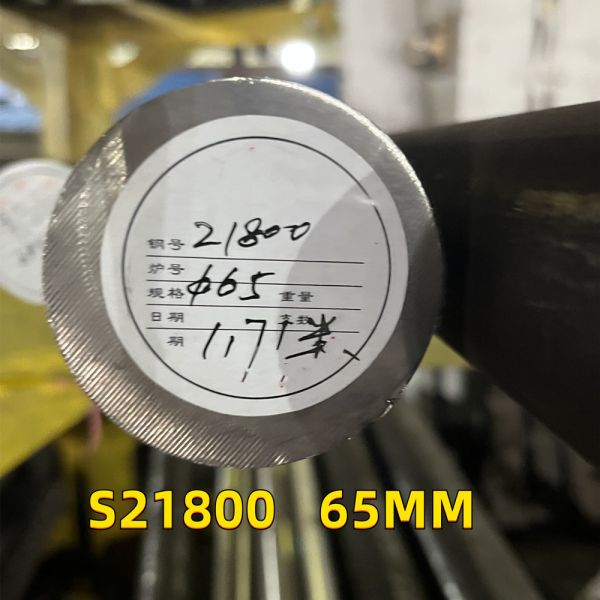

Nitronic 60 Round Bright Bar Alloy 218 UNS S21800
Nitronic 60 Round Bright Bar Alloy 218 UNS S21800
Nitronic 60 Round Bright Bar Alloy 218 UNS S21800
Nitronic 60 Round Bright Bar Alloy 218 UNS S21800
Nitronic 60 Round Bright Bar Alloy 218 UNS S21800
Nitronic 60 Round Bright Bar Alloy 218 UNS S21800
Specifications
Brand Name :
Mittel
Model Number :
Nitronic 60 S21800
Certification :
ISO,BV,SGS
Place of Origin :
China Wuxi
MOQ :
20KGS
Price :
10.5 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
300 tons
Delivery Time :
7 Working Days
Packaging Details :
Wooden Pallet BOX
Type :
Round,Alloy Steel Bar
Application :
Construction,decoration,Industry,Mechineal
Standard :
DIN,ASTM,AISI
Grade :
Nitronic 60
Shape :
Round
Dimensions :
5.5mm-500mm
Surface :
bright,Polished,black
Technique :
Cold drawn&hot rolled
Length :
Customers' Requirements
Packing :
Standard Seaworthy Package
Price term :
CIF CFR FOB Ex-Work
Description

NITRONIC 60 Round Bar Specification

Standards Designation
ASTM A 276

Length Diameter
1-6m 6mm-500mm

Type Certification
NITRONIC 60 Round Bar ISO 9001:2008



Below you will find a brief overview of a number of stainless steel bar specifications. If you do not see a specification listed, please contact us.

BS JIS IS DIN ASTM
Semi Free Cutting Steel 15AM/8M SMn433H,SUM 41

13S25/

40C10S

18/40Mn15S12

 — 1137,1140
Free Cutting Steel EN-1A
EN-1A L		 SUM-23
SUM-24 L		 11C10S25
——

9SMn30
9SMnPb30/

11SMnPb30

1212/

1213
12L14/

12L15

Stainless Steel Bar Specifications

ASTM A276

 This specification encompasses cold-finished or hot-finished bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels.

ASTM A479

 This specification includes cold and hot finished stainless steel bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels.

ASTM A484

 This specification includes wrought stainless steel bars, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions.

ASTM A582

 This specification includes cold or hot finished bars, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels.

ASTM B473

 This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition.

Useful information of NITRONIC 60 Round Bar

NITRONIC 60 Round Bar Chemical Composition

Ni Cr Mn Si C N S P Fe
MIN
8.0
16.0
7.0
3.5
-
0.08
-
-
-
MAX
9.0
18.0
9.0
4.5
0.10
0.18
0.03
0.06
Balance

NITRONIC 60 Round Bar Physical Properties

Temperature, °F 70 200 400 600 800 1000 1200 1400 1600 1800
Coefficient of Thermal Expansion, in/in°F x 10-6 - 8.8 9.2 9.6 9.8 10.0 10.3 10.5 10.7 11.0
Modulus of Elasticity,
psi X 106 STA		 - 26.2 - - - - - - - -

* 70°F to indicated temperature.

NITRONIC 60 Round Bar Mechanical Properties

Ultimate Tensile Strength, ksi 95
0.2% Yield Strength, ksi 50
Elongation, % 35
Reduction of Area, % 55
Hardness MAX, Brinell 241

Typical Tensile Properties Annealed Bar ¾ – 1"

Temperature, °F 68 200 400 600 800 1000 1200 1400 1600
Ultimate Tensile Strength, ksi 106.5 98.2 84.4 80.5 78.3 75.4 66.6 49.8 30.2
0.2% Yield Strength, ksi 56.5 44.4 32.8 29.7 29.0 28.0 28.1 25.3 16.4
Elongation, 2% 61.7 63.3 64.0 59.6 65.5 52.2 48.2 47.1 72.8

Nitronic 60 Round Bright Bar Alloy 218 UNS S21800Nitronic 60 Round Bright Bar Alloy 218 UNS S21800

Nitronic 60 Round Bright Bar Alloy 218 UNS S21800
