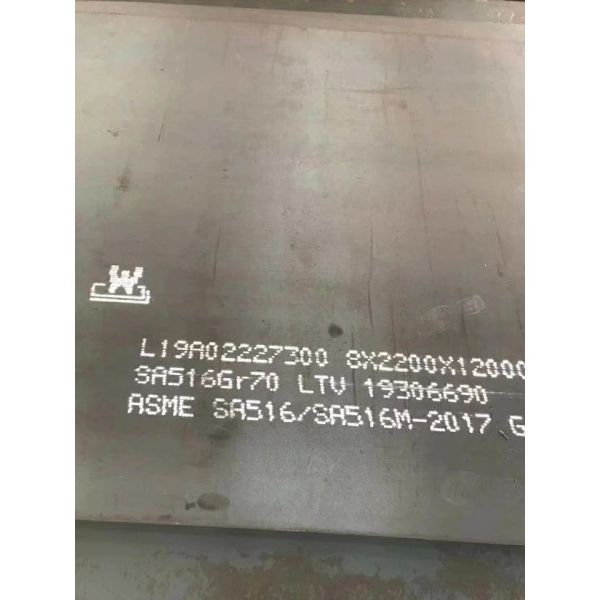

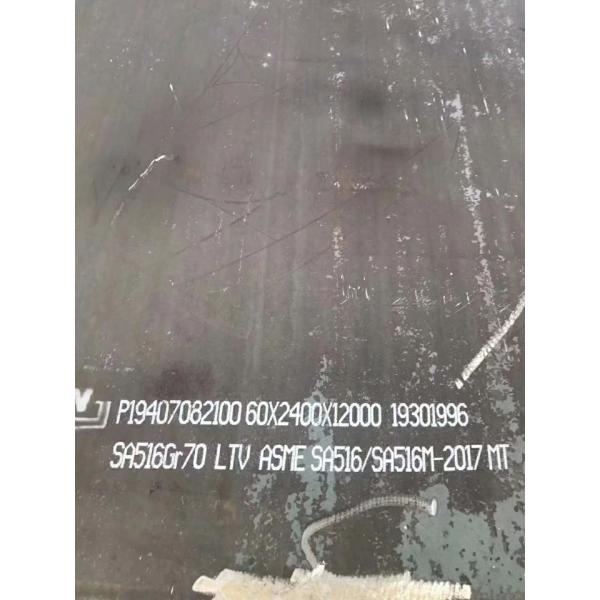

ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler
ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler
ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler
ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler
Specifications
Brand Name :
Bao Steel
Model Number :
Asme Sa516 Grade 70
Certification :
SGS ISO MTC BV
Place of Origin :
China
MOQ :
100KGS
Price :
0.75 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
80000KGS
Delivery Time :
7 Working Days
Packaging Details :
Wooden Box Wooden Pallet
Width :
600-2500mm
Grade :
Asme Sa516 Grade 70
Application :
Boiler Plate
Technique :
Hot Rolled
Type :
Steel Plate
Standard :
ASTM
Length :
1000-12000mm
Special use :
Pressure Vessel Boiler
Thickness :
6-400mm
Product name :
Boiler Quality Pressure Vessel Steel Plate
Shape :
Flat Steel Plate
Coil weight :
3-8 Tons
Description

ASTM A516 Grade 70 / ASME SA516 Grade 70 - Specifications and Standards

The specifications and standards of ASTM A516 Grade 70 and ASME SA516 Grade 70 carbon steel plate are outlined in table 1.

Table 1. Equivalent Specifications and Standards of ASTM A516 Grade 70 / ASME SA516 Grade 70

Standard Description
ASTM/ASME A/SA516 - Grade 70
DIN Standard -
British Standard BS1501-224-490A/B
European Norm EN10028 P355GH

ASTM A516 Grade 70 / ASME SA516 Grade 70 - Chemical Composition

The chemical composition of ASTM A516 Grade 70 and ASME SA516 Grade 70 carbon steel plate are listed in table 2.

Table 2. Typical Chemical Composition of ASTM A516 Grade 70 / ASME SA516 Grade 70

Composition Percentage % Composition Percentage %
C 0.10/ 0.22 Cu 0.3
Si 0.6 Ni 0.3
Mn 1/ 1.7 Mo 0.08
P 0.03 Nb 0.01
S 0.03 Ti 0.03
Al 0.02 V 0.02
Cr 0.3

ASTM A516 Grade 70 / ASME SA516 Grade 70 - Mechanical Properties

The mechanical properties of ASTM A516 Grade 70 and ASME SA516 Grade 70 carbon steel plate are outlined in table 3.

Table 3. Typical Mechanical Values of ASTM A516 Grade 70 / ASME SA516 Grade 70

Properties Value
Tensile Strength (N/mm2) 510/ 650
Yield stress/ min (N/mm2) 335

ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For BoilerASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler
