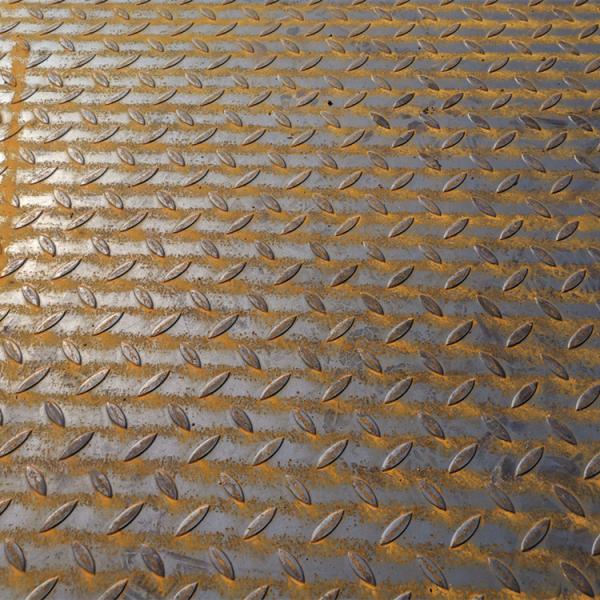

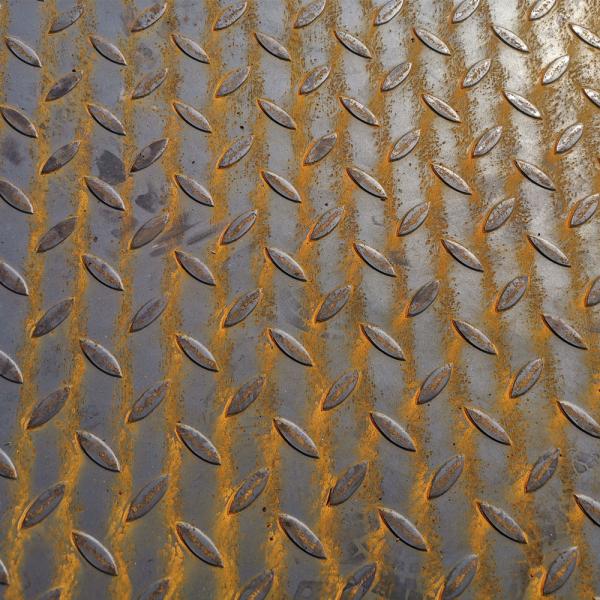

ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
Specifications
Brand Name :
TISCO MITTEL
Model Number :
ASTM A36
Certification :
SGS ISO MTC
Place of Origin :
China Jiangsu
MOQ :
3Ton
Price :
650 USD/Ton
Payment Terms :
L/C, T/T
Supply Ability :
80000KGS
Delivery Time :
14Days
Packaging Details :
Export Packing
Width :
600-2500mm
Grade :
Q235B A36
Application :
Welding Carbon Steel Materials
Technique :
Hot Rolled
Type :
Steel Plate
Standard :
ASTM
Length :
1000-12000mm
Surface treatment :
black
Thickness :
0.5-100mm
Material :
Q235
Product name :
Plate
Shape :
Flat Steel Plate
Coil weight :
3-8 Tons
Spangle :
Reuglar Spangle
Description

A36 Sheets & Plates Specifications

Specifications for A36 Sheets & Plates. If any specification is not mentioned here, please use the contact button for quick quote.

Specifications ASTM A36 / ASME SA36
Standard AISI, ASTM, BS, DIN, GB, JIS
Thickness 0.5-100mm
Specialize Shim Sheet, Perforated Sheet, B. Q. Profile.
Length 2000-12000 mm
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade MS A36, (UNS K02600)

A36 Sheets & Plates Chemical Composition

Grade min max
C 0.25 0.290
Cu – 0.20
Fe – 98.0
Mn – 1.03
P – 0.040
Si – 0.280
S – 0.050

Mechanical Properties of A36 Sheets & Plates

Properties Metric Imperial
Density 7.85 g/cm3 0.284 lb/in3
Tensile Strength, Ultimate 400 – 550 MPa 58000 – 79800 psi
Tensile Strength, Yield 250 MPa 36300 psi
Elongation at Break (in 200 mm) 20.0 % 20.0 %
Elongation at Break (in 50 mm) 23.0 % 23.0 %
Modulus of Elasticity 200 GPa 29000 ksi
Bulk Modulus (typical for steel) 140 GPa 20300 ksi
Poissons Ratio 0.260 0.260
Shear Modulus 79.3 GPa 11500 ksi

A36 Sheets & Plates – Equivalent Grades

STANDARD MS A36
WERKSTOFF NR. 50049 3.1
UNS K02600

  • A36 Coils
  • A36 UNS K02600 Coils
  • A36 WERKSTOFF NR. 50049 3.1 Coils
  • A36 Strips
  • A36 UNS K02600 Strips
  • A36 WERKSTOFF NR. 50049 3.1 Strips

  • A36 Foils
  • A36 UNS K02600 Foils
  • A36 WERKSTOFF NR. 50049 3.1 Foils
  • A36 Shim Sheet
  • A36 UNS K02600 Shim Sheet
  • A36 WERKSTOFF NR. 50049 3.1 Shim Sheet

ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRCASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRCASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
