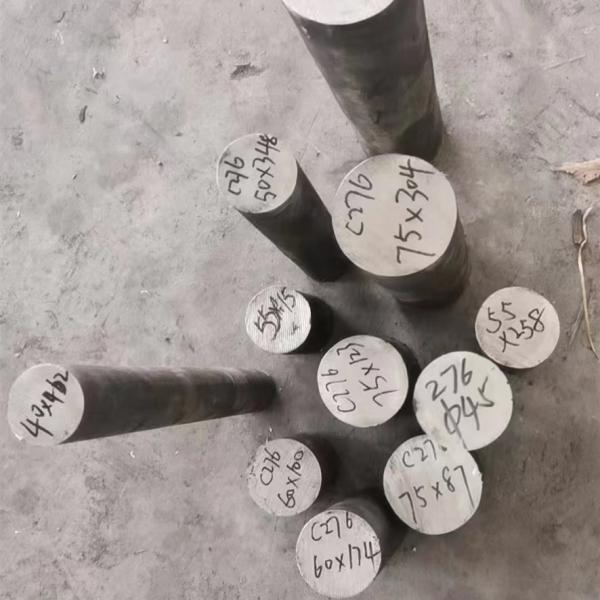

C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar
C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar
C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar
C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar
C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar
C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar
Specifications
Brand Name :
MITTEL
Model Number :
C276
Certification :
SGS ISO MTC
Place of Origin :
China
MOQ :
10KGS
Price :
28.5 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Wooden Box
Grade :
Nickel Base Alloy,Hastelloy C276
Application :
Industry,construction,used in chemical,spun
Type :
Nickel Bar
Ni (min) :
Balance
Surface :
Polished,Black or Bright
Standard :
ASTM,DIN,EN,AISI
Material :
No 10276
Size :
According to client's requirements,as required
Description
Stock Size Range and Specifications For ASTM B574 Hastelloy C276 Round Bar

Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI

Standard Specification : ASTM B574 / ASME SB574

Size : 15NB to 150NB IN

Diameter : 3.17mm to 350mm diameter

Length : 100 mm to 3000 mm Long & Above

Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc

Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline

Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished

Chemical Composition of Hastelloy C276 Round Bars
Grade C Mn Si S Co Ni Cr Fe Mo P
C276 0.010 max 1.00 max 0.08 max 0.03 max 2.50 max 50.99 min* 14.50 – 16.50 4.00 – 7.00 15.00 – 17.00 0.04 max

Mechanical Properties of Hastelloy C276 / N10276 / 2.4819 Round Bars
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %

Markings On The Hastelloy C276 Round Bar

The full identification of the bars should be continuously marked down its whole length, including :

  • Rating Designation
  • Material Designation
  • "WP" in grade symbol
  • Grade
  • Schedule number or nominal wall thickness
  • Heat Code
  • Manufacturer’s Name or Symbol

ASTM B574 Hastelloy C276 Bars Application Industries
  • Petrochemical Industry
  • Chemical Industry
  • Oil and Gas Industry
  • Pulp & Paper Indusry
  • Power Plant Industry
  • Food Processing Industry
  • Pharmaceuticals Industry
  • Energy Industry
  • Aerospace Industry
