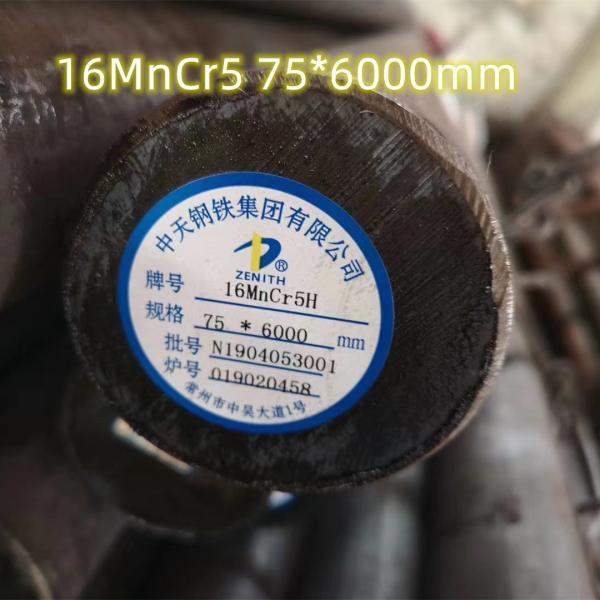

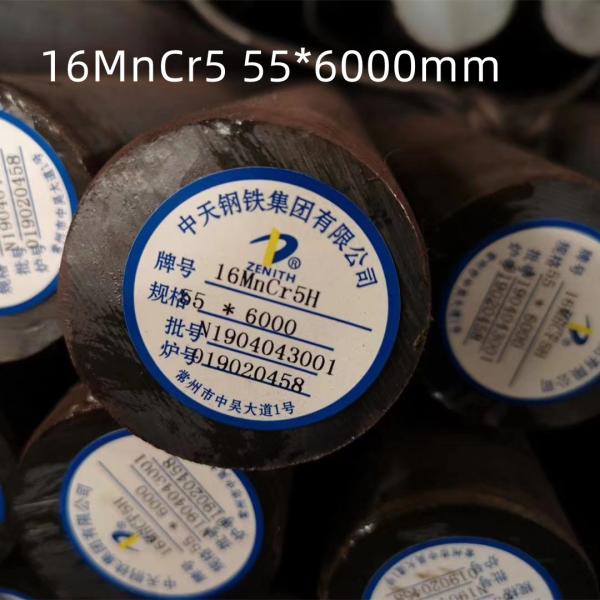

Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod
Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod
Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod
Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod
Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod
Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod
Specifications
Brand Name :
Bao Steel
Model Number :
16MnCr5
Certification :
SGS ISO MTC
Place of Origin :
China
MOQ :
2 Tons
Price :
850 USD/Ton
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Tons
Delivery Time :
7 days
Packaging Details :
Export Packing
OD :
6-500mm
Surface :
Black and Bright
Length :
3-12m
Condition :
Heat Treatment
Type :
Hot Rolled
Steel grade :
Alloy Steel
Alloy or not :
Is Alloy
Technique :
Hot Rolled,Forged,Cold Drawn
Application :
Die Steel Bar,Tool Steel Bar,chemical
Standard :
ASTM,DIN,AISI
Shape :
Round
Surface treatment :
Black/Peeling/Polishing/Machined
Diameter :
12mm-650mm
Delivery condition :
annealed
Heat treatment :
Normalized +Annealed +Quenched + Tempered
Description

Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod

EN 1.7131 Steel 16MnCr5 Material

EN 1.7131 steel (16MnCr5 material) is an European standard carburized steel (case hardening steel) with good hardenability and machinability. For larger cross-section parts, high surface hardness and wear resistance can be obtained after heat treatment, and low-temperature impact toughness is also high. For specification and datasheet, please see the tables below.

16MnCr5 steel is generally used after carburizing and quenching, and is mainly used for manufacturing gears, worms, sealing bushings and other components.

Datasheet

The following tables show material 16MnCr5 datasheet and specification including chemical composition, mechanical properties, etc.

(DIN EN 1.7131 Material) 16MnCr5 Steel Chemical Composition

The following table shows chemical composition of 16MnCr5 material (1.7131 steel).

Chemical Composition %
Standard Steel Name (Steel Number) C Si ≤ Mn P ≤ S Cr
EN 10084 16MnCr5 (1.7131) 0.14-0.19 0.40 1.00-1.30 0.025 ≤ 0.035 0.80-1.10
EN 10084 16MnCrS5 (1.7139) 0.14-0.19 0.40 1.00-1.30 0.025 0.020-0.040 0.80-1.10

Mechanical Properties of 1.7131 Steel (16MnCr5 Material)

1.7131 material, 16MnCr5 steel Brinell hardness

  • Soft annealed: ≤ 207 HBW
  • Treated to hardness: 156-207 HBW
  • Treated to ferrite-pearlite structure and hardness: 140-187 HBW
  • Normalized: 138-187 HBW

EN 1.7131, 16MnCr5 Tensile strength (after hardening and tempering at 200 °C)

  • Dia. ≤ 16mm: Min. 1000 MPa
  • 16 < Dia. ≤ 40mm: Min. 800 Mpa
  • 40 < Dia. ≤ 100mm: Min. 600 Mpa

Heat Treatment Specification of 16MnCr5 (1.7131 Steel)

  • End quench test Austenitizing temperature: 870℃ (30-35 minutes)
  • Carburizing temperature: 880-980 ℃
  • Core-hardening temperature: 860-900 ℃
  • Case-hardening temperature: 780-820 ℃
  • Tempering: 150 – 200 ℃ (≥ 1 hour)

Equivalent Grade

EN 1.7131 material (16MnCr5 steel) equivalent to ISO, US ASTM AISI SAE, Japanese JIS and Chinese GB standard. (For reference)

16MnCr5 steel equivalent
European ISO USA Japan China
Standard Grade (Steel Number) Standard Grade Standard Grade (a) Standard Grade (b) Standard Grade
EN 10084 16MnCr5 (1.7131) ISO 683-11 16MnCr5 AISI SAE;
ASTM A29/A29M		 5115 JIS G4053 SCr415 GB/T 5216 16CrMnH

(a) and (b): The chemical composition has big difference compared with EN 10084.

Steel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy RodSteel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy RodSteel round bar DIN 16MnCr5 SH (1.7131) 34 mm , BG DIN DIN 17210 Alloy Rod
