Astm A564 Type 630 H1100 17-4ph Stainless Steel Hollow Pipe
Astm A564 Type 630 H1100 17-4ph Stainless Steel Hollow Pipe
Astm A564 Type 630 H1100 17-4ph Stainless Steel Hollow Pipe
Astm A564 Type 630 H1100 17-4ph Stainless Steel Hollow Pipe
Astm A564 Type 630 H1100 17-4ph Stainless Steel Hollow Pipe
Astm A564 Type 630 H1100 17-4ph Stainless Steel Hollow Pipe
Specifications
Brand Name :
Mittel
Model Number :
17-4PH / 630
Certification :
SGS ISO MTC
Place of Origin :
China
MOQ :
100KGS
Price :
4.85 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
80000KGS
Delivery Time :
7 Working Days
Packaging Details :
Wooden Pallet BOX
Application :
Construction,Decoration,Industry,Chemical
Standard :
DIN,ASTM
Steel grade :
630
Diameter :
6 - 508mm
type :
Seamless
Thickness :
1-50mm
Length :
3000mm~6000mm or cutting as request
Shape :
Round.square.Rectangle
Service :
cutting/ polishing
Description

Grade 630 Stainless Steel Seamless Pipe 17-4PH Stainless Steel pipe ASTM DIN EN SS Pipe

Detail informations of our 630 stainless steel pipe

Name Stainless Steel Pipe Grade 17-4PH / 630
Type Seamless Pipe Diameter DN 10 - DN300
Thickness SCH10 - XXS Standard ASTM GB JIS EN DIN
Length 6m random length Service Cutting

Grade Informations

17-4PH is a widely-used martensitic precipitation-hardening stainless steel with a high concentration of chromium and nickel. It has many favorable properties, including excellent strength, good corrosion resistance, and excellent mechanical properties up to 600 °F (316 °C).

The alloy also possesses good toughness when welded, while short low-temperature heat treatments reduce warping and scaling. Additionally, 17-4PH is easy to machine and fabricate.

Thanks to the beneficial properties, 17-4PH finds use in various industries. Typical parts include mechanical seals, oil patch, and pump shafts.

Furthermore, the alloy also finds use in the aerospace industry, petroleum industry, and chemical industry, food processing equipment, paper and pulp industry, nuclear waste processing and storage, and general metalworking.

Stainless Steel 17-4PH Chemical Composition

Element Min (%) Max (%)
Carbon, C – 0.07
Manganese, Mn – 1
Silicon, Si – 1
Sulfur, S – 0.03
Phosphorus, P – 0.04
Chromium, Cr 15 17.5
Niobium + Tantalum, Nb + Ta 0.15 0.45
Nickel, Ni 3.0 5.0
Copper, Cu 3.0 5.0
Iron, Fe – *Balance

Stainless Steel 17-4PH Mechanical Properties

Property Imperial Metric
Ultimate Tensile Strength 23,300 psi 160 MPa
Yield Strength (0.02%) 16,680 psi 115 MPa
Elongation (% in 2’’) 5% 5%
Rockwell Hardness C 35 35

Application of 17-4PH stainless steel

  • Jet engine stator vanes
  • Surgical instruments
  • Aerospace components
  • Components for the chemical, petrochemical and food processing industries

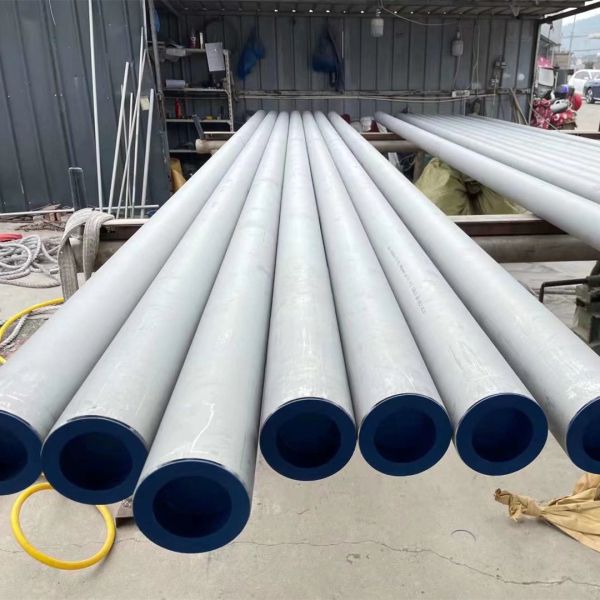

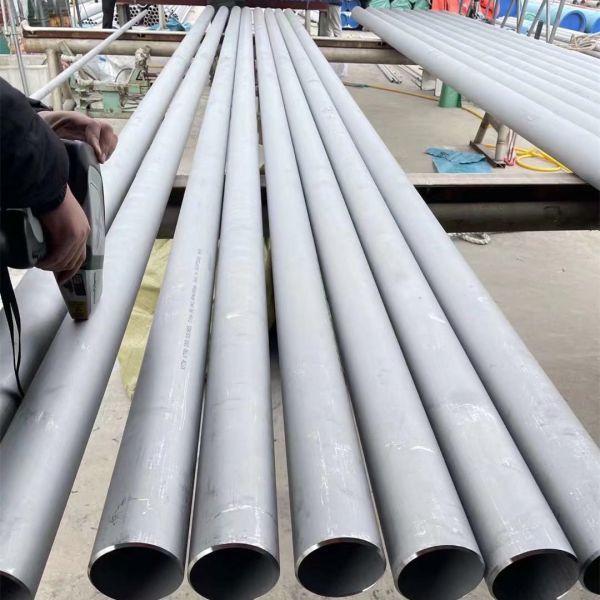

Products' Photos

Astm A564 Type 630 H1100 17-4ph Stainless Steel Hollow PipeAstm A564 Type 630 H1100 17-4ph Stainless Steel Hollow PipeAstm A564 Type 630 H1100 17-4ph Stainless Steel Hollow Pipe
