High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti For Heat Exchangers
Specifications
Brand Name :
DELTA
Model Number :
316Ti / 1.4571 / S31635
Certification :
CE, ISO, BV, SGS
Place of Origin :
Wuxi city, Jiangsu province
MOQ :
1 tons
Price :
USD1000-USD4000 per ton
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000 tons per month
Delivery Time :
7 days
Packaging Details :

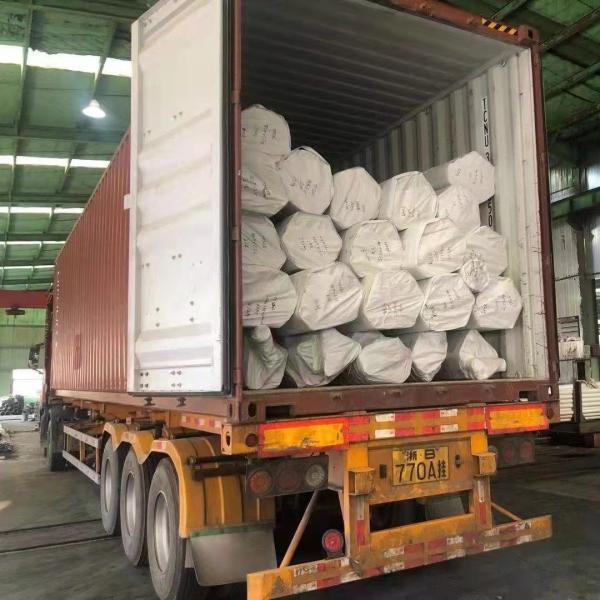

Standard seaworthy packaging by waterproof paper + plywood pallets.
Product name :
stainless steel seamless pipe & Tube
Outer diameter :
DN10 - DN500
Wall thickness :
SCH5 - SCH160
Standard :
AISI, ASTM, JIS, DIN, EN, GB
Color :
natural color
Stock :
always in good stock
Quality :
class 1
Type :
seamless
Main Grade :
304 304L 304H 309S 310S 316L 316Ti 321 347 .etc
Description

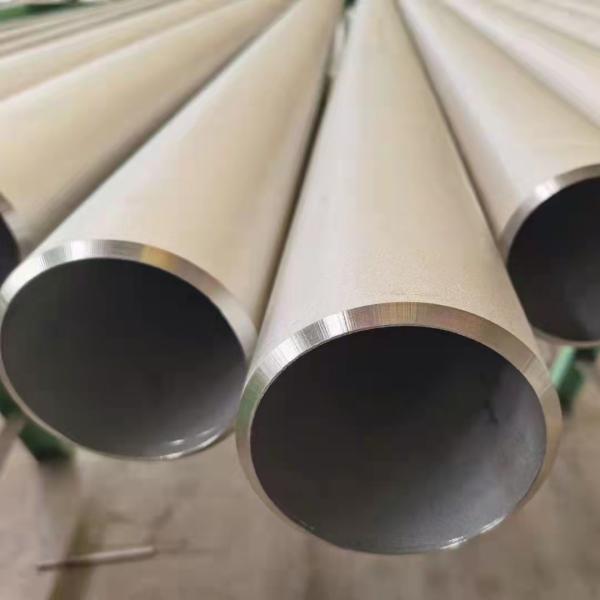

High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti / 1.4571 / UNS S31635


More informations of our stainless steel pipe

Products Stainless Steel Pipe &Tube
Model Number 200 Series:201 202
300 Series:301 302 303 304 304L 309 309S 310 316 316L 316Ti 321 904L
400 Series:410 420 430 440
Duplex stainless:2205 2507
Type Flat/corrugated/checkered
Processing Service Bending,Welding,Decoiling,Punching,Cutting, Moulding
Delivery Time 3-10 days
Payment terms 30%TT Advance+70% Balance against the copy of bill of loading
Sample Sample Avaliable
Inspection Accept Thrid Party Inspection
Port Tianjin Shanghai Qingdao
Certification ISO9001
Packing Standardsea worthy export packing or according to the customers' request.
Applications: Kitchenware,home appliances,construction decoration,stairs,refrigerated container,burner parts,exhaust parts of auto
Container Size: 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)68CBM

About 316Ti Stainless Steel


Type 316Ti is a titanium stabilized variation of alloy 316. This austenitic chromium-nickel stainless steel containing molybdenum which increases the corrosion resistance, improves resistance to pitting chloride ion solutions and provide increased strength at elevated temperatures. Properties are similar to those of alloy 316 except that 316Ti due to its Titanium addition can be used at elevated sensitization temperatures. Corrosion resistance is improved, particularly against sulfuric, hydrochloric, acetic, formic and tartaric acids, acid sulfates and alkaline chlorides.

Applications of 316Ti Stainless Steel

  • Screening application in marine environment
  • Pulp and Paper Equipment
  • Heat exchangers
  • Propeller shafts,
  • Fittings Exterior
  • Architectural components in Marine
  • Coastal Areas
Chemical Composition of 316Ti Stainless Steel
Quality C Mn PA S Si Cr NU B.C T
316Ti (1.4571) 0.08max 2.0 0045 0030 1.0 Between 16.0-18.0 Between 10.0 and 14.0 Between 2.0-3.0 0.70 max

Mechanical Properties at Room Temperature of 316Ti Stainless Steel
Quality 316Ti (1.4571) X6CrNiMoTi17-12-2
Tensile strength 485 MPa
Yield strength, (0.2%) 170 MPa
Hardness, Rockwell (HB) -

Stainless steel pipe dimension as per astm & weight

Nominal Outside Diameter Sch 5S Sch 10S Sch-40S Sch-80S Sch-160S Sch-XXS
mm inch mm WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt)
3 1/8 10.3 1.24 0.276 1.24 0.28 1.73 0.37 2.41 0.47 - - - -
6 1/4 13.7 1.24 0.390 1.65 0.49 2.24 0.631 3.02 0.80 - - - -
10 3/8 17.1 1.24 0.490 1.65 0.63 2.31 0.845 3.20 1.10 - - - -
15 1/2 21.3 1.65 0.800 2.11 1.00 2.77 1.27 3.75 1.62 4.75 1.94 7.47 2.55
20 3/4 26.7 1.65 1.03 2.11 1.28 2.87 1.68 3.91 2.20 5.54 2.89 7.82 3.63
25 1 33.4 1.65 1.30 2.77 2.09 3.38 2.50 4.55 3.24 6.35 4.24 9.09 5.45
32 1 1/4 42.2 1.65 1.65 2.77 2.70 3.56 3.38 4.85 4.47 6.35 5.61 9.70 7.77
40 1 1/2 48.3 1.65 1.91 2.77 3.11 3.68 4.05 5.08 5.41 7.14 7.25 10.16 9.54
50 2 60.3 1.65 2.40 2.77 3.93 3.91 5.44 5.54 7.48 8.74 11.1 11.07 13.44
65 2 1/2 73.0 2.11 3.69 3.05 5.26 5.16 8.63 7.01 11.4 9.53 14.9 14.2 20.39
80 3 88.9 2.11 4.51 3.05 6.45 5.49 11.30 7.62 15.2 11.1 21.3 15.24 27.65
100 4 114.3 2.11 5.84 3.05 8.36 6.02 16.07 8.56 22.3 13.49 33.54 17.12 41.03
125 5 141.3 2.77 9.47 3.40 11.57 6.55 21.8 9.53 31.97 15.88 49.11 19.05 57.43
150 6 168.3 2.77 11.32 3.40 13.84 7.11 28.3 10.97 42.7 18.2 67.56 21.95 79.22
200 8 219.1 2.77 14.79 3.76 19.96 8.18 42.6 12.7 64.6 23.0 111.2 22.23 107.8
250 10 273.1 3.40 22.63 4.19 27.78 9.27 60.5 12.7 96.0 28.6 172.4 25.40 155.15
300 12 323.9 3.96 31.25 4.57 36.00 9.52 73.88 12.7 132.0 33.32 238.76 25.40 186.97
350 14 355.6 3.96 34.36 4.78 41.3 11.13 94.59 19.05 158.08 35.71 281.70 - -
400 16 406.4 4.19 41.56 4.78 47.29 12.7 123.30 21.41 203.33 40.46 365.11 - -
450 18 457.2 4.19 46.80 4.78 53.42 14.27 155.80 23.8 254.36 45.71 466.40 - -
500 20 508.0 4.78 59.25 5.54 68.71 15.09 183.42 26.19 311.2 49.99 564.68 - -
600 24 609.6 5.54 82.47 6.35 94.45 17.48 255.41 30.96 442.08 59.54 808.22 - -
